Door ADS 60

The Schüco Door ADS 60 is the economical solution for entrances where the focus is not on thermal insulation; for example, in warmer climates, for interior use or in public buildings. The different options for integration in the building security and building management system mean that the doors are versatile and can be used economically. They coordinate ideally with the Schüco AWS 60 window system, which can then be integrated seamlessly in the façade.

Automatic door seal Easy-access solutions Leaf-enclosing infill Radio control Integration in building management system Emergency fittings

  • Can be integrated in Schüco Facade Sytsems
  • Use with systems in the Schüco AWS series
  • Use of identical components for different basic depth to reduce the number of components and to simplify logistics and storage
  • Range of fittings tailored to the individual series
  • Adjustable sill


System basic depth
  • 60 mm
Min. face width
  • 147 mm
Uf value of frame (≥)
  • 2.6 W/(m²·K)
Max. glass/panel thickness
  • 40 mm
Air permeability
  • Class 2
  • Class 5A
Burglar resistance
  • Up to RC2
Wind load resistance
  • Class C3
CE marking
  • Ja
Max. vent weight
  • 150 kg
Area of application
  • External use
  • Commercial projects
Proof of durability
  • Class 5
Min.-max. glass/panel thickness
  • 4…40 mm
Barrier-free (≤) 20 mm
  • Ja
Mechanical strength
  • Class 3
Impact resistance
  • Class 1
  • Aluminium
  • Thermally insulated
  • Framed look
  • Increased security
Max. height
  • 2500 mm
Max. width
  • 1100 mm
Ud value of door (≥)
  • 1.6 W/(m²·K)
Min.-max. height
  • …2500 mm
Min.-max. width
  • …1100 mm
Behaviour between different climates
  • Class 3(d),3(e)
Opening type
  • Inward and outward
Type of design
  • Single-vent
  • Double-vent
  • Single-vent and side section
  • Double-vent and side section
  • Single-vent with toplight
  • Double-vent with toplight
  • Single-vent with toplight and side section
  • Double-vent with toplight and side section
  • Single-vent with side section, right
  • Single-vent with side section, left
  • Single-vent with side section, right and left
  • Single-vent with side section and toplight
  • Double-vent with side section, right
  • Double-vent with side section, left
  • Double-vent with side section, right and left
Door threshold
  • Aluminium
  • PVC-U
  • Automatic door gasket
  • Flat door threshold
Vent option
  • Flush-fitted
  • All around
  • Sill rail profile
  • Adjustable sill
Special applications
  • Swing door
  • Flush-fitted
Fittings installation
  • Barrel hinge
DIN direction
  • DIN LH / RH
Door swing
  • Sheet metal clad door
  • Swing door
  • Flush-fitted
Thick door leaf
  • 38 mm
Fitting material
  • Aluminium
Neutral-colour fitting
  • Ja

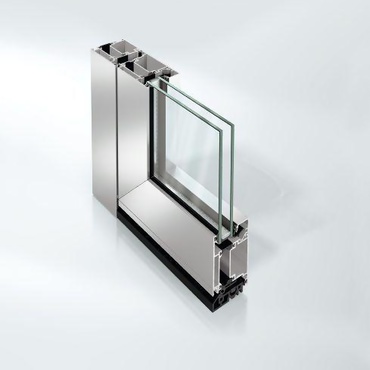

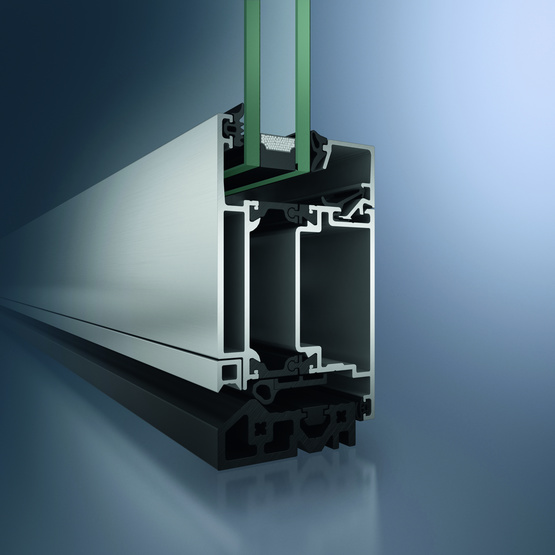

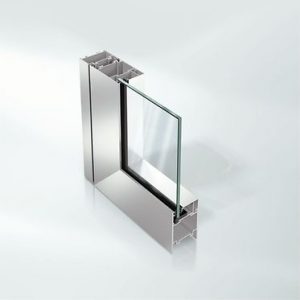

Schüco ADS 60, thermally insulated aluminium door system
With 60 mm basic depth.

Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.
The door leaves must have a four-sided mitre-cut leaf profile.
The door leaf profiles are fitted with thermal breaking split insulating bars.
The system must be fitted with square glazing beads.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.

Profile basic depths:
Outer frame, mullion, transom 60 mm
Leaf frame (door), flush-fitted 60 mm

Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 69 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
Meeting stile profile 65 mm
Leaf mid-rail 94 mm
