- Can be integrated in Schüco Facade Sytsems
- Use with systems in the Schüco AWS series
- Use of identical components for different basic depth to reduce the number of components and to simplify logistics and storage
- Range of fittings tailored to the individual series
- Adjustable sill
TECHNICAL INFORMATION
- System basic depth
-
- 50 mm
- Min. face width
-
- 147 mm
- Uf value of frame (≥)
-
- 3.5 W/(m²·K)
- Max. glass/panel thickness
-
- 32 mm
- Air permeability
-
- Class 2
- Watertightness
-
- Class 4A
- Burglar resistance
-
- Up to RC2
- Wind load resistance
-
- Class C3
- CE marking
-
- Ja
- Max. vent weight
-
- 150 kg
- Area of application
-
- External use
- Residential projects
- Commercial projects
- Proof of durability
-
- Class 5
- Min.-max. glass/panel thickness
-
- 4…32 mm
- Barrier-free (≤) 20 mm
-
- Ja
- Mechanical strength
-
- Class 3
- Concealed fittings system
-
- Ja
- Impact resistance
-
- Class 1
- SYSTEM / MATERIAL
-
- Aluminium
- ENERGY
-
- Thermally insulated
- DESIGN
-
- Framed look
- Max. height
-
- 2500 mm
- Max. width
-
- 1100 mm
- Min.-max. height
-
- …2500 mm
- Min.-max. width
-
- …1100 mm
- Opening type
-
- Inward and outward
- Type of design
-
- Single-vent
- Double-vent
- Single-vent and side section
- Double-vent and side section
- Single-vent with toplight
- Double-vent with toplight
- Single-vent with toplight and side section
- Double-vent with toplight and side section
- Single-vent with side section, right
- Single-vent with side section, left
- Single-vent with side section, right and left
- Single-vent with side section and toplight
- Double-vent with side section, right
- Double-vent with side section, left
- Double-vent with side section, right and left
- Door threshold
-
- Aluminium
- PVC-U
- Automatic door gasket
- Flat door threshold
- Vent option
-
- Flush-fitted
- All around
- Sill rail profile
- Special applications
-
- Flush-fitted
- Infill type
-
- Insert panel infill
- Door infill, leaf enclosing on one side
- Fittings installation
-
- Barrel hinge
- Surface-mounted door hinge
- Concealed door hinge
- DIN direction
-
- DIN LH / RH
- Door swing
-
- Sheet metal clad door
- Flush-fitted
- Electric strikes
-
- Ja
- Thick door leaf
-
- 38 mm
- Fitting material
-
- Aluminium
- Neutral-colour fitting
-
- Ja
- Top / bottom door closers
-
- Nein
SPECIFICATION TEXTS/PREVIEW SPECIFICATION

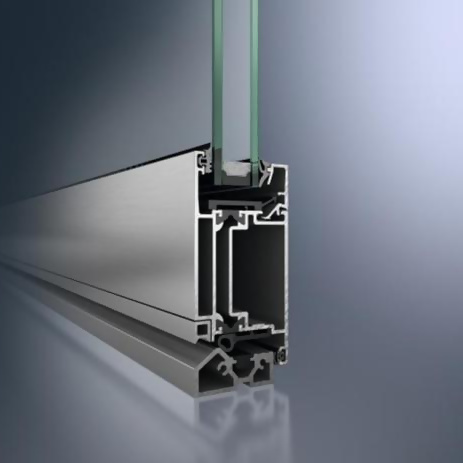

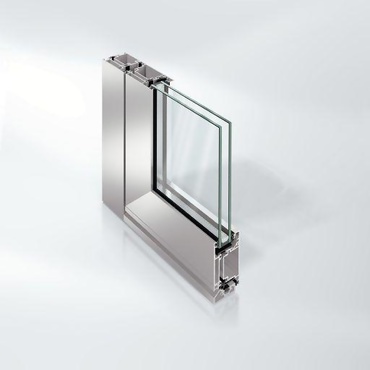

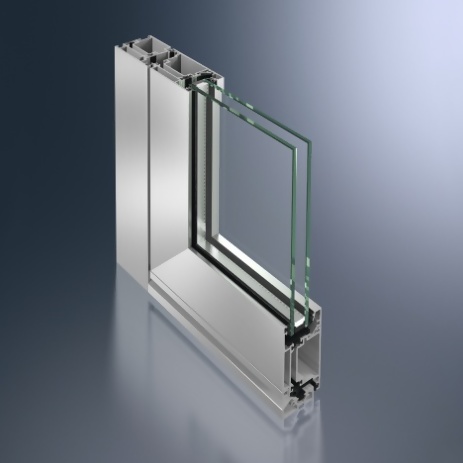

Schüco ADS 50, thermally insulated aluminium door system
With 50 mm basic depth.
Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.
Profile basic depths:
Outer frame, mullion, transom 50 mm
Leaf frame (door), flush-fitted 50 mm
Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 69 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
Meeting stile profile 65 mm
Leaf mid-rail 94 mm
CAD DATA
-
Door profile with integral rebate inward opening
-
Door profile with inserted rebate inward opening
-
Door sidelight or toplight
-
Inward opening door section details, outer frame face width 69 mm
-
Fixed glazing with outer frame 69 mm face width
