Fabrication benefits

  • flexible application possibilities due to system compatibility
  • simple profile geometry for easy joining
  • Large-chamber door profiles for large backsets and hardware components prevent profile doubling
  • Completely CE-approved system according to DIN EN 14351-1

Technical information

System basic depth60 mm
Uf value of frame (≥)2.2 W/(m²·K)
Max. height3000 mm
Max. width1465 mm
Max. glass/panel thickness34 mm
Area of applicationExternal use, Residential projects, Residential projects, Commercial projects, Doors
Air permeabilityClass 4
WatertightnessClass 4A
Wind load resistanceClass C4
Burglar resistanceUp to RC3
Ud value of door (≥)1.1 W/(m²·K)
Max. vent weight230 kg
Min.-max. height1915…3000 mm
Min.-max. width640…1465 mm
Max. clear opening dimension (w x h)2870 x 2985 mm
Min. clear opening dimension (w x h)600 x 1900 mm
Min. face width132.5 mm
Min.-max. glass/panel thickness15…34 mm
Barrier-free (≤) 20 mmYes
Zero-level thresholdYes
Thick door leaf60 mm
Type of designSingle-vent, Double-vent, Single-vent with toplight and side section, Double-vent with toplight and side section
Vent optionFlush-fitted, Insert panel infill, Anti-finger-trap door, Finger-trap protection
Infill typeInsert panel infill
Door thresholdAutomatic door gasket, Flat door threshold, Easy-access door threshold
Special applicationsAnti-finger-trap door
Fitting materialSteel, Stainless steel
Concealed fittings systemYes
Neutral-colour fittingYes
Fittings installationSurface-mounted door hinge, Concealed door hinge, Barrel hinge
Electric strikesYes
With panic functionYes
Finger-trap protectionYes
Opening typeInward and outward, Single and double-vent
DIN directionDIN LH / RH
Door swingFlush-fitted
Mechanical strengthClass 4
Proof of durability1,000,000 in accordance with DIN EN 12400
Max. sound reduction Rwp45 dB(A)
Security systemYes
Top / bottom door closersYes
Door closer typeTop closers, Floor springs
CE markingYes

Specification texts

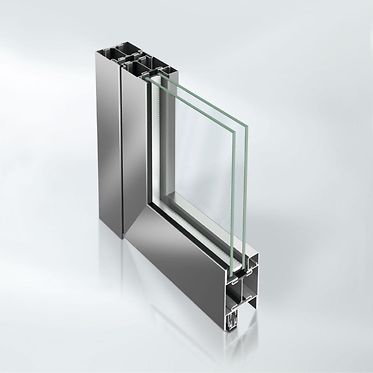

Janisol stainless steel door
Bullet-resistant FB 4 NS in accordance with DIN EN 1522 / 1523
Thermally insulated stainless steel profile system for doors, material 1.4401, with a basic depth of 60 mm.

Design features:
All corner and T-joints are securely welded together.
The surface of the profiles is sheet metal, the visible surfaces are polished.
The stainless steel glazing retention beads are supplied in a sheet metal design; the visible surfaces are polished.
The high-quality insulating bar securely joins the half profiles together. It withstands the short-term temperature increases during welding.
In the case of door units with bullet-resistant requirements, the fabrication instructions from the system provider must be observed.
Glass and/or infills of 14 mm to 40 mm can be used.
Door leaves flush-fitted inside and outside with a 5 mm shadow gap on all sides.
Double, continuous rebate weatherstrip on three sides. Transition to automatic floor seal without using special seals.
Continuous thermal insulation level within the entire construction, even in corner and sash bar areas. No thermal bridging in the area of the lock and fittings kits.
The infill is sealed in using double-sided tape and sealing is by means of permanently elastic sealing compound.

Profile depths:
Outer frame, mullion, transom 60 mm
Leaf frame (door) 60 mm

Profile face widths:
Outer frame (door) 65 mm
Outer frame (glazing) 72.5 mm
Sill rail profile (glazing) 72.5/95 mm
Mullion 95 mm
Transom 95 mm
Leaf frame (door) 65 mm
Sill rail profile (door) 72.5/95 mm
