Façade AOC 60 TI

Passive-house certification for add-on construction on steel (ST) and timber (TI) with outstanding performance characteristics

With the façades systems, skylight constructions and large vertical façades are easy to manufacture to passive house standard. The Uf values of the system construction on steel and timber are as low as 0.8 W/(m²K) (including screw factor) and match the stringent requirements of the Passive House Institute in Darmstadt.

For triple glazing in particular, large pane dimensions can be accommodated easily for the add-on construction in terms of load transfer and screw guide owing to innovative and patented system articles.

In the sensitive roof area in particular, the innovative sealing system ensures maximum thermal insulation with optimised fabrication thanks to an integrated screw guide.

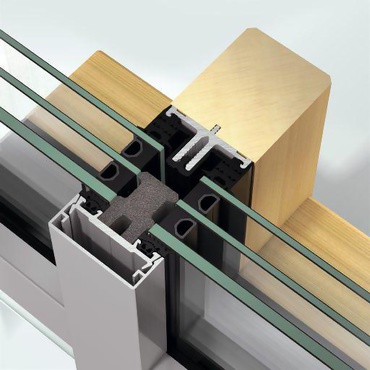

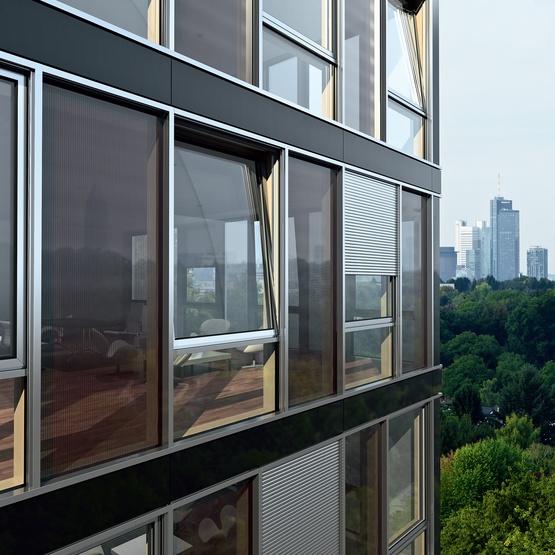

The Schüco AOC add-on construction with 50 mm and 60 mm system widths on steel (ST) and timber (TI) combines energy-efficient construction with efficient fabrication and installation.

หมวดหมู่:

FABRICATION BENEFITS

  • Sealing components without use of sealant in the vertical façade for efficient and secure installation
  • Short fabrication times compared to the use of stud welding to steel substructures approved by the building authorities
  • Infill thicknesses between 6 mm and 64 mm can be used. Secure and efficient thanks to patented screw guide
  • Roof area with butyl tape sealing and integrated screw guide for maximum installation reliability
  • Special basic profiles with positioning guide are available for timber fabricators

TECHNICAL INFOS

Min. face width
  • 60 mm
Uf value of frame (≥)
  • 1.04 W/(m²·K)
Max. glass/panel thickness
  • 64 mm
Max. sound reduction Rwp
  • 51 dB(A)
Air permeability
  • AE 1350
Watertightness
  • RE 1350
Burglar resistance
  • Up to RC3
Wind load resistance
  • 2.0/3.0 [kN/m²]
CE marking
  • Ja
Surface finishes
  • Powder
  • Anodised
  • Paint
Min.-max. glass/panel thickness
  • 8…64 mm
Certificates
  • Passive house certificate
Suitable for safety barrier loading
  • Ja
Impact resistance
  • I5/E5
SYSTEM / MATERIAL
  • Aluminium
FAÇADE TYPE
  • Add-on construction
  • Mullion-Transom-Façade
ENERGY
  • Thermally insulated
DESIGN
  • Appearance of a cover cap
Max. weight
  • 280 kg
Min.-max. face width
  • 60 mm
Min. glass/panel thickness
  • 8 mm
Face width of pressure plate / cover cap profile
  • 60 mm
Face width, outside
  • 60 mm
Face width, inside
  • 60 mm
Face width of mullion
  • 60 mm
Face width of frame
  • 60 mm
Face width of transom
  • 60 mm
Building authority approval
  • Ja
Standards
  • DIN EN 13830
  • General building authority approval
  • DIN EN 1627
Installation angle
  • 2-105°
Spandrel safety barriers
  • Surface-mounted
  • Façade-mounted
Drainage
  • Ja
Drainage levels
  • 3
Passive house compliant
  • Ja
Recyclable
  • Ja
Sun shading attachment
  • Ja
Skylight construction
  • Ja
Polygon façade angle
  • 20°
Skylight construction, min. vert. incline
Skylight construction, max. vert. incline
  • 105°
Skylight construction, min.-max. vert. incline
  • 2…105°
Max. unit weight
  • 280 kg
Max. glass/infill weight
  • 280 kg
