Façade System AF UDC 80 CV

Highly transparent unitised façade with concealed opening units

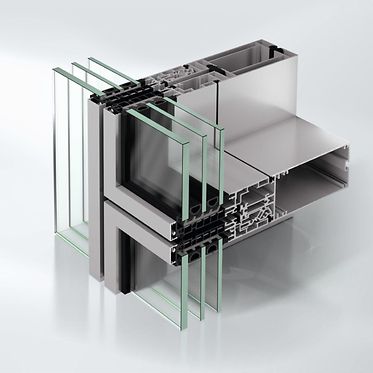

The Schüco AF UDC 80 CV (Aluminium Façade Unitized Dynamic Construction Concealed Vent) façade system sets new standards for unitised façades with high functionality: concealed projected top-hung or parallel-opening windows with an overall face width of only 80 mm, concealed in the load-bearing structure, ensure maximum façade transparency.

As part of the Schüco AF UDC 80 system platform for aluminium unitised façades, the dynamic system with its scalable and tested assemblies offers architects, specifiers and fabricators an easy way to construct building projects with unitised constructions and a wide range of use and design options based on efficient planning and fabrication.

The flexibility with maximum system reliability facilitates optimum use of system components even for adapted, project-specific unitised façade constructions.

The product portfolio of the system with 80 mm profile face width also allows large-scale concealed units to be designed with high weights.

A further benefit for designing functional building envelopes is that, from the outside, the façade is identical to the Schüco AF UDC 80 unitised façade system while, from the inside, the only difference between the systems is the window handle.


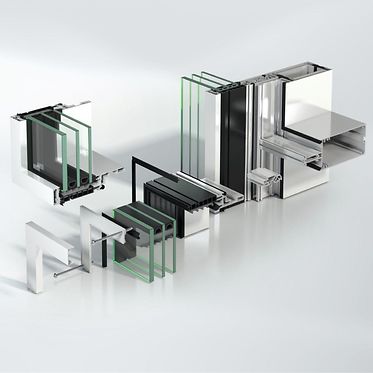

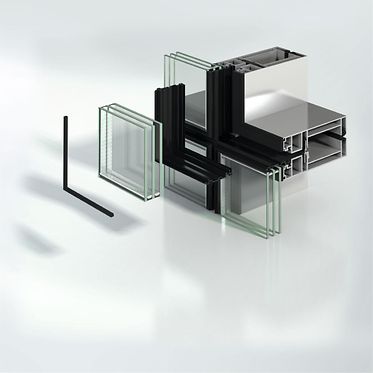

Fabrication benefits

  • Innovative attachment technology ensures fast and simple installation and allows the fittings system to be adjusted
  • Screw-fixing the dimensionally stable multi-chamber isolator in the screw port of the load-bearing structure allows simple and secure installation with high maximum infill thicknesses
  • A high degree of prefabrication in the workshop, including installation and adjustment, ensures fabrication in any weather with the highest machining quality and easy-to-calculate costs
  • Flexible saddle gasket that is supported by profiles and easy to install: reliable joining of the unitised façades on the building
  • System brackets that can be adjusted along three axes for graduated unit weights: precise positioning of the unitised façades

Technical information

Uf value of frame (≥)1.8 W/(m²·K)
Min. face width80 mm
Min.-max. system basic depth180…255 mm
Max. glass/panel thickness70 mm
Max. weight1000 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityAE 1200
Max. sound reduction Rwp0 dB(A)
WatertightnessRE 1650
Impact resistanceI5/E5
Suitable for safety barrier loadingYes
System basic depth255 mm
Min. system basic depth180 mm
Max. system basic depth255 mm
Min. basic depth of mullion180 mm
Max. basic depth of mullion255 mm
Min.-max. basic depth of mullion180…255 mm
Basic depth of frame255 mm
Max. vent width1500 mm
Max. vent height2000 mm
Max. vent weight160 kg
Total width of unit3000 mm
Total height of unit4000 mm
Max. unit weight1000 kg
Min.-max. face width80 mm
Face width of pressure plate / cover cap profile35 mm
Face width, outside80 mm
Face width, inside80 mm
Face width of mullion35 mm
Face width of frame35 mm
Face width of transom35 mm
Min. glass/panel thickness22 mm
Min.-max. glass/panel thickness22…70 mm
Max. width3000 mm
Max. height4000 mm
Max. glass/infill weight160 kg
Butt joint width10 mm
Horizontal joint flexibility10 mm
Vertical joint flexibility5 mm
Installation angle90°
Concealed opening unitYes
Wind load resistance2.5/3.75 [kN/m²]
Sun shading attachmentNo
StandardsDIN EN 13830
