Façade System AF UDC 80

Dynamic unitised façade with high degree of design freedom

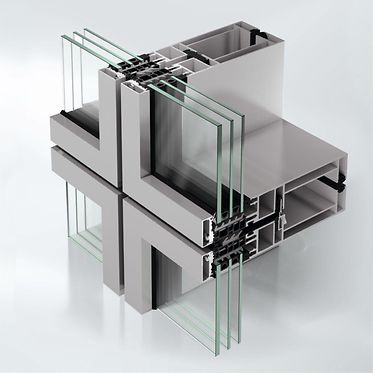

The Schüco AF UDC 80 (Aluminium Façade Unitized Dynamic Construction) is part of the Schüco AF UDC 80 system platform for aluminium unitised façades. With its scalable and tested assemblies, the dynamic system offers architects, specifiers and fabricators an easy way to construct building projects with unitised constructions and a wide range of use and design options based on efficient planning and fabrication.

The flexibility with maximum system reliability facilitates optimum use of system components even for adapted, project-specific unitised façade constructions.

Another benefit is the high degree of design freedom. The product portfolio of the system comprises various design options with a framed appearance. The continuous profile face width allows for maximum façade transparency.

Cover caps are available as design options; these enable a visually reduced sightline – with the same high load-bearing structure. This means that large-format unit dimensions with high unit weights are possible.

Opaque areas of the unit can be designed with a variety of different materials, such as metal sheets, printed glass and natural stone: it can be flush-fitted or integrated cantilevered in the façade unit to create deep offsets using system attachment components.

In combination with the concealed Schüco AB ZDS textile sun shading that is stable in windy conditions, cooling loads can be reduced in the building while achieving attractive façade architecture thanks to profile-integrated guide tracks.



Fabrication benefits

  • A high degree of prefabrication in the workshop ensures fabrication in any weather with the best machining quality and easy-to-calculate costs
  • Maximum use of identical parts enables efficient fabrication and minimises its complexity with few individual parts and short installation times – even with limited space on site
  • Screw-fixing the dimensionally stable multi-chamber isolator in the screw port of the load-bearing structure allows simple and secure installation with high maximum infill thicknesses
  • Flexible saddle gasket that is supported by profiles and easy to install: reliable joining of the unitised façades on the building
  • System brackets that can be adjusted along three axes for graduated unit weights: precise positioning of the unitised façades

Technical information

Uf value of frame (≥)1.7 W/(m²·K)
Min. face width80 mm
Min.-max. system basic depth130…255 mm
Max. glass/panel thickness70 mm
Max. weight1000 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityAE 1200
Max. sound reduction Rwp0 dB(A)
WatertightnessRE 1650
Impact resistanceI5/E5
Suitable for safety barrier loadingYes
System basic depth255 mm
Min. system basic depth130 mm
Max. system basic depth255 mm
Min. basic depth of mullion130 mm
Max. basic depth of mullion255 mm
Min.-max. basic depth of mullion130…255 mm
Basic depth of frame255 mm
Total width of unit3000 mm
Total height of unit4000 mm
Max. unit weight1000 kg
Min.-max. face width80 mm
Face width of pressure plate / cover cap profile35 mm
Face width, outside80 mm
Face width, inside80 mm
Face width of mullion35 mm
Face width of frame35 mm
Face width of transom35 mm
Min. glass/panel thickness22 mm
Min.-max. glass/panel thickness22…70 mm
Max. width3000 mm
Max. height4000 mm
Max. glass/infill weight1000 kg
Butt joint width10 mm
Horizontal joint flexibility15 mm
Vertical joint flexibility10 mm
Installation angle90°
Drainage levels1
Wind load resistance2.5/3.75 [kN/m²]
Sun shading attachmentYes
Integrated sun shadingYes
Spandrel safety barriersIntegrated, Façade-mounted
Profile-integrated spandrel safety barrierYes
StandardsDIN EN 13830
CWCT certifiedYes
