Façade System FWS 60 CV

Visually perfect integration of window vent and load-bearing structure in the façade

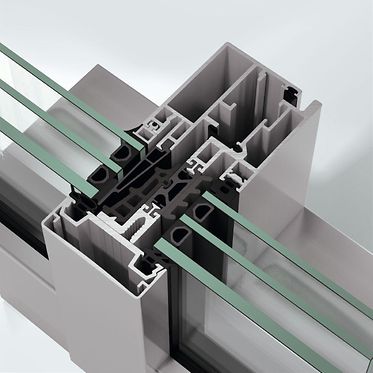

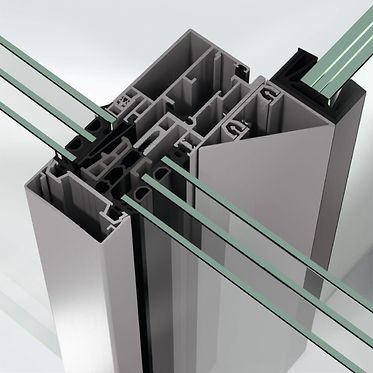

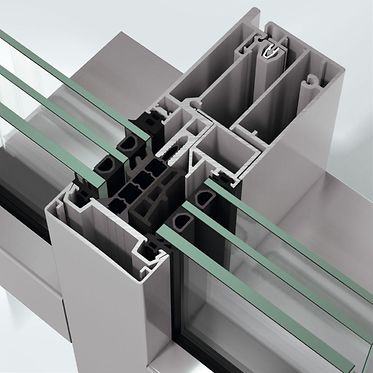

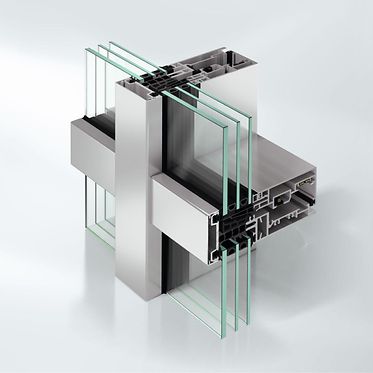

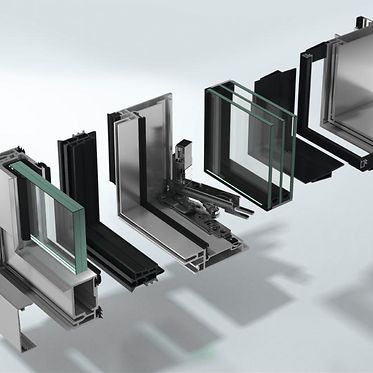

The Schüco FWS 60 CV (Concealed Vent) façade system harmoniously combines slimline face widths with a high degree of functionality and excellent thermal insulation. With a face width of just 60 mm, opening units and fixed fields are indistinguishable from the outside. On the flush, closed inside, only a slender shadow gap and the window handle betray the presence of the window vents.

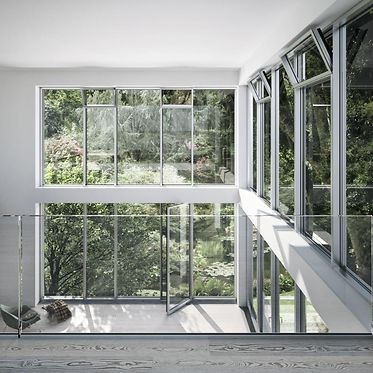

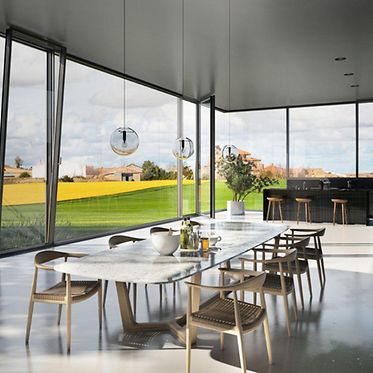

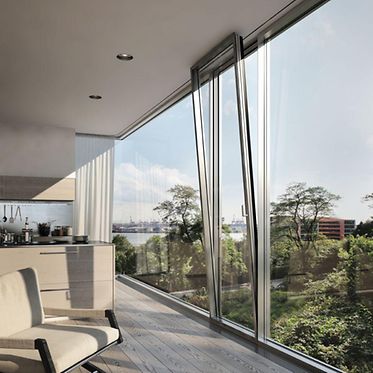

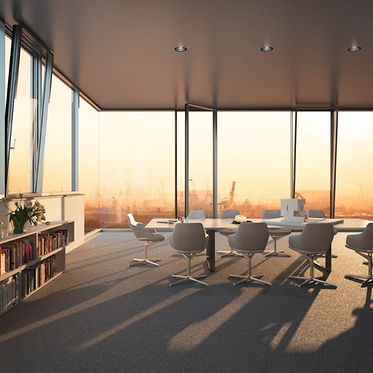

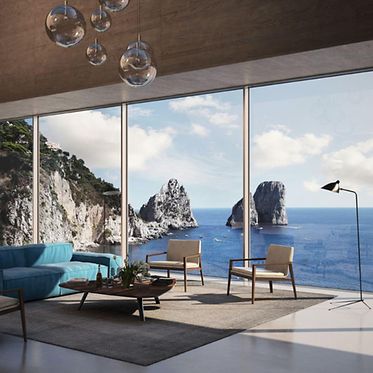

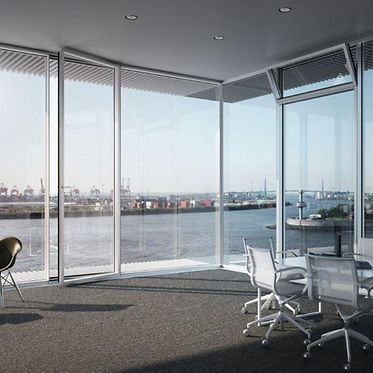

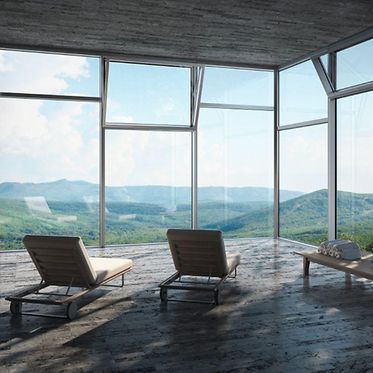

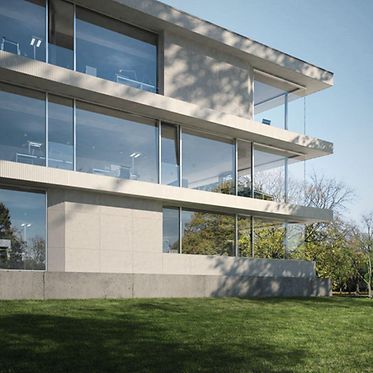

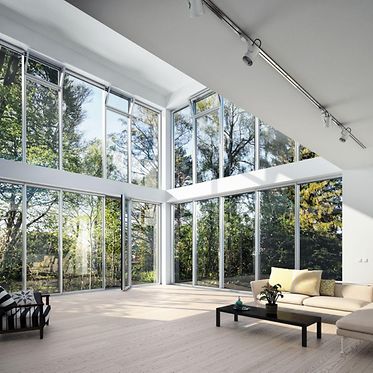

Large unit heights with floor-to-ceiling side-hung and turn/tilt vents ensure maximum façade transparency. Structurally advanced units as well as toplights and bottom lights provide increased design freedom.

A further benefit of the façade system is the integration of automatic ventilation control, e.g. for night-time cooling, which can be implemented with mechatronic vents – even as a bottom-hung vent without a window handle.

With the ribbon window, Schüco is once again fulfilling its obligation to create ecologically sustainable products. The system has been awarded the Bronze “Cradle-to-Cradle Certified™” sustainability label by the independent C2CPII institute in cooperation with EPEA in Hamburg for its recycling properties and minimum toxin content.


Fabrication benefits

  • Prefabricated adapter profiles with acrylic tape for direct bonding of the glass ensure efficient fabrication
  • System-specific, individual system for attachment to building structure: easier installation for a wide variety of different application options
  • Schüco modular system guarantees a high degree of modularity and flexibility

Technical information

Uf value of frame (≥)2.2 W/(m²·K)
Min. face width60 mm
Min.-max. system basic depth65…85 mm
Max. glass/panel thickness50 mm
Max. weight160 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityClass 4
Max. sound reduction Rwp49 dB(A)
WatertightnessE 900​
Impact resistanceClass 5
Burglar resistanceUp to RC2
Suitable for safety barrier loadingYes
Min. system basic depth65 mm
Max. system basic depth85 mm
Min. basic depth of mullion65 mm
Max. basic depth of mullion85 mm
Min.-max. basic depth of mullion65…85 mm
Max. vent width1476 mm
Max. vent height3176 mm
Max. vent weight160 kg
Total width of unit1500 mm
Total height of unit3200 mm
Max. unit weight160 kg
Min.-max. face width60 mm
Face width of pressure plate / cover cap profile60 mm
Face width, outside60 mm
Face width, inside60 mm
Face width of mullion60 mm
Face width of frame60 mm
Face width of transom60 mm
Min. glass/panel thickness22 mm
Min.-max. glass/panel thickness22…50 mm
Max. width1500 mm
Max. height3200 mm
Installation angle90°
Skylight constructionNo
Drainage levels3
Concealed opening unitYes
Wind load resistanceClass C2 / B3
Sun shading attachmentYes
Integrated sun shadingNo
Spandrel safety barriersIntegrated
Profile-integrated spandrel safety barrierYes
Certificatescradle2cradle BRONZE
CE markingYes
StandardsDIN EN 1627, EN 14351, General building authority approval
Building authority approvalYes


Order and fabrication manual 2-2 – Schüco Ribbon Window FWS 60 CV

View onlineDownload

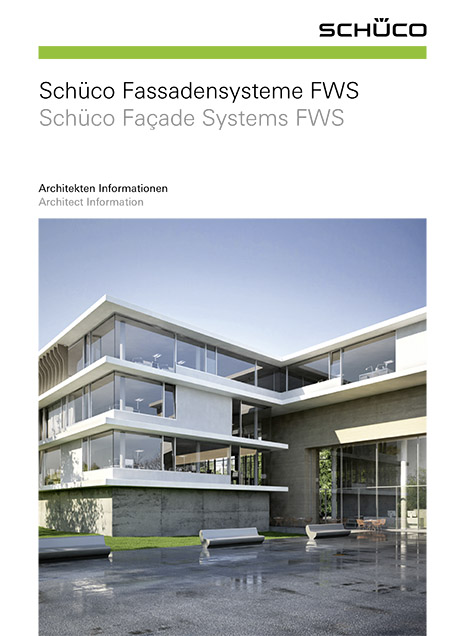

Schüco Façade Systems FWS, FWS 60 CV, FWS 35 PD, FWS 50/FWS 60

View onlineDownload

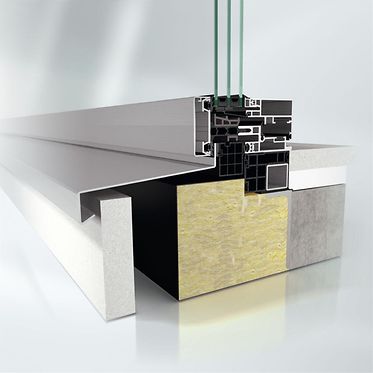

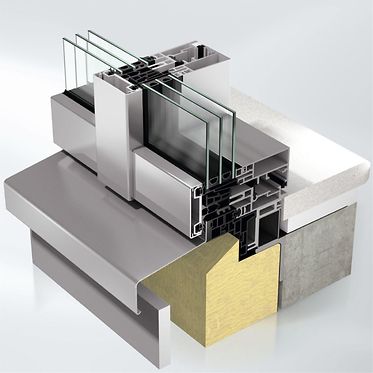

Attachments to building structure

View online

Specification texts

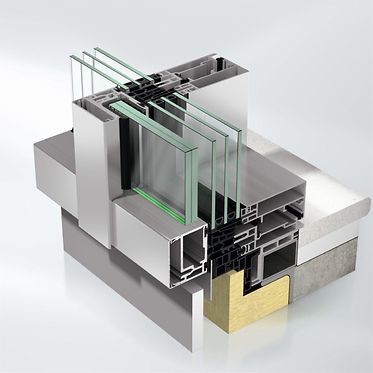

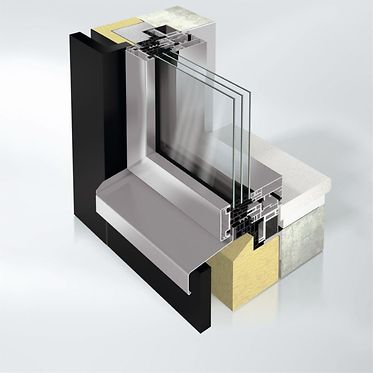

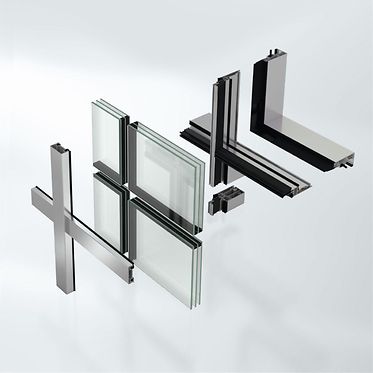

Schüco FWS 60 CV, thermally insulated aluminium façade system with concealed opening units
Similar to a mullion/transom construction with an internal and external face width of 60 mm.

Design features:
The construction must be fitted with HI isolators (isolator with foam profile and microcellular rubber insulating foam) and aluminium pressure plates from the outside to suit the infill thicknesses.

Load-bearing structure:
The vents arranged alternately with the fixed glazed areas and/or spandrel areas cannot be detected from the outside (integrated opening units).

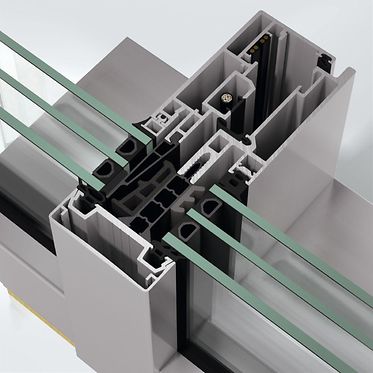

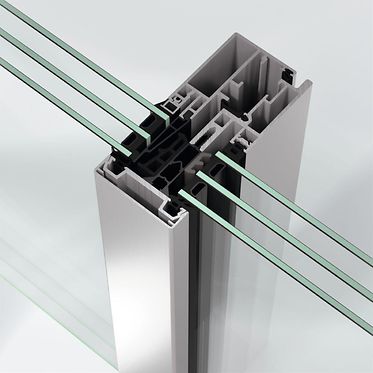

All areas, whether they are fixed fields, opening units, glass or sheet metal panels, appear the same from the outside. On the inside, the outer frame can be differentiated from the vent frame by a 5 mm shadow gap.
The load-bearing profiles are on the room side.
All profile edges are rounded.

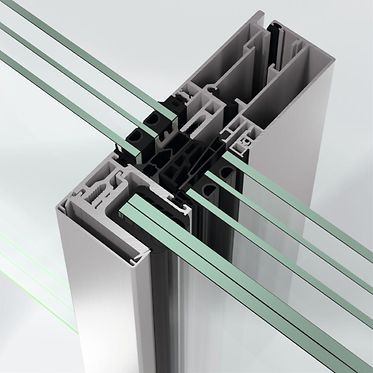

Glazing / opening units:
Glass/infill thicknesses of 22 – 50 mm with a maximum field weight of 160 kg can be integrated into the construction.
All glazing, even in the opening units, lies in the same plane.

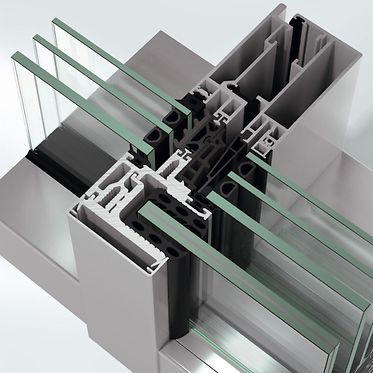

For the opening units, a special pre-fabricated adapter profile with a gasket cord, acrylic tape and a gasket is installed on the profile of the load-bearing structure. This assumes the bonding function between the glass and the façade vent profile. Furthermore, as it has an identical appearance to the glazing rebate gasket, the adapter profile gives the vents and fixed fields an homogeneous look.
Two individual gaskets made from weather-resistant, black EPDM, with a height of 5 mm, are positioned on the outside.

Glazing tolerances:
The glass edge cover of the opening unit is 13 mm on the vent side and 15 mm on the fixed field side. The glass edge cover in the fixed field is 18 mm.
When ordering the glass for the opening unit, the following parameters must also be requested:
A tolerance of +/- 1 mm for the edge length, a tolerance of +/- 2 mm for the diagonals.
Furthermore, the base edge (underside) of the glass must be specified, and it must be ensured that the pane spacer is straight.

Drainage and ventilation
Opening unit: by field
Fixed field: combination of overlap and by field

Face width:
Mullion + transom: 60 mm

Basic depth:
Classic ribbon windows and punched openings: 60 mm up to a height of 2100 mm
Storey-height ribbon windows and punched openings: 85 mm up to a height of 2500 mm
(with special approval up to a height of 2800 mm)

Cover cap (mullion): 15, 20, 50 mm
Cover cap (transom): 12, 15, 45 mm

Safety barrier:
Additionally, a special pressure plate with integrated locating groove for the use of a LSG pane can be mounted in front of the opening units as a “French balcony”.

The profile basic depths must be offered in accordance with the structural requirements and the plan specifications. However, note that a uniform mullion depth is required for all units.

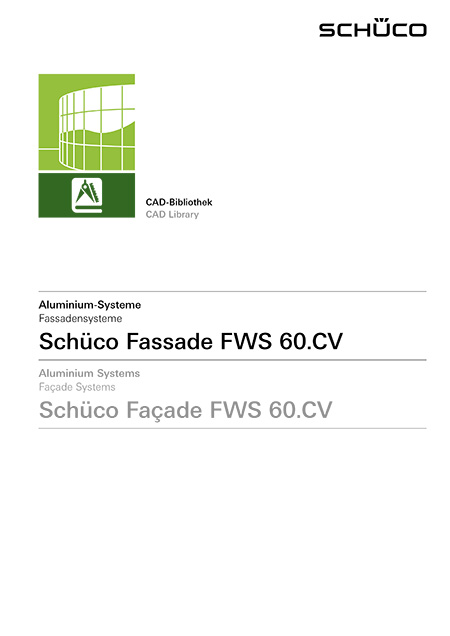

CAD data

Planning principles

View online

System drawings

View online

Rule details

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfzeugnis Stoßfestigkeit View onlineDownload (pdf, 988.6 KB)
Prüfzeugnis Stoßfestigkeit View onlineDownload (pdf, 965.6 KB)
Prüfzeugnis Stoßfestigkeit Tragfähigkeit Öffnungsbegrenze View onlineDownload (pdf, 1.1 MB)
Prüfbericht Schallmessung View onlineDownload (pdf, 3.1 MB)
Prüfbericht Luftdurchlässigkeit
View onlineDownload (pdf, 4.0 MB)
Prüfzeugnis Stoßfestigkeit Absturzsichernde Verglasung Kategorie A View onlineDownload (pdf, 286.0 KB)
Prüfzeugnis Querzugfestigkeit
52,9 N/mm
22 N/mm2
24,4 N/mm
Ruzo +80°
C +80°
View onlineDownload (pdf, 1.4 MB)
Prüfbericht Luftdurchlässigkeit
Widerstand gegen Stat. Verw.
View onlineDownload (pdf, 1.6 MB)
Prüfbericht Wärmedurchgangskoeffizient View onlineDownload (pdf, 5.3 MB)
Gutachterliche Stellungnahme Belastungsprüfung View onlineDownload (pdf, 2.0 MB)
