Façade System SFC 85 SG

Design façade with structural glazing look for maximum transparency

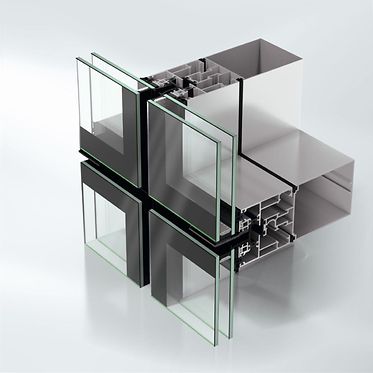

The Schüco SFC 85 SG (Stick Frame Construction Structural Glazing) façade system is a type of all-glass façade with fixed fields flush-fitted in the façade and opening units that cannot be identified as insert units from the outside or the inside. The result: elegant design façades in structural glazing look with maximum transparency and identical face widths for fixed fields and window vents.

The insert units completely integrated in the load-bearing structure can be implemented in particularly large fixed field or vent formats with heavy unit weights.

The tried-and-tested structural glazing façade with double and triple glazing has been approved in Europe by ETA-07-0120.


Fabrication benefits

  • Simple mounting of the fixed fields in the load-bearing structure ensures particularly efficient installation
  • European Technical Approval (ETA-07-0120) is available for the structural glazing façade system

Technical information

Uf value of frame (≥)3.1 W/(m²·K)
Min. face width85 mm
Max. glass/panel thickness55 mm
Max. weight480 kg
Surface finishesPowder, Paint
Air permeabilityAE
WatertightnessRE 1200
Impact resistanceI5/E5
Min. basic depth of mullion19 mm
Max. basic depth of mullion228 mm
Min.-max. basic depth of mullion19…228 mm
Max. vent weight250 kg
Min.-max. face width85 mm
Min. glass/panel thickness28 mm
Min.-max. glass/panel thickness28…55 mm
Max. width2700 mm
Max. height3600 mm
Drainage levels3
Concealed opening unitYes
Wind load resistanceClass C2 / B2
CE markingYes

Test documents

Document type Test type Result Classification Document no. / Download
Zulassung Europ. Zulassung allgemein View onlineDownload (pdf, 5.3 MB)
