AWS 102

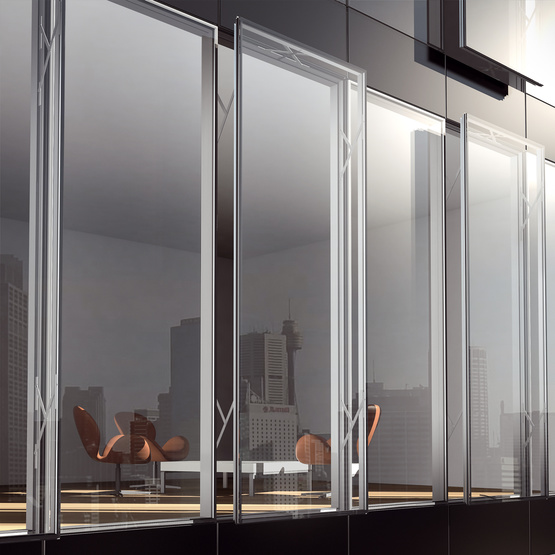

As projected top-hung or parallel-opening windows with large opening sections, the outward-opening Schüco Windows AWS 102 and AWS 102.NI (Non-Insulated) ensure the best possible ventilation. Large-scale dimensions up to max. 2700 mm width and 3600 mm height, and vent weights up to 250 kg are possible. Both system variants are compatible with the following façades systems: Schüco FW 50+ / FW 60*, Schüco FW 50+SG / FW 60+SG, Schüco SMC 50, Schüco USC 65 and Schüco 65 SG

Schüco AWS 102 is available in two design options: with structural glazing for seamless integration in the facade or with a glazing bead for visual emphasis of the insert unit. Three types of glazing are available for the Schüco AWS 102 system:

  • Structural glazing (type A): Stepped insulating glass bonded with silicone or 3M structural glazing tape
  • Structural glazing (type B): Insulating glass with UV-resistant edge seal, unstepped, bonded with silicone
  • Standard insulating glass (type C): with continuous glazing bead
หมวดหมู่:
PRODUCT BENEFITS
  • Comprehensive testing by independent test institutes and in the Schüco Technology Centre
  • Innovative, very finely graded range of fittings for a large number of sizes of manually operated and motorised opening units
  • Ratchet stay – innovative additional fitting for securely fixing and limiting the opening width of manually operated projected top-hung vents with positive or negative wind load
  • Schüco Design handle range – a range of handles for consistent design
