TropTec SC 50.NI

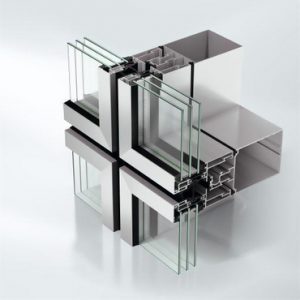

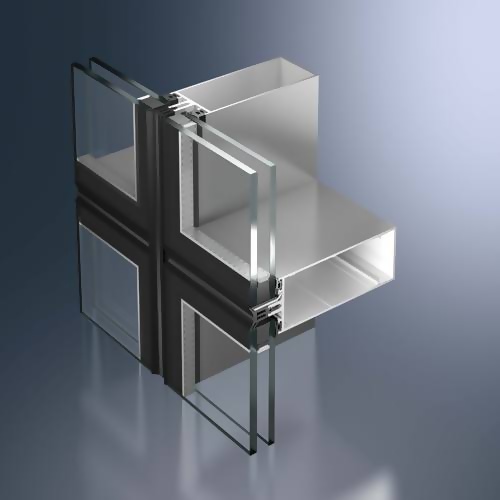

The TropTec SC 50.NI aluminium facade system provides a versatile mullion / transom constructions that combines flexibility and efficient fabrication with a stylish design offering an eye-catching framed look of the facade. An all-glass look is possible with the SG option (TropTec 50 SG.NI). The aluminium facade has been specifically developed to meet the requirements of markets with tropical climates, which makes it perfect in regions with high wind loads and torrential rain.

Compatible with Schüco TropTec façade insert units

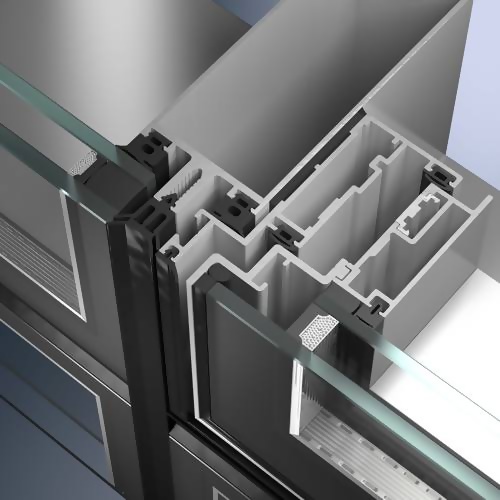

Two different outward-opening, projected top-hung windows can fulfill almost every requirement of any façade project: The Schüco TropTec AW 48.NI insert unit provides a good basis for standard sizes with common fittings whereas the Schüco TropTec AW 58.NI is perfectly suitable for sophisticated façade projects with highest demands.

หมวดหมู่:
PRODUCT BENEFITS
  • Non-insulated aluminium mullion/transom façade system with horizontal and vertical cover caps
  • Exclusive design due to minimal face widths of 50 mm and straightforward profi le geometries
  • System solution for large dimensions and glass loads up to 300 kg
  • Fully suitable façade attachment solution
  • Reliablity and water tightness (720 Pa) due to overlapping drainage principle and three drainage levels
  • Convincing structural performance levels due to high wind load resistance (2650 Pa)
  • Good airborne sound insulation with standard insulating glass

FABRICATION BENEFITS

  • Proven and certified quality due to extended system tests according to American or European test standards
  • Easy assembly with minimal usage of tools
  • Time-saving ladder construction with spring bolt T-cleat
  • Easily mountable pressure plates for mechanical fixing of glass without structural bonding
  • Seamless and hassle-free integration of insert units with perfectly tailored outer frames
  • Short construction times on site due to very few components
  • Step-by-step target specific product documentation
