FABRICATION BENEFITS
- Non-insulated folding sliding system
- Narrow face widths
- Suitable for use in public and residential property
- Can also be used for balcony glazing
TECHNICAL INFOS
- Min. face width
-
- 52 mm
- Uf value of frame (≥)
-
- 1.8 W/(m²·K)
- Max. glass/panel thickness
-
- 44 mm
- Max. vent width
-
- 2700 mm
- Max. vent height
-
- 3600 mm
- Max. sound reduction Rwp
-
- 43 dB(A)
- Air permeability
-
- Class 4
- Watertightness
-
- E 1200
- Burglar resistance
-
- Up to RC2
- Wind load resistance
-
- C5/B5
- CE marking
-
- Ja
- Max. vent weight
-
- 250 kg
- Surface finishes
-
- Powder
- Anodised
- Paint
- Min.-max. glass/panel thickness
-
- 24…44 mm
- Suitable for safety barrier loading
-
- Ja
- Impact resistance
-
- Class 4
- Max. height
-
- 3600 mm
- Max. width
-
- 2700 mm
- Min. system basic depth
-
- 77 mm
- Min.-max. system basic depth
-
- 77…121 mm
- SYSTEM / MATERIAL
-
- Aluminium
- FAÇADE TYPE
-
- Insert units
- ENERGY
-
- Thermally insulated
- DESIGN
-
- Appearance of a cover cap
- Framed look
- Visible vent
- Max. weight
-
- 250 kg
- Blast resistance
-
- No
- AAMA certified
-
- Yes
- Max. system basic depth
-
- 121 mm
- Min.-max. face width
-
- 52 mm
- Min. glass/panel thickness
-
- 24 mm
- Face width of pressure plate / cover cap profile
-
- 40 mm
- Face width, outside
-
- 52 mm
- Face width, inside
-
- 58 mm
- Total width of unit
-
- 2700 mm
- Total height of unit
-
- 3600 mm
- Building authority approval
-
- Ja
- European Technical Assessment
-
- Nein
- Standards
-
- General building authority approval
- DIN EN 1627
- EN 14351
- Installation angle
-
- 90°
- Drainage
-
- Ja
- Drainage levels
-
- 1
- Recyclable
-
- Ja
- Max. unit weight
-
- 250 kg
TENDER SPECIFICATIONS/PREVIEW SPECIFICATION

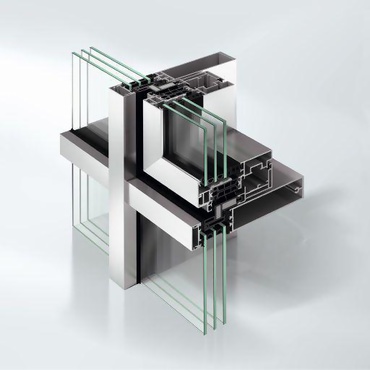

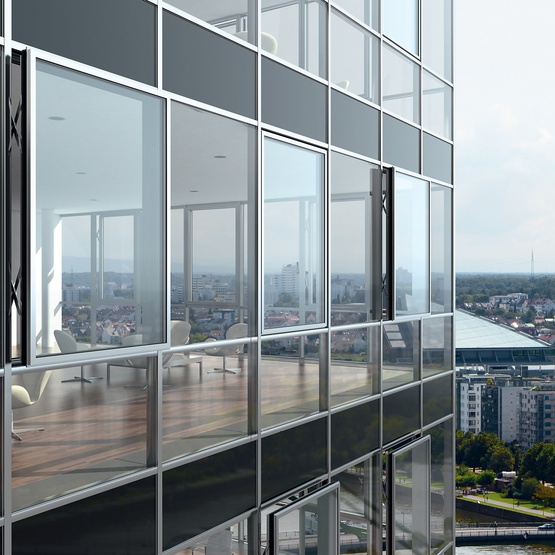

Schüco AWS 102, thermally insulated, aluminium, parallel-opening window, with non-stepped insulating glass and UV-resistant edge seal, bonding at glass position 4
For use in mullion/transom constructions with external cover caps, horizontal and vertical, or with vertical cover caps only or horizontal cover caps only.
Approval:
Due to bonding on position 4 of the insulating glass with the vent frame, project-specific approval is required to bring the product onto the market. National regulations must be observed.
Design features:

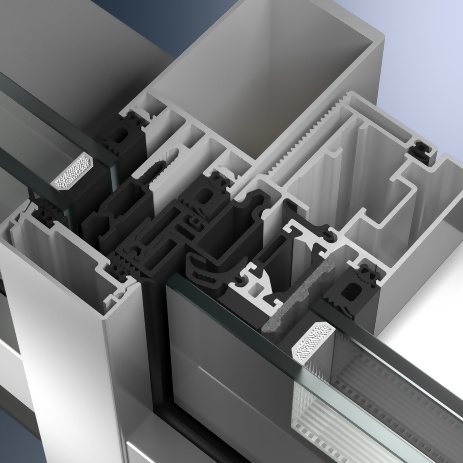

The parallel-opening units consist of a thermally broken insert outer frame with a room-side face width of 31 mm and a vent frame with a face width of 20 mm, for motorised or manual operation.
The basic depth of the vent frames is 93 mm (adhesive surface outside up to inside edge of vent).
The insert outer frame has a plastic profile attached on the outside with a variable supplementary profile depending on the situation.
The top supplementary profile has a soft fin.
The insert units must be fitted with three continuous rebate gaskets.
The vent frames are glazed in the factory with insulating glass.
The side edge of the insulating glass is covered on all sides by a plastic glass frame profile.
Select follow-on text in accordance with the legal provisions.
If units with an installation height > 8 metres are designed, the glazing must also be mechanically secured by means of a glass retention frame.
CAD DATA
-
Mullion and transom sections Cover cap on 4 sides with glazing bead
-
Mullion and transom sections Cover cap on 4 sides with glazing bead
-
Mullion and transom sections Cover cap on 4 sides with glazing bead
TEST DOCUMENTS
| Type of document |
|
Doc. no. / Download | |||||||||||||||||
| Test report |
|
18-004032-PR01-en (pdf, 198 KB) | |||||||||||||||||
| Expert statement |
|
12-001193-PR06_en (pdf, 424 KB) | |||||||||||||||||
| Expert statement |
|
12-002373-PR10_en (pdf, 443 KB) | |||||||||||||||||
| Expert statement |
|
12-001251-PR02 (GAS) (pdf, 4 MB) | |||||||||||||||||
| Expert statement |
|
12-002373-PR11_en (pdf, 557 KB) | |||||||||||||||||
