FABRICATION BENEFITS
- Turn / tilt window tested to EXV 19 (E) in accordance with ISO 16933; tested vent size 1210 x 1840 mm
- Schüco AvanTec concealed fitting
- Extended area of application based on calculations

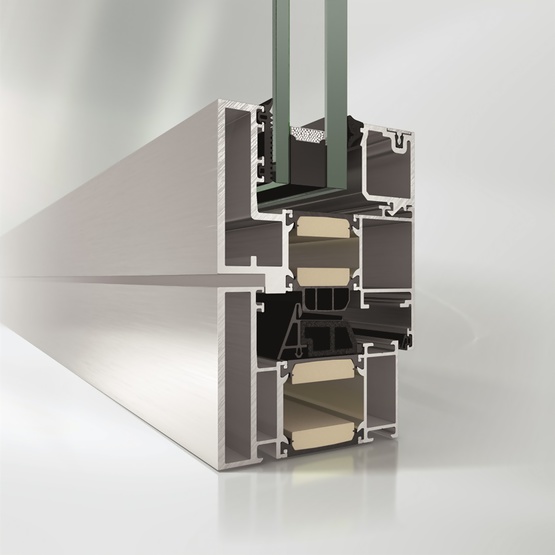

- System approval in accordance with 14351-1 for Schüco AWS 90 XR available as a summary of the relevant system features
- Uf = 1.6 W/(m²K) in accordance with DIN EN ISO 100772
TECHNICAL INFOS
- System basic depth
-
- 90 mm
- Min. face width
-
- 140 mm
- Uf value of frame (≥)
-
- 1.6 W/(m²·K)
- Max. glass/panel thickness
-
- 38 mm
- Air permeability
-
- Class 4
- Watertightness
-
- Class 9A
- E 750
- Burglar resistance
-
- Up to RC3
- Wind load resistance
-
- Class C5 / B5
- CE marking
-
- Nein
- Area of application
-
- External use
- Residential projects
- Commercial projects
- Proof of durability
-
- Class 3
- DIN EN 12400
- Security system
-
- Ja
- Min.-max. glass/panel thickness
-
- 38…38 mm
- Mechanical strength
-
- Class 4
- EN 14351
- Concealed fittings system
-
- Ja
- Blast resistance
-
- Yes
- SYSTEM / MATERIAL
-
- Aluminium
- FUNCTIONS
-
- Increased security
- Blast resistance
TEST DOCUMENTS
| Type of document |
|
Doc. no. / Download | |||||||
| System report |
|
11-002103-PR04 (pdf, 814 KB) | |||||||
