Design
- Generous clear opening dimensions up to 1400 mm x 2488 mm for maximum transparency
- Concealed fittings such as door closers and pre-selectors make for an elegant appearance
- Narrow profile combinations for elegant design options
- System profiles are identical and system fittings are virtually identical to those of Schüco ADS 80 FR 30: uniform design with a wide range of design options
Automation
- Side-hung door drives approved
- Access control systems and emergency exit switches can be implemented
- Use of electric locks possible
Security
- Combination with latch and bolt locks: burglar resistance up to RC 2 can be fabricated economically
- Anti-finger trap protection possible in conjunction with side-hung door drives or in kindergartens
- Combination with fire-resistant façade tested; can be used once granted project-specific approval in Germany
TECHNICAL INFOS
- System basic depth
-
- 80 mm
- Min. face width
-
- 137 mm
- Uf value of frame (≥)
-
- 1.9 W/(m²·K)
- Max. glass/panel thickness
-
- 44 mm
- Max. sound reduction Rwp
-
- 46 dB(A)
- Air permeability
-
- Class 4
- Watertightness
-
- E 750
- Burglar resistance
-
- Up to RC2
- Wind load resistance
-
- B2
- A3
- Area of application
-
- External use
- Residential projects
- Commercial projects
- Internal use
- Proof of durability
-
- DIN EN 12400
- 200,000 cycles in accordance with DIN EN 12400
- DIN 18095
- DIN 4102
- Security system
-
- Ja
- Min.-max. glass/panel thickness
-
- …44 mm
- Mechanical strength
-
- Class 4
- Class 3
- Class 2
- Concealed fittings system
-
- Ja
- Max. height
-
- 2607 mm
- Max. width
-
- 3200 mm
- Min.-max. height
-
- 1725…2607 mm
- Min.-max. width
-
- 610…3200 mm
- Max. clear opening dimension (w x h)
-
- 2820 x 2488 mm
- Min. clear opening dimension (w x h)
-
- 460 x 1648 mm
- Type of design
-
- Single-vent
- Double-vent
- Single-vent and side section
- Double-vent and side section
- Single-vent with toplight
- Double-vent with toplight
- Single-vent with toplight and side section
- Double-vent with toplight and side section
- Single-vent with side section, right
- Single-vent with side section, left
- Single-vent with side section, right and left
- Single-vent with side section and toplight
- Double-vent with side section, right
- Double-vent with side section, left
- Double-vent with side section, right and left
- For use in glazing
- Special applications
-
- Anti-finger-trap door
- Max. weight
-
- 280 kg
- Fire protection
-
- F60
- T60
- EI60
- Smoke protection
-
- SA
- S200
- RS1
- RS2
- Standards
-
- DIN EN 1627
- DIN 4102
- EN 1634
- DIN 18095
- 200,000 cycles in accordance with DIN EN 12400
- EN 1364
- SYSTEM / MATERIAL
-
- Aluminium
- ENERGY
-
- Thermally insulated
- FUNCTIONS
-
- Fire protection
- Smoke protection
- Burglar resistance
- Increased security
- Interior design
- Max. glass size (w x h)
-
- 1400 x 2500 mm
- Use
-
- Door
- Fixed glazing
- Direction of opening
-
- Inward and outward
- Finger-trap protection
- Single and double-vent
- Emergency exit door
-
- Ja
- Basic protection against vandalism
-
- Ja
TENDER SPECIFICATIONS/PREVIEW SPECIFICATION
Schüco ADS 80 FR 60, thermally broken aluminium system for EI 60 fire protection barriers, T 60,
in accordance with EN 1634-1 / 1363-1 / DIN 4102 and EN 1634-3 / DIN 18095
With 80 mm basic depth.
Fire protection barrier (EI 60), T 60-1 RS, approval certificate no.: Z-6.20-2160
Permissible clear opening dimensions, width 460 mm to 1400 mm, height 1648 mm to 2488 mm.
Fire protection barrier (EI 60), T 60-2 RS, approval certificate no.: Z-6.20-2160
Permissible clear opening dimensions, width 940 mm to 2820 mm, height 1648 mm to 2488 mm.
Country-specific approvals or project-specific approval in Germany for the F 60 glazing
(Approval pending)
EI 60 / F 60-minute highly fire-retardant “Schüco ADS 80 FR 60” glazing
Permissible height of the highly fire-retardant glazing = 4000 mm
Permissible width of the fire-retardant glazing = unlimited
Permissible pane dimensions = 1400 x 2500 mm.
“Schüco ADS 80 FR 60” fire protection barrier doors can be installed in F60 glazing.
Project-specific approval required in Germany.

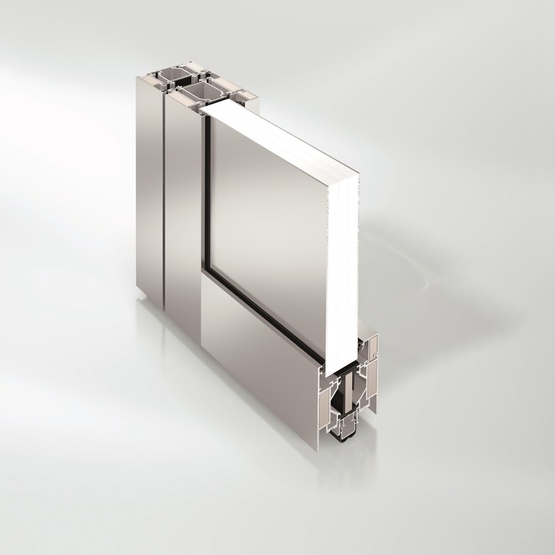

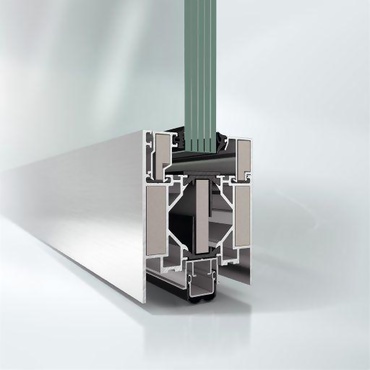

Design features:
5-chamber aluminium hollow profiles.
Special fire boards are used.
All corner and T-joints must be mechanical (nailed) and made using reliable adhesive injection technology.
Multi-purpose groove for push-in fixing of fittings (locks, security pins, electric strike, mounting anchor, barrel hinge).
In the rebate area of the outer/leaf frames, coated intumescent strips are inserted in the multi-purpose groove.
Sill rail or continuous leaf for identical sight lines.
Only fire-resistant glazing tested for the system may be used.
All fire-resistant glass is sealed in using external and internal EPDM gaskets.
Only tested fittings belonging to the system may be used.
The units must be installed in accordance with the guidelines of the general building approval.
The highly fire-retardant doors must be smoke-proof in accordance with EN 1634-3 / DIN 18095.
Profile basic depths:
Outer frame, mullion, transom,
leaf frame, sill 80 mm
Mullion (reinforced) 140 mm
Profile face widths:
Outer frame 59 / 69 / 73 mm
Mullion, transom 84 / 94 / 150 mm
Outer frame extension 34 / 44 mm
Leaf frame (outward-opening door) 98 mm
Leaf frame (inward-opening door) 73 mm
Sill rail 98 mm
Sill 142 mm
TEST DOCUMENTS
| Type of document |
|
Doc. no. / Download | |||||||||||
| Klassifizierungsbericht |
|
18-002403-PR02_EN (pdf, 195 KB) | |||||||||||
