ASS 50.NI

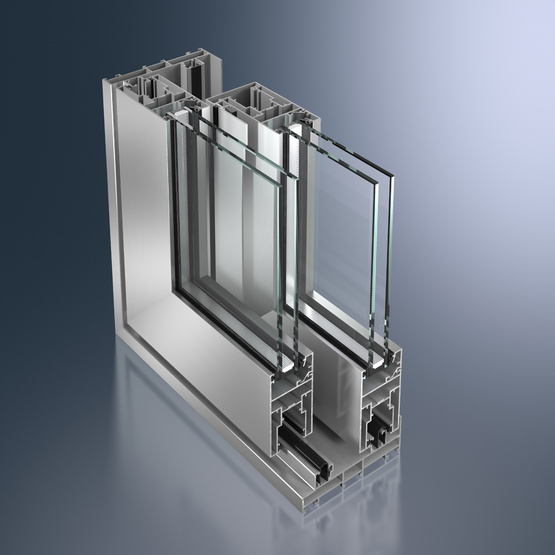

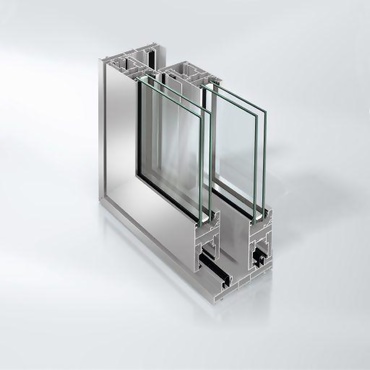

Non-insulated, highly flexible sliding and lift-and-slide system with narrow face widths for large-area glazing units

For indoor areas or regions in which no additional thermal insulation is required, the Schüco ASS 50.NI sliding and lift-and-slide system offers optimal solutions with high transparency. With narrow profile face widths, the non-insulated aluminium construction enables large glass areas with maximum light penetration, whilst requiring a minimum amount of space and generating almost no noise when the sliding units move. Together with a multitude of fittings and handle combinations, and a diverse range of opening types, Schüco ASS 50.NI opens up a wide design spectrum for architects and developers.

Optimised fabrication steps guarantee simple production and efficient installation. Numerous system components round out the system portfolio.

หมวดหมู่:

FABRICATION BENEFITS

  • Optimised glazing beads, glass supports and blocking for efficient installation
  • Outer and vent frames are mitre cut on all corners
  • High-quality, reliable fittings components
  • Highly flexible system through a wide variety of opening types

TECHNICAL INFORMATION

System basic depth
  • 50 mm
Min. face width
  • 84 mm
Max. glass/panel thickness
  • 32 mm
Max. vent width
  • 3000 mm
Max. vent height
  • 3000 mm
Air permeability
  • C
Watertightness
  • Class 7B
Burglar resistance
  • Up to RC2
Wind load resistance
  • Class C5
Max. vent weight
  • 150 kg
Min.-max. vent width
  • …3000 mm
Area of application
  • External use
  • Residential projects
  • Commercial projects
Surface finishes
  • Powder
  • Paint
Min.-max. glass/panel thickness
  • 8…32 mm
Operating forces
  • Class 1
Outer frame face width
  • 120 mm
SYSTEM / MATERIAL
  • Aluminium
ENERGY
  • Non-insulated
System type
  • Sliding systems
  • Lift-and-slide system
TYPE OF DRIVE
  • Manual
Threshold height
  • &lt
  • 20 mm
Opening type
  • Type 2A
  • Type 2A/1
  • Type 2B
  • Type 2D
  • Type 2D/1
Number of tracks
  • Double track
Operating type
  • manual

SPECIFICATION TEXTS/PREVIEW SPECIFICATION

Schüco ASS 50.NI, sliding/lift-and-slide window and door system
Non-insulated sliding and lift-and-slide windows and doors with 120 mm (double track) basic depth
Burglar resistance in accordance with DIN EN 1627, RC 2 (WK2).

Design features:
Designed as a sliding/lift-and-slide construction with two guide tracks.
The bottom, replaceable tracks are made of stainless steel. In the joint area, the outer frames have plastic cover profiles. Vent profiles can have structural reinforcements to suit requirements. Glass thicknesses from 8 mm to 32 mm can be used, rectangular glazing beads.
The frame connections of the outer frame and vent profiles are made with precision corner cleats.

Profile basic depths:
Outer frame 120 mm
Vent frame 50 mm

Profile face widths:
Outer frame, side and top 38 mm
Outer frame, bottom 38 mm
Vent frame (sliding) 89 mm
Vent frame (lift-and-slide) 89 mm

DOWNLOAD

TEST DOCUMENTS

Type of document
Type of test Result
Doc. no. / Download
Product passport
Technical approval nach EN 14351-1
MB1007815_EN-03 (pdf, 636 KB)
