Janisol lift-and-slide Door System

Generous window doors made from the robust Janisol steel profile system create a completely new room experience for the user. Lift-and-slide doors allow interior and exterior areas to be combined into a single space

Despite a comparatively small basic depth of 80 mm and profile face widths of just 85 mm, with the new Janisol steel profile system door leaf sizes up to 4,270 mm wide and 3,210 mm high can be installed as lift-and-slide doors. In the standard design, door leaf weights of up to 400 kg are possible; as a special design with a second drive, weights up to 600 kg are possible.

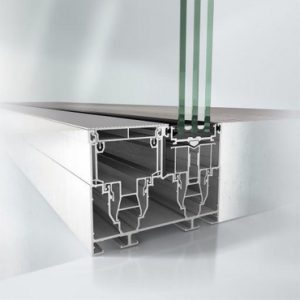

The basic depth allows triple pane thermal insulation glass up to thickness of 57 mm to be installed. Excellent Uw values of up to 0.9 W/(m²K) can therefore be achieved. For optimum thermal insulation, a threshold profile made from glass fibre reinforced PVC-U ensures easy-access threshold installation
