CTB solar shading integrated in FW 50+ / FW 60+façade

Schüco CTB (concealed toughened blind) sun shading is external shading that is integrated into the façade and offers exceptionally high wind stability up to 30 m/s.

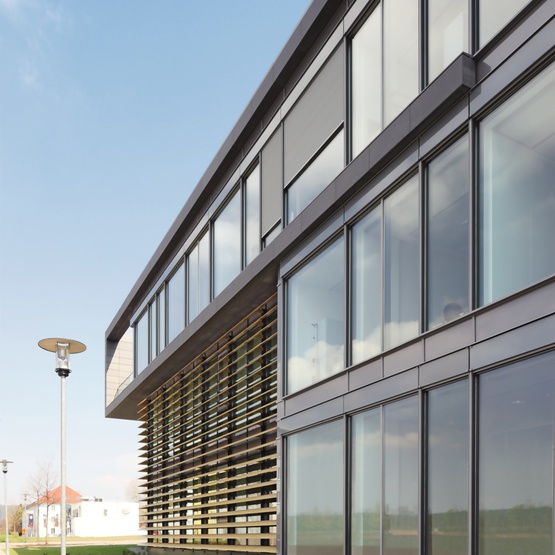

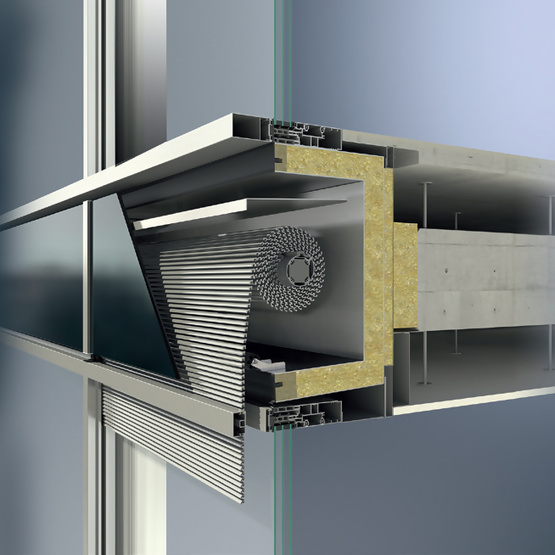

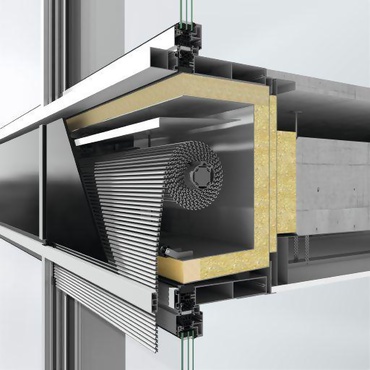

The sun shading is constructed from micro aluminium louvre blades. Optimal shading is possible and at the same time a high level of transparency provides outside views. Operated using a 230 V motor, the awning can be concealed in the façade for a cohesive façade appearance. As a façade-mounted system, Schüco CTB solar shading can also be mounted on Schüco FW 50+ and FW 60+ façades and the Schüco AWS windows system. The extruded aluminium louvre blades can be perfectly incorporated into the external design of the building as their outer surfaces can be anodised.

Schüco CTB solar shading can withstand high wind loads and can be installed almost irrespective of wind conditions. The awning was installed in the Schüco façade and aerodynamically tested in a wind tunnel (Rail Tec Arsenal vehicle testing institute, Vienna). The tests proved not only the wind stability but also correct functioning with wind speeds of up to 30 m/s. That is equivalent to a force 11 wind, a gale-force storm.

The gtotal values for Schüco CTB solar shading were measured by the ift in Rosenheim. Depending on the angle of the sun, the total solar energy transmittance gtotal was calculated. In summer, with the sun at 50º, less than 2% of the sun‘s energy entered the room. This provides effective protection against heat build-up in the rooms and signifi cantly reduces spending on cooling.

Sun shading and façade are inextricably linked on a building. In practice, however, these are two separate constructions, which results in the appearance of a façade being restricted by solar shading headboxes. Schüco CTB solar shading represents a new design option for the façade.It is the first solar shading that is fully integrated into the façade and offers exceptionally high wind stability

Max. height
  • 4000 mm
Max. width
  • 3000 mm
Min.-max. height
  • 1000…4000 mm
Min.-max. width
  • 650…3000 mm
Operating type
  • electric
Power supply
  • 230 V/50 Hz
Installation option
  • Integrated
Min. width
  • 650 mm
Min. height
  • 1000 mm
Max. area
  • 9 m²
  • Aluminium
Profile dimensions
  • 9.3 x 9.6 mm
Wind stability
  • 30 m/s
Louvre blade angle
  • Fixed
Louvre blade type
  • Micro louvre blade
  • Sun shading
  • Protection from heat
  • Screening
