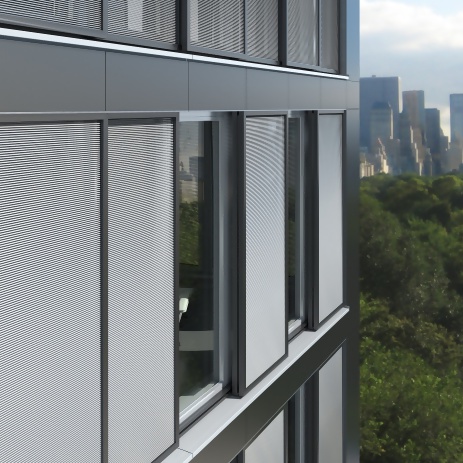

CTB solar shading surface-mounted in front of the FW 50+ and FW 60+ façades

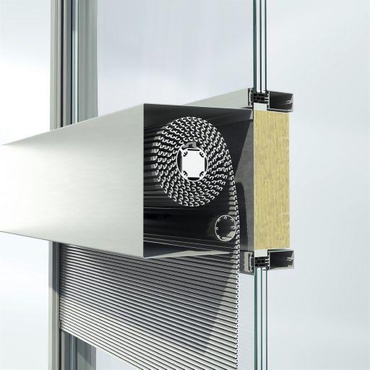

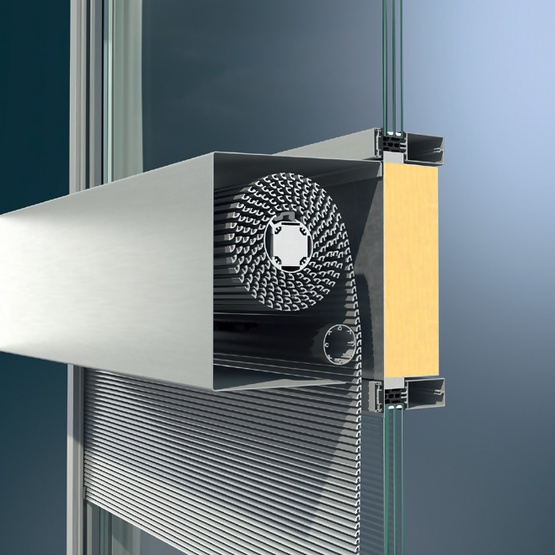

As a façade-mounted version, Schüco CTB is fitted in a solar shading headbox, which is installed in front of the Schüco FWS 50 / FWS 60 façade. The wind-resistant feature blind is turned around quietly and securely by means of a rubber-coated shaft across its entire width.

หมวดหมู่:

TECHNICAL INFORMATION

Max. height
  • 4000 mm
Max. width
  • 3000 mm
Min.-max. height
  • 1000…4000 mm
Min.-max. width
  • 650…3000 mm
Operating type
  • electric
Power supply
  • 230 V/50 Hz
Installation option
  • Façade-mounted
Min. width
  • 650 mm
Min. height
  • 1000 mm
Max. area
  • 9 m²
Material
  • Aluminium
SYSTEM / MATERIAL
SUN SHADING
Profile dimensions
  • 9.3 x 9.6 mm
Wind stability
  • 30 m/s
Louvre blade angle
  • Fixed
Louvre blade type
  • Micro louvre blade
Properties
  • Sun shading
  • Protection from heat
  • Screening
