Ventilation System VentoAir

Self-regulating mechanical fan for the window rebate – invisible protection from damp in residential properties

Schüco VentoAir regulates the necessary ventilation in residential properties, including dehumidification, without any intervention from users, thus enabling the prevention of expensive damage caused by mould, which is hazardous to health. The principle is based on the equalisation of the difference in pressure between outside and inside. In the process, the action of the fan is purely mechanical. In the event of high winds, the ventilator flap automatically regulates the inflowing air, thus preventing unpleasant draughts.

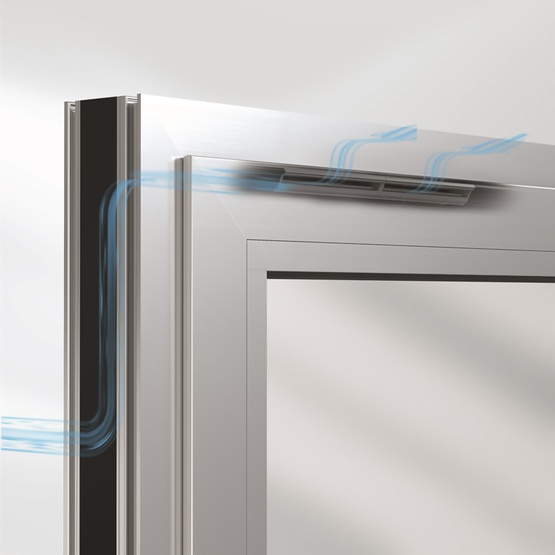

Schüco VentoAir is installed without screw fixings and almost fully concealed in the area of the centre gasket – either horizontally at the top or in the outer frame rebate at the side. The ventilation system can also be used in conjunction with shaft ventilation systems or for cross ventilation and thereby fulfils the minimum requirements for protection from damp.





  • Controlled exchange of air without intervention from users: avoidance of high energy costs


  • Integrated in the window rebate: not visible from the inside or outside
  • Profile basic depths of 65 mm to 75 mm
  • No interference in the building structure, for example openings in masonry
  • Integrated in the window rebate: not visible from the inside or outside
  • Profile basic depths of 70 mm to 75 mm

Enhanced function

  • Suitable for newbuilds and retrofitting
  • Simple ventilation concepts without heat recovery for minimal investment costs
  • Self-regulating flap: no draughts in the event of high wind speeds


Max. sound reduction Rwp
  • 44 dB(A)
Air permeability
  • Class 3
  • Class 9A
Wind load resistance
  • C5/B5
Dimensions (w x h x d)
  • 125 x 27 x 11 mm
Max. air exchange rate
  • 2.3 – 8.7 / 8 Pa
Operating limit
  • – 20 °C
Ventilation type
  • Natural
