FABRICATION BENEFITS

  • Good thermal insulation for basic depth of 7 mm: Uf values of 1.9 W/m²K (face width 89 mm)
  • Concealed vent, very narrow face widths from 67 mm
  • Also available as flush-fitted vent
  • Optional design as “floating window”
  • Enlarged insulation zone with foam-filled insulating bars
  • Comprehensive profile range with mullion face widths of up to 44 mm, double vents and sash bars

TECHNICAL INFORMATION

SYSTEM / MATERIAL
  • Aluminium
ENERGY
  • Highly thermally insulated
DESIGN
  • Block system
FUNCTIONS
  • Decentralised ventilation
  • Increased security
  • Increased sound reduction
  • Easy operation
System basic depth
  • 70 mm
Min. face width
  • 67 mm
Uf value of frame (≥)
  • 1.6 W/(m²·K)
Max. glass/panel thickness
  • 40 mm
Max. vent width
  • 1500 mm
Max. vent height
  • 2200 mm
Max. sound reduction Rwp
  • 45 dB(A)
Air permeability
  • Class 4
Watertightness
  • Class 9A
Burglar resistance
  • Up to RC3
Wind load resistance
  • Class C5 / B5
CE marking
  • Ja
Uw value of window (≥)
  • 0.95 W/(m²·K)
Max. vent weight
  • 160 kg
Min.-max. vent height
  • 490…2200 mm
Min.-max. vent width
  • 450…1500 mm
Area of application
  • External use
  • Residential projects
  • Commercial projects
Proof of durability
  • Class 3
Surface finishes
  • Powder
  • Anodised
  • Paint
Opening type: TipTronic, inward-opening
  • Turn/tilt
  • Side-hung
  • Bottom-hung
  • Toplight
Opening type: manual, inward-opening
  • Turn/tilt
  • Side-hung
  • Bottom-hung
  • Double-vent turn/tilt / side-hung
  • Double-vent side-hung / side-hung
  • Tilt-before-turn
  • Toplight
Min.-max. glass/panel thickness
  • 21…40 mm
Certificates
  • cradle2cradle SILVER
Operating forces
  • Class 2
Mechanical strength
  • Class 4
Suitable for safety barrier loading
  • Ja
Concealed fittings system
  • Ja
Width of vent frame
  • 80 mm
Corrosion protection class for fittings
  • Class 5
Ug value of glass (≤)
  • 0.3 W/(m²·K)
Glass composition
  • Triple glazing
Barrier-free operating forces in accordance with DIN 18040
  • Ja
Total basic depth
  • 80 mm
Colour-independent
  • Ja
TipTronic
  • Ja
Shear bond
  • Ja
Toplight
  • Nein
Drainage levels
  • 3
Integrated sun shading
  • Nein
Security glazing
  • Ja
Opening angle
  • 180°
Outer frame face width
  • 67 mm
Max. face width of mullion
  • 181 mm
Min.-max. face width of mullion
  • 92…181 mm
Max. face width of meeting stile
  • 83 mm
Min.-max. face width of meeting stile
  • 83…83 mm

SPECIFICATION TEXTS/PREVIEW SPECIFICATION

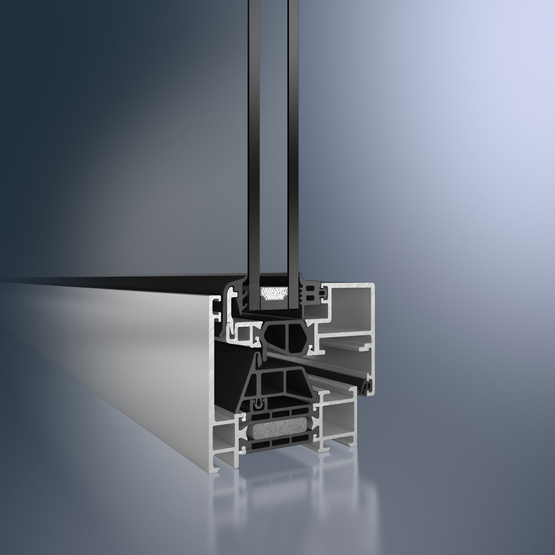

Schüco AWS 70 BS.HI, highly thermally insulated aluminium block window system
With 70 mm basic depth.

Design features:
Integrated system, the vent frames are positioned behind the rebate of the outer frames.
The clear dimension of the opening vents is identical to that of the fixed glazing and/or infill.
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge.
The high-volume hollow chamber profile centre gasket is located in the area of the insulation zone.
The joints of the external glazing retention beads are covered by the glazing gasket, which is designed as a vulcanised gasket frame.
The glazing gaskets with fins on the room side also seal off the glazing rebates.

Profile basic depths:
Outer frame, mullion, transom 70 mm
Vent frame (face-fitted window) 75 mm
Vent frame (flush-fitted window) 65 mm

Profile face widths:
Outer frame, bottom 91.5 mm
Outer frame 66.5 mm
Insert outer frame 50 mm
Mullion 107 mm
Transom 91.5 mm
Double-vent profile 83 mm
