Window Façade AWS 70 WF.HI

The Schüco AWS 70 WF.HI (Window Façade) system is particularly suitable for the low cost construction of ribbon windows.

Window façades are based on the Schüco AWS 70 BS.HI block window solutions. The window façade offers comprehensive design options with cover cap versions, structural mullions and the suggestion of a mullion/transom construction in the external view with a 50 mm face width.

In combination with the Schüco AvanTec and Schüco TipTronic concealed fittings, Schüco AWS 70 WF.HI meets the very highest standards in terms of both design and ease of use.

หมวดหมู่: ป้ายกำกับ:
  • Especially for the economical manufacture of window hinges the appearance of a mullion-transom façade
  • Comprehensive design options through use of cover caps and structural mullions
  • Based on the window vents of the Schüco AWS 70 BS.HI block windows
  • Slender, open and transparent appearance

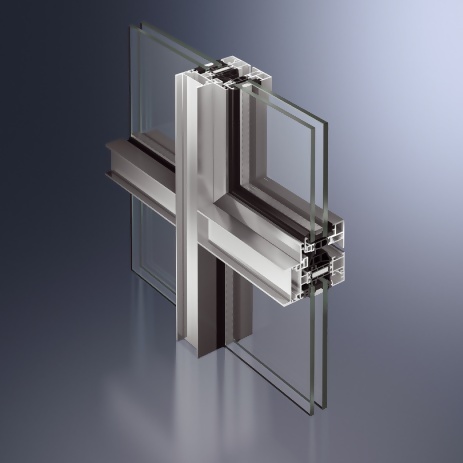

Schüco AWS 70 WF.HI, highly thermally insulated aluminium window façade system
With a basic depth of 70 mm and the characteristics of a mullion/transom construction with 50 mm face width from the outside.

Design features:
The window vents must be designed as an integrated system (block construction).
There are aluminium cover caps on the outside of the outer frames, mullions and transoms.
For increased structural requirements, profiles with reinforcements on the room side are used.
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge.
The high-volume hollow chamber profile centre gasket is located in the area of the insulation zone.
The joints of the external glazing retention beads are covered by the glazing gasket, which is designed as a vulcanised gasket frame.

Profile basic depths:
Outer frame, mullion, transom 70 mm
Vent frame (face-fitted window) 75 mm
Cover cap (mullion) 20 mm
Cover cap (transom) 15 mm

Profile face widths:
Outer frame, bottom 70 mm
Outer frame, side and top 70 mm
Mullion 50 mm
Transom 50 mm
Coupling expansion joint 38 – 6 – 38 mm
Vent adapter profile 27 mm
Cover cap 50 mm
