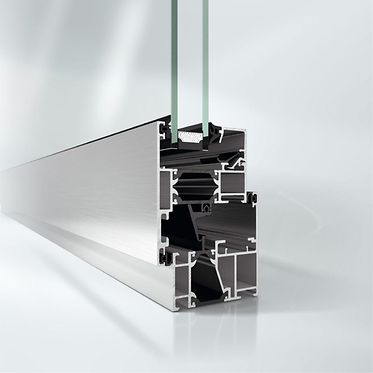

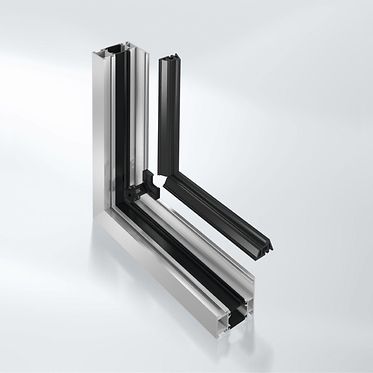

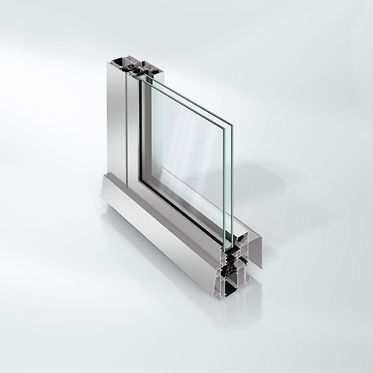

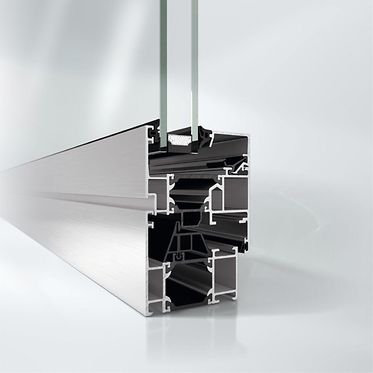

Window System AWS 65

High-quality aluminium system with comprehensive range of solutions

As part of the Schüco AWS system platform, the thermally insulated window system offers an extensive range of solutions for the 65 mm basic depth to meet a variety of building envelope requirements.

It is based on the functional, energy-efficiency and design properties of the aluminium construction: perfectly tailored components combine benefits such as good thermal insulation, narrow face widths and concealed, standard manual or electromechanical fittings for inward and outward-opening windows.

The high level of flexibility of the system enables a wide variety of uses as a punched opening, ribbon window or façade insert unit, as well as in combination with Schüco door systems.

An additional benefit for architects and specifiers is the wide range of opening types such as side-hung and turn/tilt vents, bottom-hung toplights or barrier-free window doors.

An outward-opening window design with centre gasket is also available as a double-vent window with burglar resistance in accordance with test procedure PAS 24.

A wide range of profiles is available within the system platform, including corner mullions, structural mullions, symmetrical and asymmetrical mullions, as well as a number of design variations and additional combination options, such as with Schüco sun shading and ventilation systems.

Schüco AWS 65 thereby sets standards in terms of planning flexibility and offers attractive window solutions for ambitious architecture.

หมวดหมู่:

Technical information

System basic depth65 mm
Min. face width91 mm
Uf value of frame (≥)1.9 W/(m²·K)
Max. glass/panel thickness55 mm
Max. vent width1700 mm
Max. vent height2500 mm
Max. sound reduction Rwp47 dB(A)
Air permeabilityClass 4
WatertightnessClass 9A
Burglar resistanceUp to RC3
Wind load resistanceClass C5 / B5
CE markingYes
Total basic depth75 mm
Width of vent frame75 mm
Max. vent weight250 kg
Min.-max. vent height540…2500 mm
Min.-max. vent width470…1700 mm
Outer frame face width51 mm
Vent frame face width40 mm
Max. face width of mullion250 mm
Min.-max. face width of mullion76…250 mm
Max. face width of meeting stile163 mm
Min.-max. face width of meeting stile148…163 mm
Min.-max. glass/panel thickness11…55 mm
Barrier-free (≤) 20 mmYes
Area of applicationExternal use, Residential projects, Residential projects, Commercial projects
Shear bondYes
Concealed fittings systemYes
Surface finishesPowder, Anodised, Paint
Glass compositionTriple glazing
ToplightYes
Operating forcesClass 1
Barrier-free operating forces in accordance with DIN 18040Yes
TipTronicYes
Opening type: TipTronic, outward-openingProjected top-hung
Opening type: TipTronic, inward-openingTurn/tilt, Side-hung, Bottom-hung, Toplight
Opening type: manual, outward-openingSide-hung, Double-vent side-hung / side-hung, Projected top-hung, Projected side-hung, Horizontal pivot, Vertical pivot
Opening type: manual, inward-openingTurn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Tilt/slide, Toplight, Horizontal pivot, Vertical pivot, Tilt-before-turn
Opening angle180 °
Mechanical strengthClass 4
Proof of durabilityClass 3
Corrosion protection class for fittingsClass 5
Uw value of window (≥)1 W/(m²·K)
Ug value of glass (≤)0.3 W/(m²·K)
Drainage levels3
Integrated sun shadingYes
Security glazingYes
Suitable for safety barrier loadingYes
Certificatescradle2cradle SILVER
Colour-independentYes

Documentation

[B] Schüco AWS 65

View online

[D] Basic depth 65 mm

View online

Order manual 1-3 – Window fittings

View onlineDownload

[Ea] Schüco AWS 65

View online

Specification texts

Schüco AWS 65, thermally insulated aluminium window system
With 65 mm basic depth.

Design features:
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted on the outside.
The high-volume hollow chamber profile centre gasket is located in the area of the insulation zone.
The system must be fitted with square glazing beads.
The glazing beads are installed with plastic clips to compensate tolerances.

Profile basic depths:
Outer frame, mullion, transom 65 mm
Vent frame 75 mm
Vent frame, flush-fitted 65 mm

Profile face widths:
Outer frame, bottom 104 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Vent frame (window) 41 mm
Vent frame (window door) 61 mm

download

CAD data

Planning principles

View online

System drawings

View online

Rule details

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfzeugnis Luftdurchlässigkeit
Windwiderstandsfähigkeit
Schlagregendichtheit

waagrecht / senkrecht

Klasse 4
Klasse C5/B5
E900, 9A / E750, 7A
View onlineDownload (pdf, 225.2 KB)
Prüfzeugnis Dauerlaufprüfung Klasse 3 View onlineDownload (pdf, 129.2 KB)
Prüfbericht Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Klasse 4
Klasse 9A
Klasse C1/B2
View onlineDownload (pdf, 1.2 MB)
Prüfbericht Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Klasse 4
Klasse 9A
Klasse C2/B3
View onlineDownload (pdf, 1.4 MB)
Prüfbericht Luftdurchlässigkeit
Schlagregendichtheit
Windwiderstandsfähigkeit
Klasse 4
Klasse 9A
Klasse C2/B3
View onlineDownload (pdf, 1.3 MB)
Prüfzeugnis Dauerlaufprüfung
Bedienungskraft
Vertikallast
Widerstand gegen Stat. Verw.
20000

800
350

Klasse 3
Klasse 1
Klasse 4
Klasse 4
View onlineDownload (pdf, 217.2 KB)
Prüfzeugnis Dauerlaufprüfung
Bedienungskraft
10000 Klasse 2
Klasse 1
View onlineDownload (pdf, 212.3 KB)
Prüfzeugnis Dauerlaufprüfung
Bedienungskraft
10000 Klasse 2
Klasse 1
View onlineDownload (pdf, 216.3 KB)
Prüfzeugnis Bedienungskraft
Vertikallast
Verbiegen/Verwinden
800
350
Klasse 1
Klasse 4
Klasse 4
View onlineDownload (pdf, 207.8 KB)
Prüfzeugnis Dauerlaufprüfung
Bedienungskraft
Vertikallast
Widerstand gegen Stat. Verw.
20000

800
350

Klasse 3
Klasse 1
Klasse 4
Klasse 4
View onlineDownload (pdf, 215.8 KB)
1-10 of 106

Brochures

Schüco AWS 65

View onlineDownload
