Façade AOC 75.TI

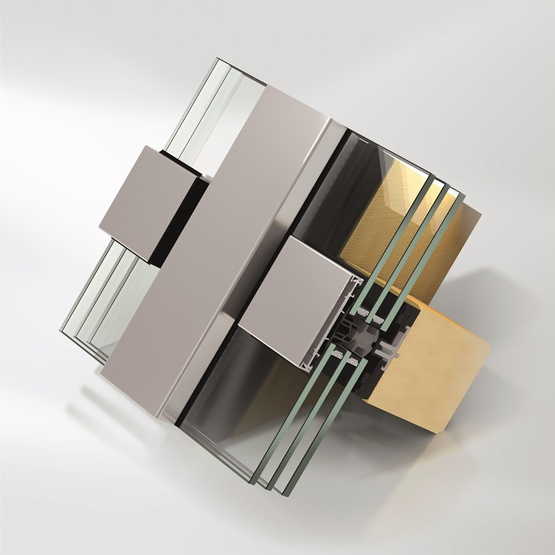

Schüco Façade AOC 75.TI – add-on construction for wide substructures

The new Schüco Façade AOC 75 TI system variation allows for an add-on construction to be used on steel or timber, even on substructures larger than 60 mm. The new range of gaskets allow for large ventilation cross sections in particular in the roof area. The isolator system uses an additional butyl seal here to ensure a particularly high degree of safety. Vertically, Schüco Façade AOC 75 TI can be used flexibly with the isolator system familiar from Schüco AOC 50 and Schüco AOC 60 to .HI and .SI standard.

หมวดหมู่:

PRODUCT BENEFITS

  • 75 mm system width can be used on steel and timber
  • Range of isolators to passive house standard for applications in the vertical façade or roof
  • Standard pressure plates and flat pressure plates are available
  • Roof system can be integrated easily using system articles including motorised control

TECHNICAL INFOS

Min. face width
  • 75 mm
Uf value of frame (≥)
  • 1.3 W/(m²·K)
Max. glass/panel thickness
  • 64 mm
Air permeability
  • AE 1350
Watertightness
  • RE 1200
Burglar resistance
  • Up to RC3
Wind load resistance
  • 2.0/3.0 [kN/m²]
CE marking
  • Ja
Surface finishes
  • Powder
  • Anodised
  • Paint
Min.-max. glass/panel thickness
  • 8…64 mm
Suitable for safety barrier loading
  • Ja
Impact resistance
  • I5/E5
SYSTEM / MATERIAL
  • Aluminium
FAÇADE TYPE
  • Add-on construction
ENERGY
  • Thermally insulated
DESIGN
  • Appearance of a cover cap
Max. weight
  • 280 kg
Min.-max. face width
  • 75 mm
Min. glass/panel thickness
  • 8 mm
Face width of pressure plate / cover cap profile
  • 75 mm
Face width, outside
  • 75 mm
Face width, inside
  • 75 mm
Face width of mullion
  • 75 mm
Face width of frame
  • 75 mm
Face width of transom
  • 75 mm
Building authority approval
  • Ja
Standards
  • DIN EN 13830
  • General building authority approval
Installation angle
  • 90°
Spandrel safety barriers
  • Surface-mounted
  • Façade-mounted
Drainage
  • Ja
Drainage levels
  • 2
Passive house compliant
  • Ja
Recyclable
  • Ja
Sun shading attachment
  • Ja
Skylight construction
  • Ja
Skylight construction, min. vert. incline
Skylight construction, max. vert. incline
  • 105°
Skylight construction, min.-max. vert. incline
  • 2…105°
Max. unit weight
  • 280 kg
Max. glass/infill weight
  • 280 kg

TEST DOCUMENTS
