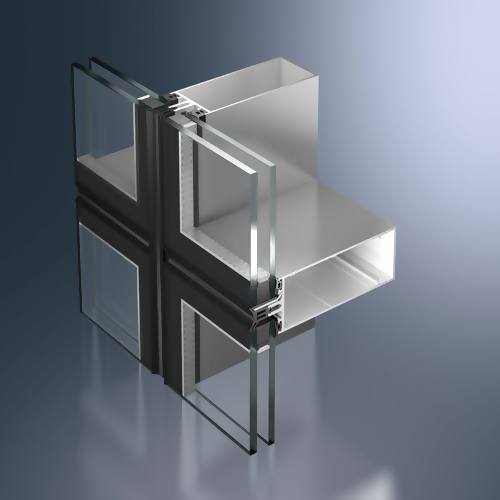

TropTec SC 50 SG.NI

The Schüco TropTec SC 50 SG.NI structural glazing aluminium façade system can convince with its outstanding design offering an all-glass look on the outside with slender profiles of only 50 mm on the inside. The highly resilient mullion/transom construction combines energy efficency, flexibility and efficient fabrication. The special requirements of markets with tropical climates have been incorporated into the structural glazing façade system, which makes it perfect in regions with high wind loads and torrential rain.

Compatible with Schüco TropTec façade insert units

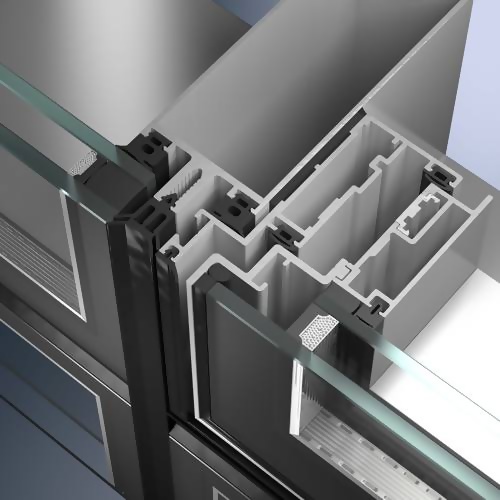

Two different outward-opening, projected top-hung windows can fulfil almost every requirement of any façade project: The Schüco TropTec AW 48.NI insert unit provides a good basis for standard sizes with common fittings whereas the Schüco TropTec AW 58.NI is perfectly suitable for sophisticated façade projects with highest demands.



  • Non-insulated all-glass aluminium mullion/transom façade system
  • Exclusive design due to minimal face widths of 50 mm and straightforward profile geometries
  • Intelligent glass fi xing cleats without strctural bonding on-site
  • System solution for large dimensions and glass loads up to 300 kg in ground floor
  • Fully suitable façade attachment solution
  • Reliablity and water tightness (720 Pa) due to overlapping drainage principle and three drainage levels
  • Convincing structural performance levels due to high wind load resistance (2650 Pa)
  • Good airborne sound insulation with standard insulating glass
