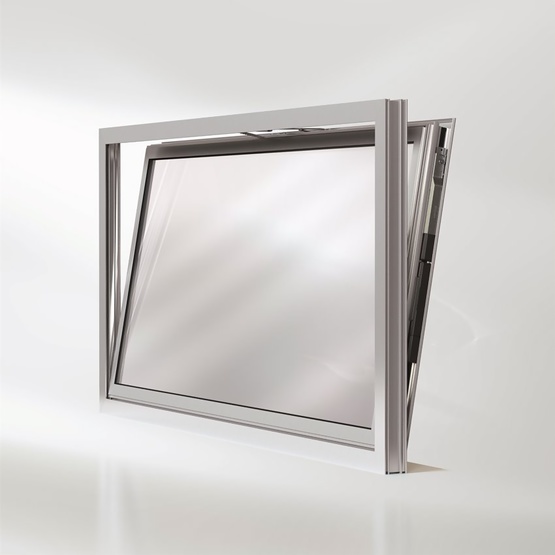

TipTronic SimplySmart

New generation of concealed mechatronic fittings with a focus on minimised noise generation as well as maximised opening widths

Schüco TipTronic SimplySmart sets new standards for concealed actuator technology. It not only represents the quietest mechatronic Schüco actuator on the market, but is also a fully-tested system consisting of an actuator, fitting and profile system. Increased opening widths and flexible unit sizes also allow Schüco TipTronic SimplySmart to be used in almost all Schüco window systems with various opening types.

When integrated into the building automation system, the very quiet-running fittings series fulfils a wide range of requirements in terms of energy efficiency, convenience and security for commercial as well as residential projects. A variety of automated ventilation functions such as night-time cooling, crack ventilation or timed ventilation save on energy costs, ensure a pleasant indoor climate and can be easily combined with fire protection requirements (smoke extraction, NSHEVS).

Furthermore, Schüco TipTronic SimplySmart uses modular security locking to lock the window at multiple points and provides increased burglar resistance up to RC 2 (WK 2). In addition to the integrated anti-finger-trap protection in safety class 2, Schüco also offers anti-finger-trap protection with a sensor strip, which reacts to even the slightest contact with any part of the frame and corresponds to safety classes 3 and 4.

As well as manual operation using a handle or wall-mounted switch, mobile end devices such as tablets and smartphones can also be used – the perfect solution for windows or toplights that are difficult or impossible to reach. Fabricators benefit not only from the more time and cost-efficient fabrication due to the extensive use of identical parts, but also from the new intuitive software to make commissioning easy.

หมวดหมู่:
PRODUCT BENEFITS

Energy

  • Wide range of applications with energy-saving functions: e.g. crack ventilation, timed ventilation and night-time cooling
  • Power management function: up to 30 window units can be operated with a power pack
  • Opening widths of up to 500 mm (750 mm for the “drawbridge” opening type) for daily ventilation
  • Opening widths of up to 1000 mm (1200 mm for the “drawbridge” opening type) can be combined for the event of fire

Design

  • All components are fully concealed – even when active
  • The most narrow window sizes are possible, in line with current architectural trends

Automation

  • Window control by means of polarity reversal and Schüco control components: simple, reliable commissioning of the windows
  • Schüco control for a comprehensive range of automated window functions: e.g. ventilation or monitoring of closing

Security

  • Burglar resistance: system tests to safety class RC 2 (WK 2)
  • Anti-finger-trap protection software guarantees anti-finger-trap protection class 2; safety class 4 is also possible using an optional system sensor strip
  • Schüco control for a comprehensive range of automated window functions: e.g. ventilation or monitoring of closing

Enhanced function

  • The latest motor technology and mechanical optimisations make for the quietest fully-integrated Schüco actuator on the market

FABRICATION BENEFITS

  • Maximum use of identical parts: space-saving storage and more economical fabrication
  • Optimised installation sequence ensures reliable fabrication
  • New intuitive software for simple commissioning and parameterisation of the window units
