Door AD UP 90 BL Residential

Innovative system enhancement of the Schüco Universal Platform door system – for efficient, fast fabrication of front doors and entrance doors

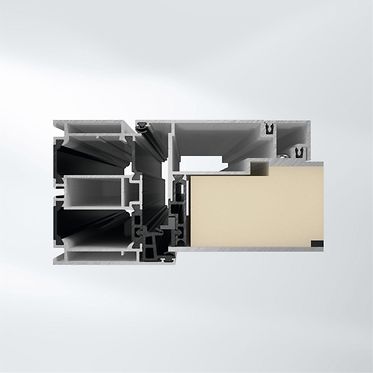

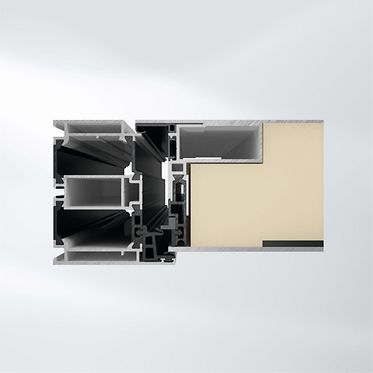

System enhancement of the Schüco Universal Platform, the new Schüco AD UP 90 BL Residential door series offers innovative, mechanical, adhesive-free infill fixing for mounted infills on one side or both sides without additional fixing profiles.

The system development enables fast and efficient fabrication of front doors and entrance doors for luxury homes.

The Schüco AD UP 90 BL Residential door has a modular gasket system which can be tailored to meet individual requirements and scaled within one basic depth to improve the weathertightness and Uf values.


Fabrication benefits

  • Identical fabrication principles for all systems and basic depths
  • Innovative mechanical infill fixing without adhesive
  • Without bonding and pretreatment of panel infills for secure, time-saving and efficient fabrication
  • System compatibility across basic depths for a high use of identical parts
  • Reduction in building components when fabricating the units thanks to the single-skin profile composition
  • Profile composition minimises distortion

Technical information

ENERGYHighly thermally insulated
FUNCTIONSFire and smoke protection, Motorisation
Area of applicationExternal use, Residential projects
Surface finishesRAL, Powder, Anodised
Air permeabilityClass 3
WatertightnessClass 8A
Wind load resistanceClass C4 / B5
Burglar resistanceUp to RC2
Impact resistanceClass 4
Type of designSingle-vent, Single-vent and side section, Single-vent with toplight, Double-vent with toplight and side section, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right
Vent optionAll around, Inward opening
Infill typeDoor infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door thresholdAluminium, Easy-access door threshold
Concealed fittings systemYes
Neutral-colour fittingYes
Fittings installationSurface-mounted door hinge, Concealed door hinge, Barrel hinge
Opening typeSide-hung, Inward
DIN directionDIN LH / RH
Door swingAnti-finger-trap door
Mechanical strengthClass 4
Proof of durabilityClass 6
Top / bottom door closersYes
Door closer typeTop closers
CE markingYes
