FABRICATION BENEFITS
  • Particularly robust and durable
  • Ideally suited to busy entrances and exits
  • Security class up to WK3
  • Comfortable clearance heights up to 3000 mm
  • Max. leaf weight: 200 kg
  • Straightforward use of different types of fitting

TECHNICAL INFORMATION

System basic depth
  • 70 mm
Min. face width
  • 147 mm
Uf value of frame (≥)
  • 2.3 W/(m²·K)
Max. glass/panel thickness
  • 52 mm
Max. sound reduction Rwp
  • 43 dB(A)
Air permeability
  • Class 2
Watertightness
  • Class 5A
Burglar resistance
  • Up to RC3
Wind load resistance
  • Class C3
CE marking
  • Ja
Max. vent weight
  • 200 kg
Area of application
  • Residential projects
  • Commercial projects
Proof of durability
  • Class 8
Min.-max. glass/panel thickness
  • 6…52 mm
Certificates
  • cradle2cradle SILVER
Mechanical strength
  • Class 3
Impact resistance
  • Class 1
SYSTEM / MATERIAL
  • Aluminium
ENERGY
  • Thermally insulated
DESIGN
  • Framed look
FUNCTIONS
  • Increased security
  • Increased sound reduction
Max. height
  • 3000 mm
Max. width
  • 1400 mm
Min.-max. height
  • …3000 mm
Min.-max. width
  • …1400 mm
Behaviour between different climates
  • Class 2(d),2(e)
Opening type
  • Side-hung
  • Inward and outward
  • Single and double-vent
Type of design
  • Single-vent
  • Double-vent
  • Single-vent and side section
  • Double-vent and side section
  • Single-vent with toplight
  • Double-vent with toplight
  • Single-vent with toplight and side section
  • Double-vent with toplight and side section
  • Single-vent with side section, right
  • Single-vent with side section, left
  • Single-vent with side section, right and left
  • Single-vent with side section and toplight
  • Double-vent with side section, right
  • Double-vent with side section, left
  • Double-vent with side section, right and left
Door threshold
  • Aluminium
  • PVC-U
  • Automatic door gasket
  • Flat door threshold
Vent option
  • Flush-fitted
  • All around
  • Sill rail profile
  • Adjustable sill
  • Face-fitted
Infill type
  • Insert panel infill
  • Door infill, leaf enclosing on one side
  • Door infill, leaf-enclosing on two sides
DIN direction
  • DIN LH / RH

SPECIFICATION TEXTS/PREVIEW SPECIFICATION

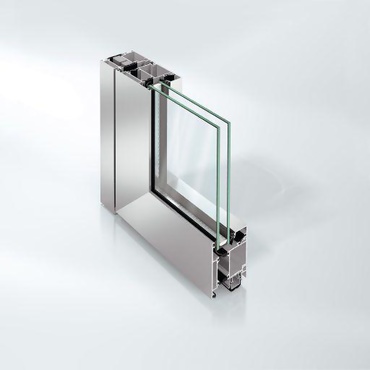

Schüco ADS 70 HD, highly thermally insulated aluminium door system
With 70 mm basic depth, for particularly heavy and oversized leaves subject to high continuous loading.

Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.
The thermal breaking split insulating bars are fitted with foam insulation for high thermal insulation.
The door leaf profiles are fitted with thermal breaking split insulating bars.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.
For increased thermal insulation, glazing gaskets with fins must be used.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.

Profile basic depths:
Outer frame, mullion, transom 70 mm
Leaf frame (door), flush-fitted 70 mm

Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
