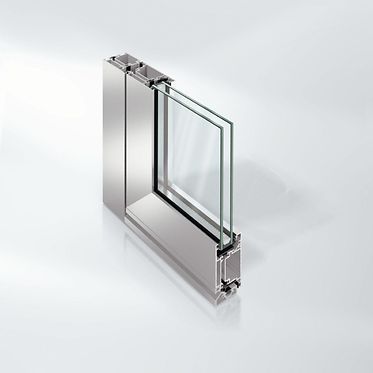

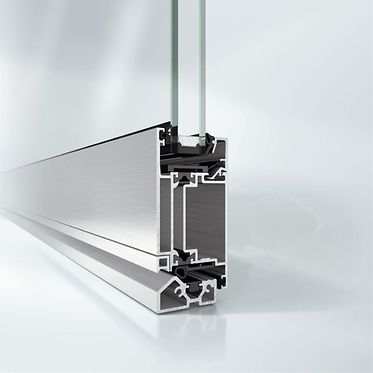

Door System ADS 50

Optimised for use as a front or side entrance door for normal levels of use

Thanks to its very small basic depth of just 50 mm, the Schüco ADS 50 aluminium door system is particularly suited to warmer climate zones. The system can be used as a cost-effective solution in a variety of ways, including integration in building automation systems.

Due to its compatibility with numerous Schüco window and façade systems, developers and architects have ample design options to integrate the door system in the building envelope, e.g. as a manual or automated door solution for main and side entrance areas of public buildings with normal levels of use.

หมวดหมู่:

Fabrication benefits

  • Can be combined with Schüco window and façade systems
  • Adjustable barrel hinge: infinitely adjustable in three dimensions
  • Split insulating bar to reduce the bi-metallic effect

Technical information

System basic depth50 mm
Uf value of frame (≥)3.5 W/(m²·K)
Max. height2500 mm
Max. width1100 mm
Max. glass/panel thickness32 mm
Area of applicationExternal use, Residential projects, Residential projects, Commercial projects
Air permeabilityClass 2
WatertightnessClass 4A
Wind load resistanceClass C3
Burglar resistanceUp to RC2
Impact resistanceClass 1
Max. vent weight150 kg
Min.-max. height…2500 mm
Min.-max. width…1100 mm
Min. face width147 mm
Min.-max. glass/panel thickness4…32 mm
Barrier-free (≤) 20 mmYes
Thick door leaf38 mm
Type of designSingle-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left
Vent optionAll around, Sill rail profile, Flush-fitted
Infill typeInsert panel infill, Door infill, leaf enclosing on one side
Door thresholdAluminium, PVC-U, Automatic door gasket, Flat door threshold
Special applicationsFlush-fitted
Fitting materialAluminium
Concealed fittings systemYes
Neutral-colour fittingYes
Fittings installationSurface-mounted door hinge, Concealed door hinge, Barrel hinge
Electric strikesYes
Opening typeInward and outward
DIN directionDIN LH / RH
Door swingSheet metal clad door, Flush-fitted
Mechanical strengthClass 3
Proof of durabilityClass 5
Top / bottom door closersNo
CE markingYes

Specification texts



Schüco ADS 50, thermally insulated aluminium door system
With 50 mm basic depth.

Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.

Profile basic depths:
Outer frame, mullion, transom 50 mm
Leaf frame (door), flush-fitted 50 mm

Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 69 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
Meeting stile profile 65 mm
Leaf mid-rail 94 mm

download

CAD data

Planning principles

View online

System drawings

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfbericht Windwiderstandsfähigkeit
Schlagregendichtheit
Luftdurchlässigkeit
Klasse C2
Klasse 3A
Klasse 2
EN 12210
EN 12208
EN 12207
View onlineDownload (pdf, 119.3 KB)
Prüfbericht Windwiderstandsfähigkeit
Schlagregendichtheit
Luftdurchlässigkeit
Klasse C2 / B2
Klasse 2A
Klasse 2
EN 12210
EN 12208
EN 12207
View onlineDownload (pdf, 99.9 KB)
Prüfbericht Windwiderstandsfähigkeit
Schlagregendichtheit
Luftdurchlässigkeit
Klasse C2
Klasse 4A
Klasse 2
EN 12210
EN 12208
EN 12207
View onlineDownload (pdf, 880.2 KB)
Kurzbericht Schlagregendichtheit
Windwiderstandsfähigkeit
Luftdurchlässigkeit
Klasse 3A
Klasse C3
Klasse 2
EN 12208
EN 12210
EN 12207
View onlineDownload (pdf, 113.7 KB)
Kurzbericht Schlagregendichtheit
Windwiderstandsfähigkeit
Luftdurchlässigkeit
Klasse 3A
Klasse C2
Klasse 2
EN 12208
EN 12210
EN 12207
View onlineDownload (pdf, 119.2 KB)
