Door System ADS 70.HI

Thermally insulated multi-purpose door with timeless design

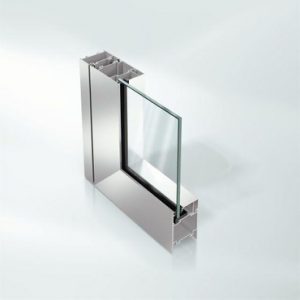

The Schüco ADS 70.HI (High Insulated) door system combines outstanding thermal Insulation with the benefit of attractive design and fittings options. Thanks to a variety of design options, the aluminium door system can be implemented as a multifunctional door – optionally integrated in building security and automation systems.

It is distinguished by its timeless design, including an SL (Soft Line) version with rounded leaf contours, and can be effortlessly combined with Schüco façade and window systems.

Integrated in a sustainable building concept, the thermally insulated door system is an important step in improving the energy balance of the property while offering maximum design freedom.


Fabrication benefits

  • System compatibility: can be integrated in Schüco façade systems
  • Uses system components from the Schüco AWS window system: efficient, low-cost fabrication
  • Use of identical components for different basic depths: reduced number of components and simplified logistics and storage
  • Unified fittings range across individual series
  • Adjustable sill
  • Reliable and secure operation: 500,000 test cycles in accordance with DIN EN 12400

Technical information

System basic depth70 mm
Uf value of frame (≥)1.7 W/(m²·K)
Max. height2500 mm
Max. width1250 mm
Max. glass/panel thickness52 mm
Area of applicationResidential projects, Residential projects, Commercial projects
Air permeabilityClass 2
WatertightnessClass 5A
Wind load resistanceClass C3
Burglar resistanceUp to RC3
Impact resistanceClass 1
Max. vent weight150 kg
Min.-max. height…2500 mm
Min.-max. width…1250 mm
Min. face width147 mm
Min.-max. glass/panel thickness6…52 mm
Type of designSingle-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left
Vent optionAll around, Sill rail profile

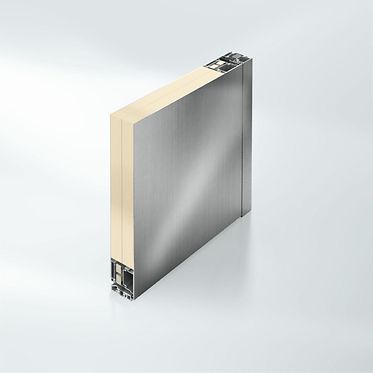

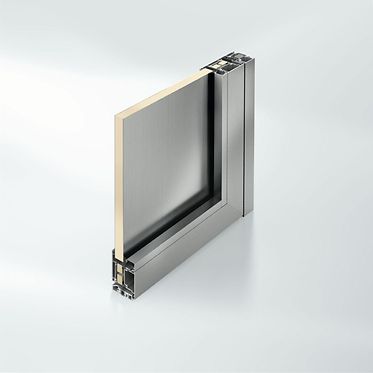

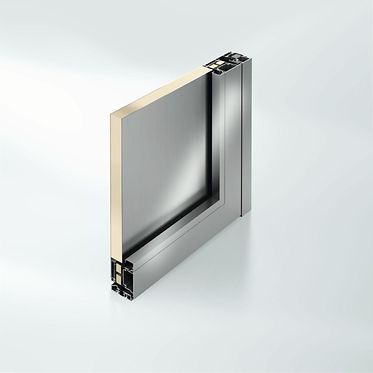

Infill typeInsert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides

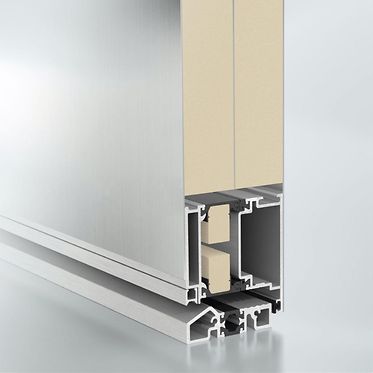

Door thresholdAdjustable sill, Aluminium, PVC-U, Automatic door gasket
Opening typeSide-hung, Outward, Inward
DIN directionDIN LH / RH
Mechanical strengthClass 3
Proof of durabilityClass 5
Behaviour between different climatesClass 2(d),2(e)
Max. sound reduction Rwp43 dB(A)
CE markingYes

Specification texts

Schüco ADS 70.HI, highly thermally insulated aluminium door system
With 70 mm basic depth.

Design features:

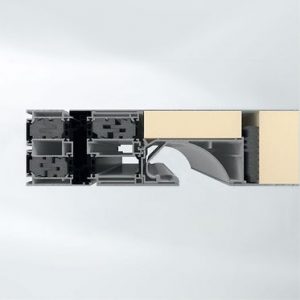

Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.

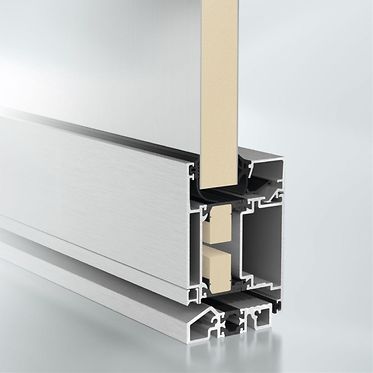

The thermal breaking split insulating bars are fitted with foam insulation for high thermal insulation.
The door leaf profiles are fitted with thermal breaking split insulating bars.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.

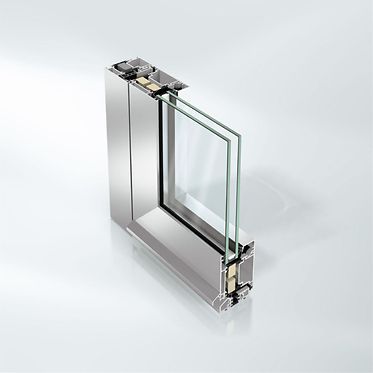

For increased thermal insulation, glazing gaskets with fins must be used.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.

Profile basic depths:
Outer frame, mullion, transom 70 mm
Leaf frame (door), flush-fitted 70 mm
Leaf frame (door) with internal rebate 80 mm

Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
Leaf frame
(Door, with internal rebate) 73 mm
Meeting stile profile 65 mm
Leaf mid-rail 94 mm


CAD data

Planning principles

View online

System drawings

View online

Rule details

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfzeugnis Wärmedurchgangskoeffizient 1,7 – 3,6 View onlineDownload (pdf, 496.2 KB)
Kurzbericht Bedienungskraft
Klasse 2
Klasse 2(d), Klasse 3(e)
Klasse 3
EN 12217
EN 12219
EN 12207
View onlineDownload (pdf, 230.4 KB)
Kurzbericht Zulassung Anforderung erfüllt DIN 18650-1 View onlineDownload (pdf, 172.1 KB)
