FABRICATION BENEFITS
- Multi-purpose groove for rapid, push-in fixing of fittings using sliding blocks (Schüco Door ADS 65.NI only)
- Continuous leaf profile
- Can be integrated in the building automation system
- Can be made as a swing door or an all-glass door
TECHNICAL INFORMATION
- System basic depth
-
- 50 mm
- Min. face width
-
- 141 mm
- Max. glass/panel thickness
-
- 32 mm
- Air permeability
-
- Class 2
- Burglar resistance
-
- Up to RC2
- Wind load resistance
-
- Class C3
- CE marking
-
- Ja
- Max. vent weight
-
- 200 kg
- Area of application
-
- External use
- Commercial projects
- Internal use
- Proof of durability
-
- Class 5
- Min.-max. glass/panel thickness
-
- 6…32 mm
- Barrier-free (≤) 20 mm
-
- Ja
- Zero-level threshold
-
- Ja
- SYSTEM / MATERIAL
-
- Aluminium
- ENERGY
-
- Non-insulated
- DESIGN
-
- Framed look
- FUNCTIONS
-
- Interior design
- Max. height
-
- 2500 mm
- Max. width
-
- 1100 mm
- Min.-max. height
-
- …2500 mm
- Min.-max. width
-
- …1100 mm
- Opening type
-
- Inward and outward
- Finger-trap protection
- Type of design
-
- Single-vent
- Double-vent
- Single-vent and side section
- Double-vent and side section
- Single-vent with toplight
- Double-vent with toplight
- Single-vent with toplight and side section
- Double-vent with toplight and side section
- Single-vent with side section, right
- Single-vent with side section, left
- Single-vent with side section, right and left
- Single-vent with side section and toplight
- Double-vent with side section, right
- Double-vent with side section, left
- Double-vent with side section, right and left
- Door threshold
-
- Aluminium
- PVC-U
- Automatic door gasket
- Flat door threshold
- Vent option
-
- All around
- Sill rail profile
- Adjustable sill
- Special applications
-
- Swing door
- Flush-fitted
- Anti-finger-trap door
- Infill type
-
- Insert panel infill
- DIN direction
-
- DIN LH / RH
- Finger-trap protection
-
- Ja
- Electric strikes
-
- Ja
- With panic function
-
- Ja
SPECIFICATION TEXTS/PREVIEW SPECIFICATION

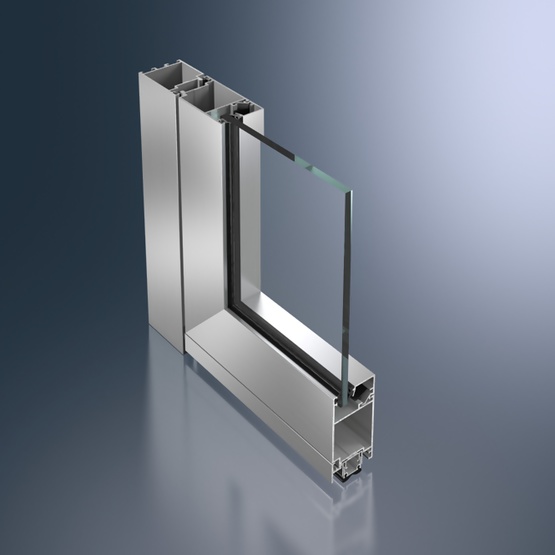

Schüco ADS 50.NI, non-insulated aluminium door and partition wall system
With 50 mm basic depth.
Design features:
The construction is flush-fitted on the inside and outside.
The system must be fitted with square glazing beads.
The sill is sealed by a gasket that falls into place automatically when the door is closed. Depending on requirements, a threshold profile and a gasket with lips can also be used.
Profile basic depths:
Outer frame, transom, mullion,
leaf frame and sill 50 mm
Profile face widths:
Outer frame, side / top 66 mm
Outer frame, bottom 120 mm
Mullion 88 mm
Transom 88 mm
Leaf frame (door) 92 mm
Sill 112 mm
Meeting stile profile (inside view) 39 mm
