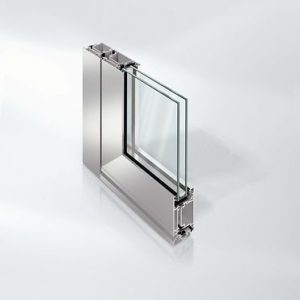

Door ADS 90 SimplySmart

High-performance pioneering door series for residential and commercial buildings

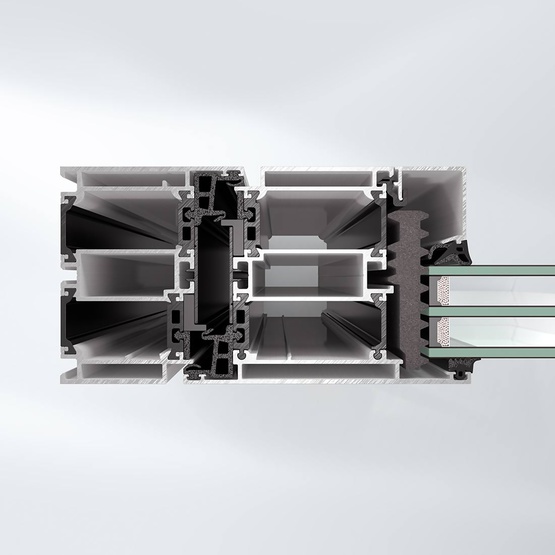

The Schüco Door ADS 90 SimplySmart is a high-performance door system which combines high thermal insulation properties with pioneering design details. Its 5-chamber profile construction brilliantly reflects the system approach of Schüco ADS SimplySmart: The same aluminium half profiles are used as for the 75 mm basic depth.

The 90 mm basic depth is achieved with the use of larger insulating bars. Maximum use of identical parts across the basic depths simplifies fabrication considerably and makes it more economical. The use of a double centre gasket ensures outstanding thermal insulation and airtightness properties for this pioneering door system.

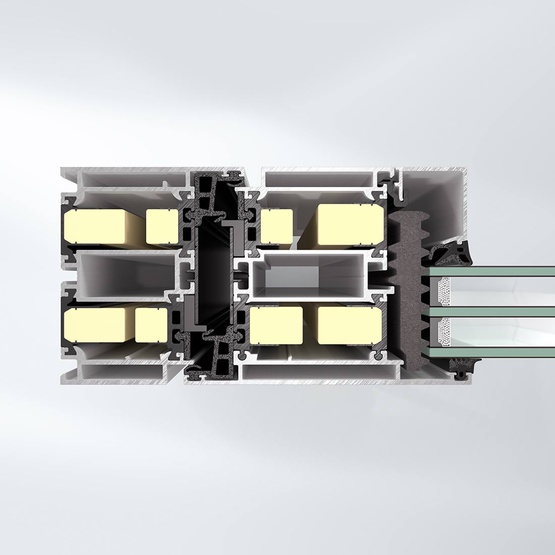

As a highly thermally insulated design option, Schüco Door ADS 90.SI SimplySmart achieves excellent thermal insulation values with an identical profile construction and additional foam-filled insulating bars, producing Uf values as low as 1.0 W/(m²K) – without additional insulating shells. This system therefore fulfils the high requirements of the passive house standard.



  • A barrel hinge for all applications: With clamping anchor technology as well as enhanced adjustment options for simple and time-saving installation
  • The same construction principle across all basic depths and maximum use of identical parts ensure professional, reliable fabrication
  • Hybrid insulating bar: High stability in conjunction with a split insulating bar minimises the bimetallic effect
  • Efficient fabrication and simplified installation thanks to pre-fabricated gasket corners and threshold solutions which are optimised for fabrication
  • Available pre-rolled, rolled together by customer and pre-rolled by Schüco


System basic depth
  • 90 mm
Min. face width
Uf value of frame (≥)
  • 1.3 W/(m²·K)
Max. glass/panel thickness
Max. sound reduction Rwp
  • 42 dB(A)
Air permeability
  • Class 4
  • Class 5A
Burglar resistance
  • Up to RC2
Wind load resistance
  • Class C2 / B2
CE marking
  • Ja
Max. vent weight
  • 200 kg
Area of application
  • Residential projects
  • Commercial projects
Proof of durability
  • Class 7
  • Class 8
Min.-max. glass/panel thickness
Mechanical strength
  • Class 3
Impact resistance
  • Class 1
  • Aluminium
  • Highly thermally insulated
  • Framed look
  • Increased security
  • Increased sound reduction
Max. height
  • 2500 mm
Max. width
  • 1250 mm
Ud value of door (≥)
Min.-max. height
  • …2500 mm
Min.-max. width
  • …1250 mm
Opening type
  • Side-hung
  • Inward and outward
  • Single and double-vent
Type of design
  • Single-vent
  • Double-vent
  • Single-vent and side section
  • Double-vent and side section
  • Single-vent with toplight
  • Double-vent with toplight
  • Single-vent with toplight and side section
  • Double-vent with toplight and side section
  • Single-vent with side section, right
  • Single-vent with side section, left
  • Single-vent with side section, right and left
  • Single-vent with side section and toplight
  • Double-vent with side section, right
  • Double-vent with side section, left
  • Double-vent with side section, right and left
Door threshold
  • Aluminium
  • PVC-U
  • Automatic door gasket
  • Flat door threshold
Vent option
  • Flush-fitted
  • All around
  • Sill rail profile
  • Adjustable sill
Infill type
  • Insert panel infill
  • Door infill, leaf enclosing on one side
  • Door infill, leaf-enclosing on two sides
DIN direction
  • DIN LH / RH
