Door System AD UP Design Edition

Design door for the most demanding requirements in terms of aesthetics and function

Function meets design – the Schüco AD UP Design Edition door system combines a high-quality appearance with convenience for users, for aluminium door solutions which meet any challenge.

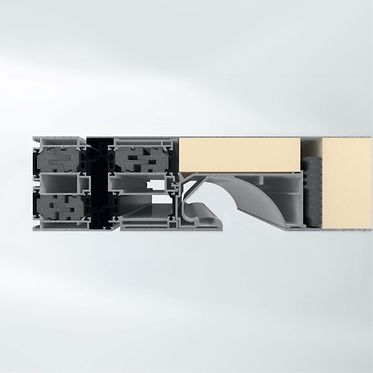

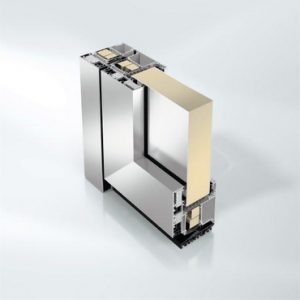

The elegant flush pull grip with homogenous LED illumination gives an impression of grace, while the combination of leaf-enclosing door infills with a high-quality, flush-fitted appearance and the seamless integration of the design profile in the leaf fulfil the highest architectural requirements.

New to the system portfolio: design options integrated in the door infill for all system basic depths offer developers, architects and client additional choices.

All door versions can be designed inward or outward-opening as desired.


Fabrication benefits

  • Design solution as a system platform: use of standard components, connection technology and door infills
  • Efficient fabrication and simplified installation, e.g. thanks to pre-fabricated gasket corners and threshold solutions which are optimised for fabrication
  • Construction principle for all basic depths and maximum use of identical parts, ensuring professional, reliable fabrication

Technical information

System basic depth90 mm
Uf value of frame (≥)1.4 W/(m²·K)
Max. height2500 mm
Max. width1250 mm
Max. glass/panel thickness90 mm
Area of applicationResidential projects, Residential projects, Commercial projects
Air permeabilityClass 4
WatertightnessClass 5A
Wind load resistanceClass C2 / B2
Burglar resistanceUp to RC2
Max. vent weight200 kg
Min.-max. height0…2500 mm
Min.-max. width0…1250 mm
Min. face width170 mm
Min.-max. glass/panel thickness90…90 mm
Barrier-free (≤) 20 mmYes
Thick door leaf90 mm
Type of designSingle-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left
Vent optionFlush-fitted, Inward opening, Outward-opening
Infill typeInsert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door thresholdAluminium, Automatic door gasket, Flat door threshold
Concealed fittings systemYes
Neutral-colour fittingYes
Fittings installationSurface-mounted door hinge, Concealed door hinge, Barrel hinge
Opening typeSide-hung, Inward and outward, Single and double-vent
DIN directionDIN LH / RH
Door swingFlush-fitted
Mechanical strengthClass 3
Proof of durabilityClass 7, Class 8
Max. sound reduction Rwp42 dB(A)
Top / bottom door closersYes
Door closer typeTop closers
CE markingYes
