Door ADS 70.HI

The new Schüco Door ADS 70.HI (High Insulation) combines outstanding thermal insulation with the benefits of the Schüco ADS door system. The basic depth of 70 mm ensures a high degree of stability. Optional fittings allow it to be used as a multi-purpose door and integrated in the building security and building management system. The clear, timeless design is ideal for combining with the proven Schüco facade and window systems.

The high insulation door is ideally suited to improving the energy balance of a building – with maximum planning freedom.

Residential Line (RL), SoftLine (SL) or Heavy Duty door (HD) models Automatic door seal Easy-access solutions Concealed hinges Leaf-enclosing infill panel Emergency fittings Emergency exit switch Access control / door manager Radio control Integration in building management system



  • Can be integrated in Schüco Facade Sytsems
  • Use with systems in the Schüco AWS series
  • Use of identical components for different basic depth to reduce the number of components and to simplify logistics and storage
  • Range of fittings tailored to the individual series
  • Adjustable sill


System basic depth
  • 70 mm
Min. face width
  • 147 mm
Uf value of frame (≥)
  • 1.7 W/(m²·K)
Max. glass/panel thickness
  • 52 mm
Max. sound reduction Rwp
  • 43 dB(A)
Air permeability
  • Class 2
  • Class 5A
Burglar resistance
  • Up to RC3
Wind load resistance
  • Class C3
CE marking
  • Ja
Max. vent weight
  • 150 kg
Area of application
  • Residential projects
  • Commercial projects
Proof of durability
  • Class 5
Min.-max. glass/panel thickness
  • 6…52 mm
Mechanical strength
  • Class 3
Impact resistance
  • Class 1
  • Aluminium
  • Highly thermally insulated
  • Framed look
  • Increased security
Max. height
  • 2500 mm
Max. width
  • 1250 mm
Min.-max. height
  • …2500 mm
Min.-max. width
  • …1250 mm
Behaviour between different climates
  • Class 2(d),2(e)
Opening type
  • Side-hung
  • Outward
  • Inward
Type of design
  • Single-vent
  • Double-vent
  • Single-vent and side section
  • Double-vent and side section
  • Single-vent with toplight
  • Double-vent with toplight
  • Single-vent with toplight and side section
  • Double-vent with toplight and side section
  • Single-vent with side section, right
  • Single-vent with side section, left
  • Single-vent with side section, right and left
  • Single-vent with side section and toplight
  • Double-vent with side section, right
  • Double-vent with side section, left
  • Double-vent with side section, right and left
Door threshold
  • Aluminium
  • PVC-U
  • Automatic door gasket
  • Adjustable sill
Vent option
  • All around
  • Sill rail profile
Infill type
  • Insert panel infill
  • Door infill, leaf enclosing on one side
  • Door infill, leaf-enclosing on two sides
DIN direction
  • DIN LH / RH

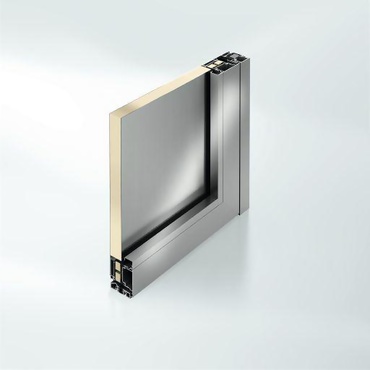

Schüco ADS 70.HI, highly thermally insulated aluminium door system
With 70 mm basic depth.

Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.

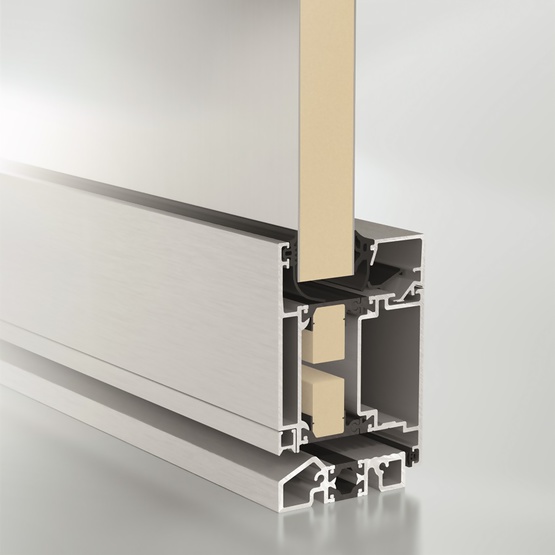

The thermal breaking split insulating bars are fitted with foam insulation for high thermal insulation.
The door leaf profiles are fitted with thermal breaking split insulating bars.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.
For increased thermal insulation, glazing gaskets with fins must be used.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.

Profile basic depths:
Outer frame, mullion, transom 70 mm
Leaf frame (door), flush-fitted 70 mm
Leaf frame (door) with internal rebate 80 mm

Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
Leaf frame
(Door, with internal rebate) 73 mm
Meeting stile profile 65 mm
Leaf mid-rail 94 mm
