Door System ADS 65

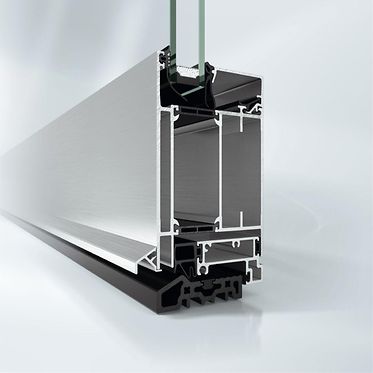

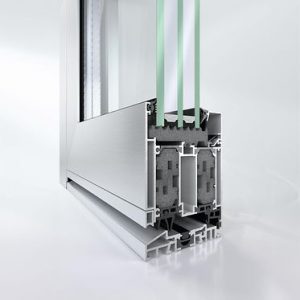

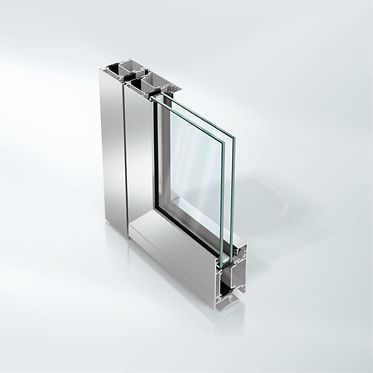

Schüco ADS 65, thermally insulated aluminium door system with 65 mm basic depth.

Design features:
Flush-fitted door construction inside and outside with a 5 mm shadow gap on both sides, with 11 mm shadow gap for double-leaf anti-panic doors.
The door leaf profiles are fitted with split composite strips.
The system is to be equipped with rectangular glazing beads.
Unless other requirements for the base point are given by standards / directives / LBOs, the bottom door closure is to be equipped with an aluminium / plastic stop threshold, height 20 mm and a sealing gasket.
system for sealing at a test pressure of up to 150 PA according to DIN EN 12208.

Profile depths:
frame, mullion, transom 65 mm
Leaf frame (door) flush 65 mm
Leaf frame (door) with internal surcharge 75 mm

Profile face widths:
Inset cover frame to the inside
opening door 51 mm
Insert cover frame to the outside
opening door 26 mm
Cover frame / base, bottom 106 / 150 mm
Frame, side and top 79 mm
Post 94 mm
Bolt 94 mm
Sash frame (outward opening) 98 mm
Sash frame (inward opening) 73 mm
Sash profile bottom 142 mm
or
The door leaves are equipped with a 4-sided surrounding,
to be executed with a mitred sash profile.
Frame widening 44 mm
Forend profile 65 mm
Sash bar 94 mm
