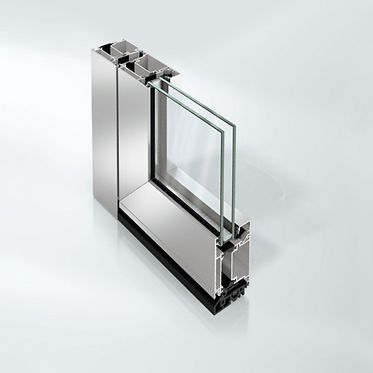

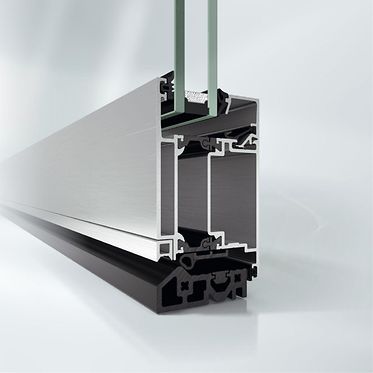

Door System ADS 60

Economical solution for entrances without high thermal insulation requirements

For external and internal doors where there is no particular focus on thermal insulation requirements, the Schüco ADS 60 door system is an attractive, economical solution, for example in warm climate zones, interiors or public buildings.

The wide range of possible uses of the aluminium door system, including integration in building security and automation systems, ensures tailor-made door solutions with cost-efficient implementation.

A further advantage for developers and architects: thanks to the compatibility with Schüco systems, the door system can be combined seamlessly with Schüco window systems and can be harmoniously integrated in façade systems.


Fabrication benefits

  • Can be combined with Schüco window and façade systems
  • Uses system components from the Schüco AWS window system: efficient, low-cost fabrication
  • Use of identical components for different basic depths: reduced number of components and simplified logistics and storage

Technical information

System basic depth60 mm
Uf value of frame (≥)2.6 W/(m²·K)
Max. height2500 mm
Max. width1100 mm
Max. glass/panel thickness40 mm
Area of applicationExternal use, Commercial projects
Air permeabilityClass 2
WatertightnessClass 5A
Wind load resistanceClass C3
Burglar resistanceUp to RC2
Impact resistanceClass 1
Ud value of door (≥)1.6 W/(m²·K)
Max. vent weight150 kg
Min.-max. height…2500 mm
Min.-max. width…1100 mm
Min. face width147 mm
Min.-max. glass/panel thickness4…40 mm
Barrier-free (≤) 20 mmYes
Thick door leaf38 mm
Type of designSingle-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left
Vent optionAll around, Sill rail profile, Adjustable sill, Flush-fitted
Door thresholdAluminium, PVC-U, Automatic door gasket, Flat door threshold
Special applicationsSwing door, Flush-fitted
Fitting materialAluminium
Neutral-colour fittingYes
Fittings installationBarrel hinge
Opening typeInward and outward
DIN directionDIN LH / RH
Door swingSheet metal clad door, Swing door, Flush-fitted
Mechanical strengthClass 3
Proof of durabilityClass 5
Behaviour between different climatesClass 3(d),3(e)
CE markingYes

Specification texts

Schüco ADS 60, thermally insulated aluminium door system
With 60 mm basic depth.

Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.
The door leaves must have a four-sided mitre-cut leaf profile.
The door leaf profiles are fitted with thermal breaking split insulating bars.
The system must be fitted with square glazing beads.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.

Profile basic depths:
Outer frame, mullion, transom 60 mm
Leaf frame (door), flush-fitted 60 mm

Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 69 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
Meeting stile profile 65 mm
Leaf mid-rail 94 mm


CAD data

Planning principles

View online

System drawings

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfbericht Windwiderstandsfähigkeit
Klasse C2
Klasse 5A
Klasse 2
EN 12210
EN 12208
EN 12207
View onlineDownload (pdf, 803.7 KB)
Prüfzeugnis Einbruchhemmung Widerstandsklasse 2 WK 2 View onlineDownload (pdf, 178.5 KB)
Prüfbericht Dauerlaufprüfung Klasse 5 EN 12400 View onlineDownload (pdf, 414.5 KB)
Prüfbericht Bedienungskraft
Klasse 2 (ohne Klimaeinfluss)
Klasse 1 (mit Klimaeinfluss)
Klasse 3(d) / 3(e)
EN 12217
EN 12217
EN 12219
View onlineDownload (pdf, 553.9 KB)
