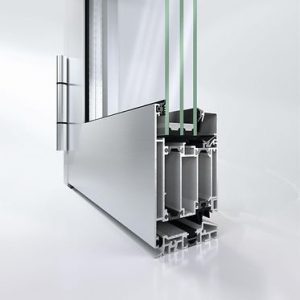

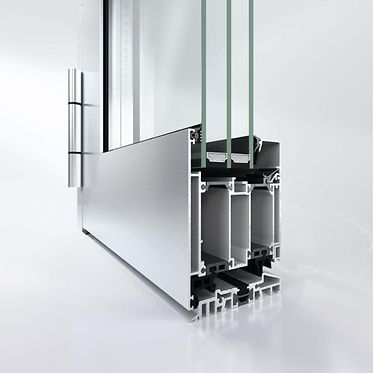

Door System AD UP 90

Pioneering, high-performance door system for residential and commercial buildings

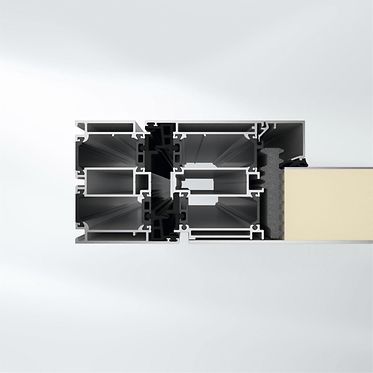

Designed for the most demanding project-specific solutions in residential and commercial construction: the highly stable Schüco AD UP 90 door system with a 90 mm basic depth is based on a triple-shell construction principle and uses a double central gasket system that ensures the best energy efficiency, insulation and weathertightness properties.

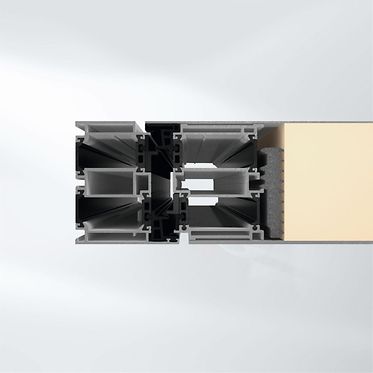

The system guarantees maximum design and planning freedom in implementing functional, comfort and design oriented door solutions for all areas of application, e.g. as a front entrance with leaf-enclosing infills, concealed door hinges and concealed, integrated door communication systems.


Fabrication benefits

  • The same construction principle across all basic depths and maximum use of identical parts ensure professional, reliable fabrication
  • Reduced warehouse storage due to symmetrical profile construction
  • One barrel hinge for all applications: with clamping anchor technology as well as enhanced adjustment options for simple and time-saving installation
  • Easy to install unit for newbuilds and renovations by means of frame anchor and fixing lug thanks to central unit fixing in the aluminium
  • Structurally optimised sealing of the base point: gasket installation without supplementary profiles and drip bar, tubular lip gasket with gasket lip (contact-free) as protection from water splashing and use across all systems (two or three sealing levels)

Technical information

System basic depth90 mm
Uf value of frame (≥)1.3 W/(m²·K)
Max. height2500 mm
Max. width1250 mm
Max. glass/panel thickness68 mm
Area of applicationResidential projects, Residential projects, Commercial projects
Air permeabilityClass 4
WatertightnessClass 5A
Wind load resistanceClass C2 / B2
Burglar resistanceUp to RC2
Impact resistanceClass 1
Ud value of door (≥)0.96 W/(m²·K)
Max. vent weight200 kg
Min.-max. height…2500 mm
Min.-max. width…1250 mm
Min. face width170 mm
Min.-max. glass/panel thickness28…68 mm
Barrier-free (≤) 20 mmYes
Thick door leaf90 mm
Type of designSingle-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left
Vent optionAll around, Sill rail profile, Adjustable sill, Flush-fitted
Infill typeInsert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door thresholdAluminium, PVC-U, Automatic door gasket, Flat door threshold
Fitting materialAluminium, Stainless steel
Concealed fittings systemYes
Neutral-colour fittingYes
Fittings installationSurface-mounted door hinge, Concealed door hinge, Barrel hinge
Electric strikesYes
With panic functionYes
Finger-trap protectionYes
Opening typeSide-hung, Inward and outward, Single and double-vent
DIN directionDIN LH / RH
Door swingFlush-fitted
Mechanical strengthClass 3
Proof of durabilityClass 7, Class 8
Max. sound reduction Rwp42 dB(A)
Top / bottom door closersYes
Door closer typeTop closers
Certificatescradle2cradle SILVER
CE markingYes

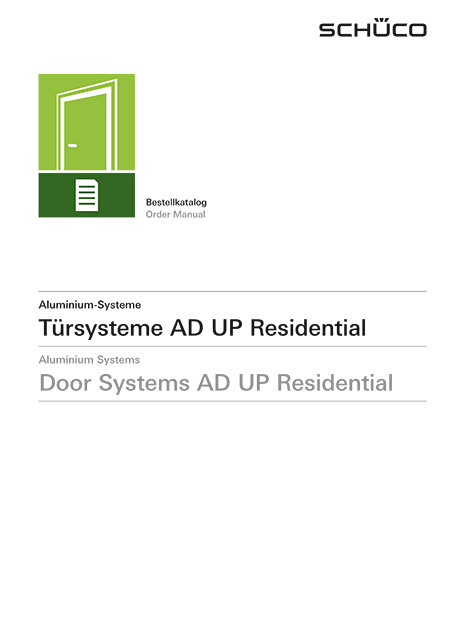

[C] Schüco AD UP 90

View online

[C] Schüco AD UP 90

View online

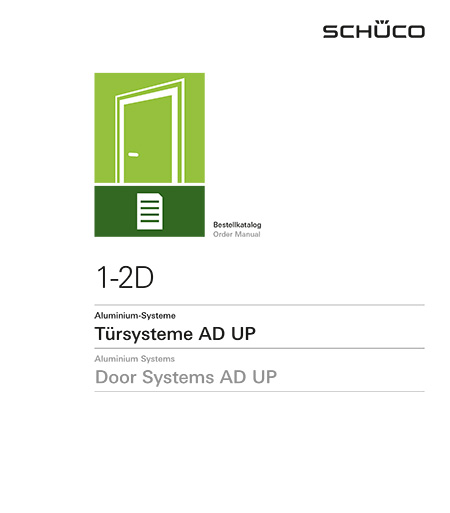

Fabrication manual 1-2D – Door Systems AD UP

View onlineDownload

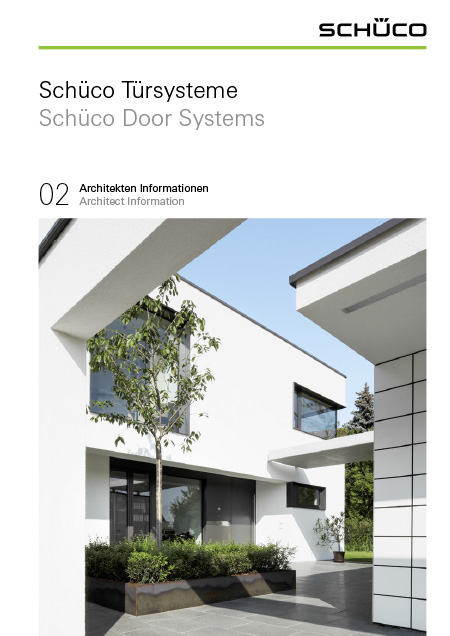

Schüco door systems – Architect Info 02

View onlineDownload

Specification texts

Schüco AD UP 90, highly thermally insulated aluminium door system
with a basic depth of 90 mm.

Design features:
Externally flush-fitted door construction with continuous 7 mm shadow gap on the outside.

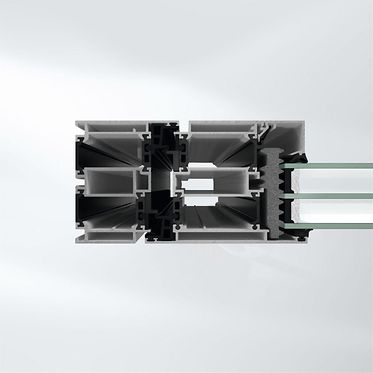

Five-chamber profile construction, arranged symmetrically, consisting of three aluminium shells which are joined by means of special insulating bars without insulating foam.
As hybrid insulating bars with a large fixed proportion between the inner and centre shells and a decoupled outer shell, the door leaf profiles must be designed with “split insulating bars”.
The decoupling must take place between the outer aluminium shell and the insulating bar to reduce the bi-metallic effect.
The door leaves must have a four-sided mitred leaf profile.
The sealing is carried out by two centre gaskets and two rebate gasket levels.
The fittings are installed in the aluminium centre shell, not in the insulating bar.
An attachment to building structure is possible in the middle of the profile via the centre shell.
If there are no other requirements specified for the sill by standards / guidelines / regional building regulations, the bottom door sill must be fitted with a stabilising, thermally broken aluminium threshold in between and corresponding water-resistant moulded pieces.

Profile basic depths:
Outer frame, mullion, transom 90 mm
Leaf frame (door) 90 mm

Profile face widths:
Insert outer frame, inward-
opening door 63 mm
Insert outer frame, outward-
opening door 37 mm
Outer frame / sill, bottom 127 mm
Outer frame, side and top 76 mm
Mullion 108 mm
Transom 108 mm

Leaf frame, outward-opening 119 mm
Leaf frame, inward-opening 87 mm

Outer frame extension 44 mm

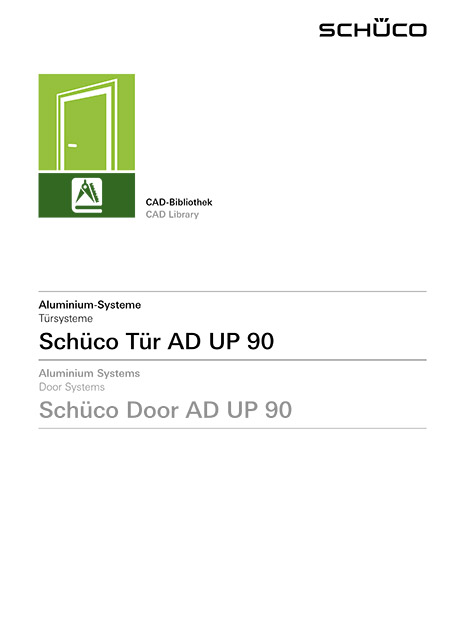

CAD data

Planning principles

View online

System drawings

View online

Design suggestions

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfbericht Fähigkeit zur Freigabe Anforderung erfüllt EN 14351-1 View onlineDownload (pdf, 9.6 MB)
Gutachterliche Stellungnahme Schallmessung 42 (-1;-4) EN ISO 717-1 View onlineDownload (pdf, 277.4 KB)
Gutachterliche Stellungnahme Bedienungskraft
Klasse 2
Klasse 4
Klasse C2
Klasse 5A
DIN EN 12217
DIN EN 12207
DIN EN 12210
DIN EN 12208
View onlineDownload (pdf, 483.2 KB)
Gutachterliche Stellungnahme Bedienungskraft
Klasse 2
Klasse 3
Klasse C2
Klasse 4A
DIN EN 12217
DIN EN 12207
DIN EN 12210
DIN EN 12208
View onlineDownload (pdf, 482.7 KB)
Gutachterliche Stellungnahme Windwiderstandsfähigkeit
Übertragung von SimplySmart
Übertragung von SimplySmart
Übertragung von SimplySmart
Übertragung von SimplySmart
Übertragung von SimplySmart
Übertragung von SimplySmart
Übertragung von SimplySmart
Übertragung von SimplySmart
View onlineDownload
Kurzbericht Luftdurchlässigkeit
Widerstand gegen Windlast
Klasse 3
Klasse 4A
Klasse C1 / B2
EN 12207
EN 12208
EN 12210
View onlineDownload (pdf, 129.0 KB)
Kurzbericht Einbruchhemmung RC 2 / RC 2 N*) DIN EN 1627 View onlineDownload
