Façade System AOC 75 TI

Add-on construction for wide timber substructures, especially in the roof area

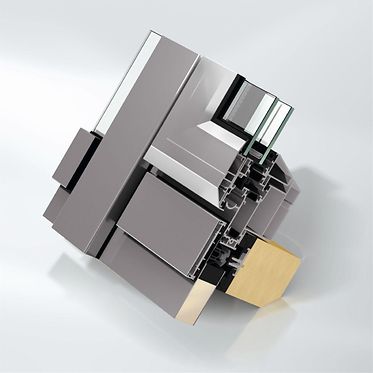

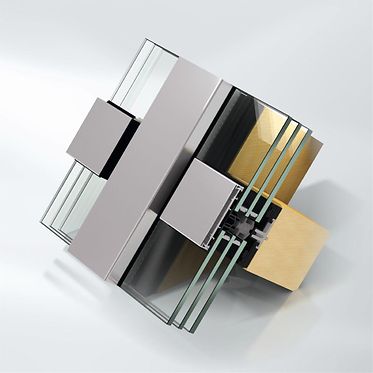

The Schüco AOC 75 TI (Timber) façade system, with its 75 mm system width, is especially suitable for wide timber substructures in the roof area.

The basis for this is two pioneering system components: a specially designed gasket range for large ventilation cross sections as well as a passive house level isolator system that guarantees optimised security with an additional butyl seal, for applications in vertical façades and the roof area.

หมวดหมู่:

Fabrication benefits

  • Sealing components without use of sealant in the vertical façade for efficient and secure installation
  • Patented screw guide: different infill thicknesses can be inserted reliably and efficiently
  • Roof area with butyl tape sealing and integrated screw guide for maximum installation reliability
  • Special basic profiles with positioning guide for timber fabricators

Technical information

Uf value of frame (≥)1.3 W/(m²·K)
Min. face width75 mm
Max. glass/panel thickness64 mm
Max. weight280 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityAE 1350
WatertightnessRE 1200
Impact resistanceI5/E5
Burglar resistanceUp to RC3
Suitable for safety barrier loadingYes
Max. unit weight280 kg
Min.-max. face width75 mm
Face width of pressure plate / cover cap profile75 mm
Face width, outside75 mm
Face width, inside75 mm
Face width of mullion75 mm
Face width of frame75 mm
Face width of transom75 mm
Min. glass/panel thickness8 mm
Min.-max. glass/panel thickness8…64 mm
Max. glass/infill weight280 kg
Installation angle90°
Skylight construction, min. vert. incline2°
Skylight construction, max. vert. incline105°
Skylight construction, min.-max. vert. incline2…105°
Skylight constructionYes
DrainageYes
Drainage levels2
Wind load resistance2.0/3.0 [kN/m²]
Sun shading attachmentYes
Spandrel safety barriersSurface-mounted, Façade-mounted
CE markingYes
Passive house compliantYes
RecyclableYes
StandardsDIN EN 13830, General building authority approval
Building authority approvalYes

Documentation

Aluminium mullion/transom façades

View onlineDownload

[B] System overview Schüco AOC

View online

[E] Schüco AOC 75

View online

[J] Timber Substructures Sloped roof area

View online

[L] Special points

View online

CAD data

Planning principles

View online

System drawings

View online

Rule details

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfzeugnis Luftdurchlässigkeit
Schlagregendichtheit
Widerstand gegen Windlast
AE 1350
RE 1200
+ / – 3000 Pa
View onlineDownload (pdf, 89.6 KB)
Prüfzeugnis Luftdurchlässigkeit
Schlagregendichtheit
Widerstand gegen Windlast
AE 1350
RE 1200
+ / – 3000 Pa
View onlineDownload (pdf, 83.2 KB)
Prüfzeugnis Schlagregendichtheit
Widerstand gegen Windlast
Luftdurchlässigkeit
View onlineDownload (pdf, 87.3 KB)
Gutachterliche Stellungnahme Luftdurchlässigkeit
Schlagregendichtheit
Widerstand gegen Windlast
View onlineDownload (pdf, 176.2 KB)
Gutachterliche Stellungnahme Belastungsprüfung View onlineDownload (pdf, 523.7 KB)
Zulassung Belastungsprüfung View onlineDownload (pdf, 845.0 KB)
Zulassung Belastungsprüfung View onlineDownload (pdf, 2.4 MB)
