TropTec UC 65 SG.NI

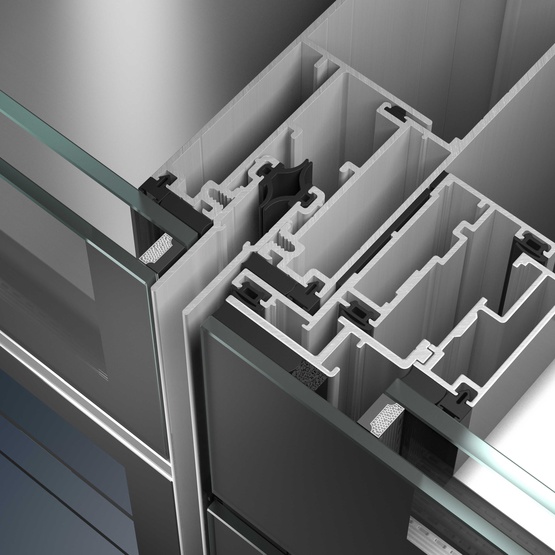

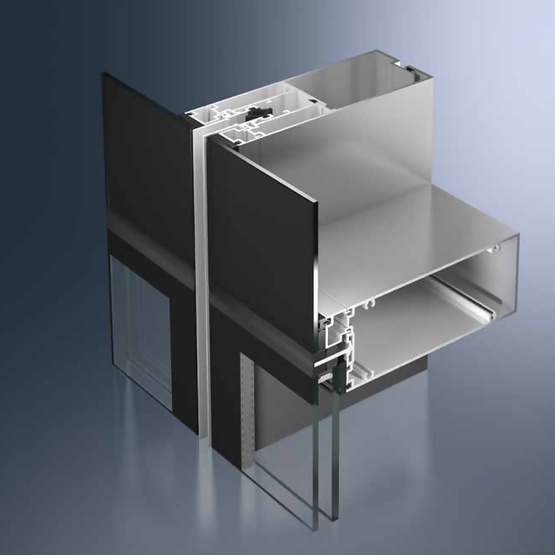

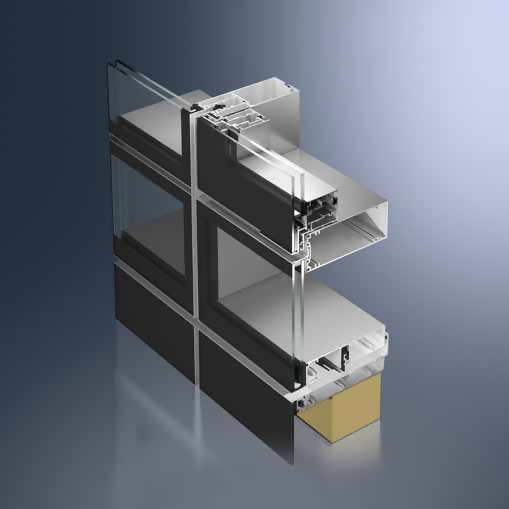

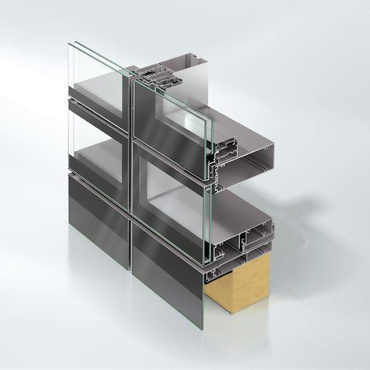

The new Schüco TropTec UC 65 SG.NI façade system allows for storey-height prefabricated façade units with an all-glass look (SG). The aluminium façade system newly developed for the market with tropical climates guarantees particularly streamlined and attractive building designs. This is further aided by the continuous narrow face width. The façade can be constructed with single glazing up to 8 mm and insulating glass up to 26 mm.

Compatible with the Schüco TropTec 58.NI façade opening unit
The TropTec AW 58.NI façade opening unit is available for the TropTec UC 65 SG.NI unitised façade as a system solution. It is particularly suitable for high wind loads and large dimensions. The opening unit is designed as an outward-opening, projected top-hung window and can be fitted with double insulating glass with glass thicknesses of 22-26 mm.



  • Uf values of 2.4 W/(m²K) up to 2.7 W/(m²K) are possible


  • Unitised façade with the expansive appearance of an all-glass façade, with narrow face widths of up to 65 mm on the inside


  • Integration of Schüco AWS 114 as projected top-hung window or parallel-opening window: possibility of large automated window solutions incorporated in the building management system for standard and SHEVS applications


  • Comprehensive system tests in accordance with European and American test standards

Enhanced function

  • Schüco AWS 114 insert units can be integrated as projected top-hung or parallel-opening windows with vent weights up to 250 kg
  • Hollow chamber profiles and fabrication using mitred corners ensure high unit stability


  • High degree of prefabrication in the workshop: improved fabrication quality and calculable costs, less dependent on the weather
  • Efficient installation on site: small number of individual parts, minimal space required, no glazing on site, short installation times
