Façade System Parametric System

Three-dimensional façade geometries for high-level design requirements

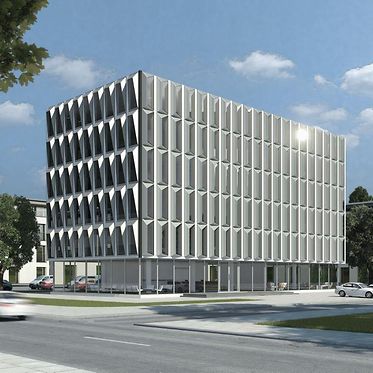

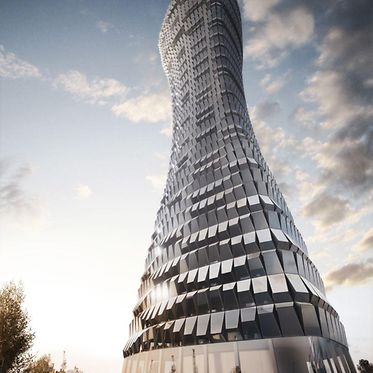

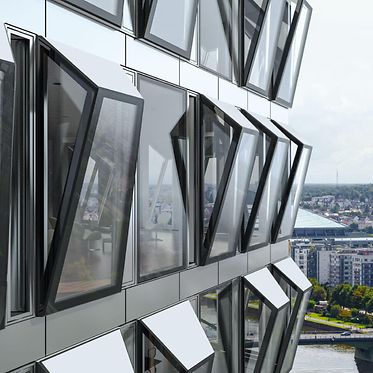

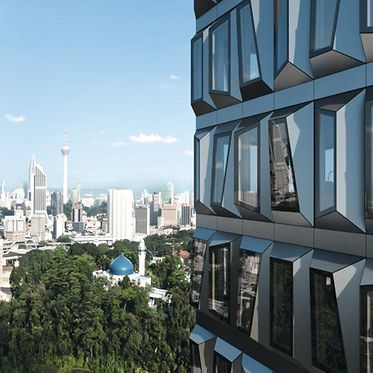

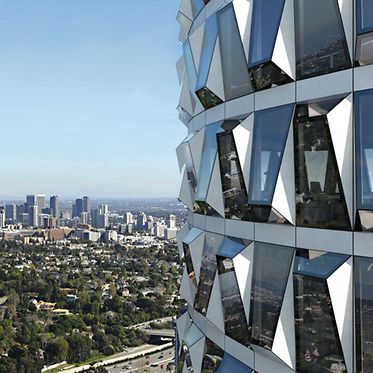

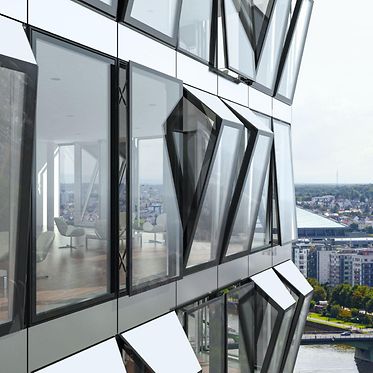

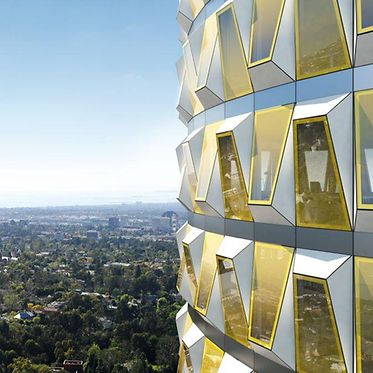

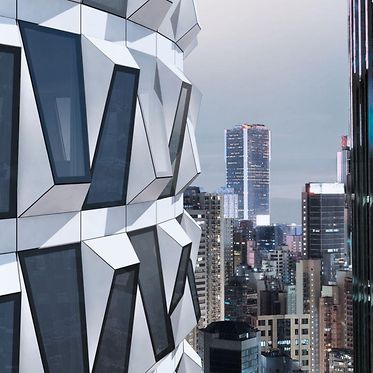

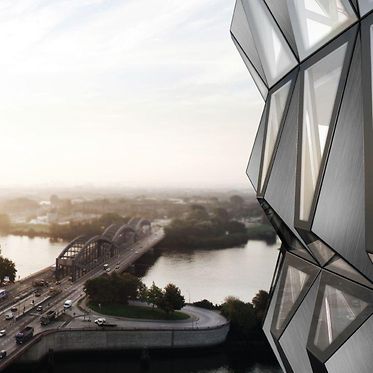

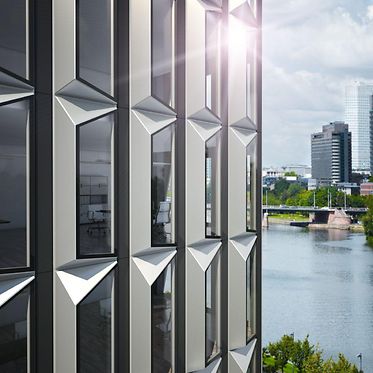

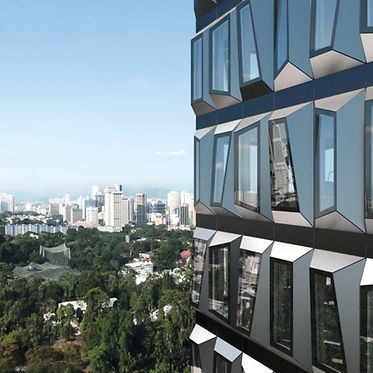

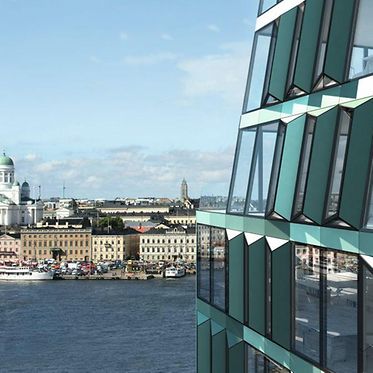

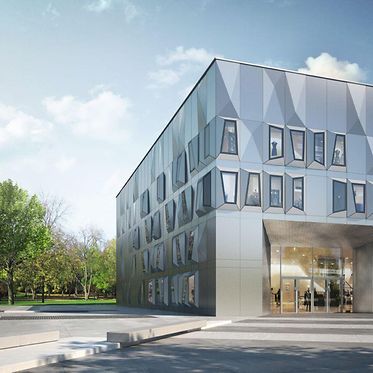

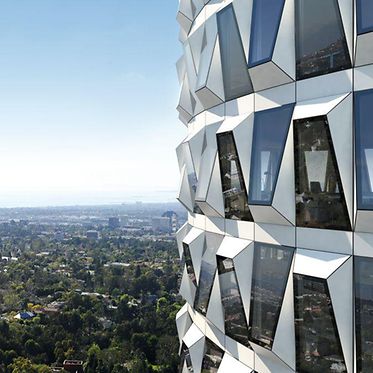

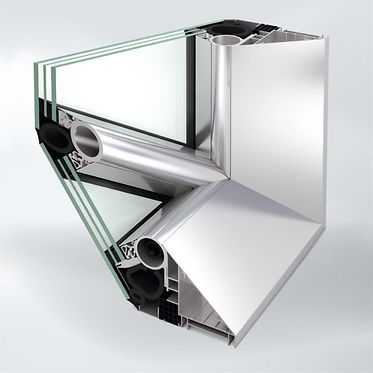

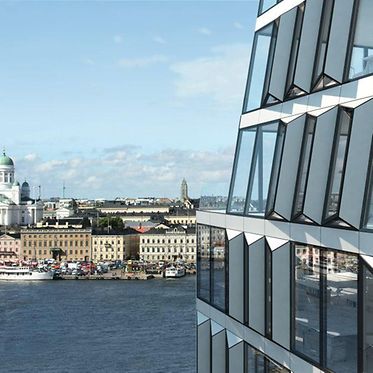

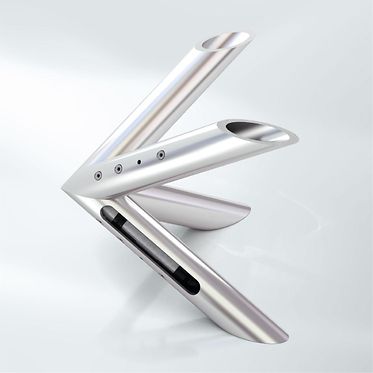

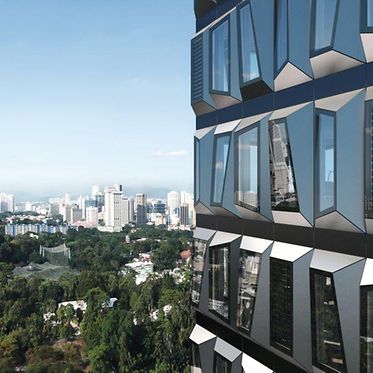

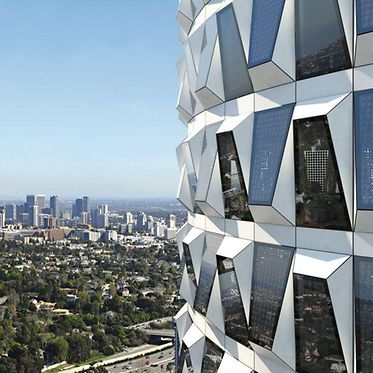

Geometrically freeform, three-dimensional building envelopes can be created easily, reliably and economically with the Schüco Parametric System.

The basis for this is the continuous digitalisation of the entire process chain combined with parametric methods and system models. This permits architects, specifiers and fabricators architectural design freedom with maximum system reliability. The multiple award-winning, highly thermally insulated system is a logical development of the Schüco system-based façades.

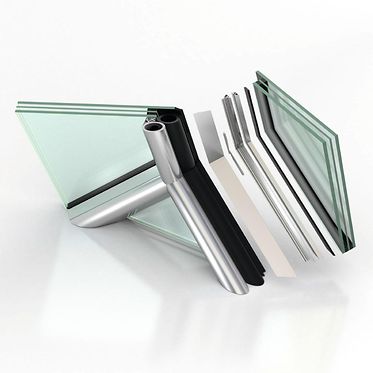

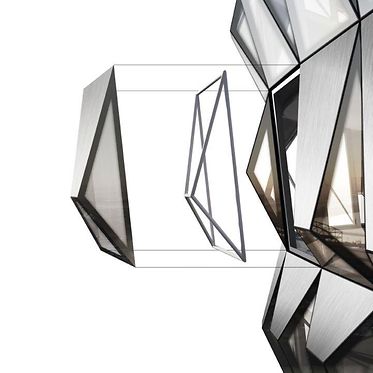

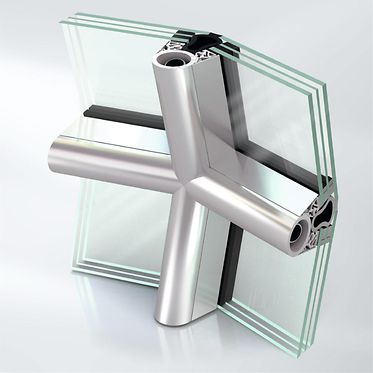

Individual 3D façade designs based on tried-and-tested Schüco systems ensure economical and quality-assured implementation of individual façade units.


Fabrication benefits

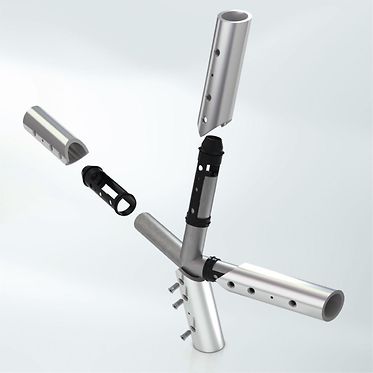

  • Simple and secure fabrication – even when individual unit geometries are very complicated – by means of CNC processing of the profiles, system construction with wide tolerances and individualised system components
  • Automatic, detailed design of the units with integrated plausibility check: parametric system modelling with substantial time savings in planning
  • Non-series components are automatically generated in the planning tools and are available as system articles (mass customisation)
  • Full Schüco 3D fabrication support, including machine control: reliable assurance of efficiency and level of quality of the profile processing details (file-to-factory) without interface problems

Technical information

Uf value of frame (≥)0.41 W/(m²·K)
Max. glass/panel thickness60 mm
Max. weight500 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityAE
WatertightnessRE 1200
Impact resistanceI5/E5
Suitable for safety barrier loadingYes
Total width of unit1500 mm
Total height of unit4000 mm
Max. unit weight500 kg
Face width, inside72.5 mm
Min. glass/panel thickness28 mm
Min.-max. glass/panel thickness28…60 mm
Max. width1500 mm
Max. height4000 mm
Installation angle90°
Integrated ventilationNo
Drainage levels1
Wind load resistance2.0/3.0 [kN/m²]
CE markingNo
StandardsEN ISO 10077, DIN EN 13830
AAMA certifiedYes
European Technical AssessmentNo


Schüco Parametric System – Architect Info 12

View onlineDownload

[B] Schüco Parametric System

View online

[D] Schüco Parametric System

View online

CAD data

Planning principles

View online

Rule details

View online

Test documents

Document type Test type Result Classification Document no. / Download
Kurzbericht Luftdurchlässigkeit
Widerstand gegen Windlast
RE 1200
Winddruck/-sog +/- 3,0 kN/m²
I5 / E5
View onlineDownload (pdf, 229.3 KB)
1-1 of 1
