TropTec AW 58.NI

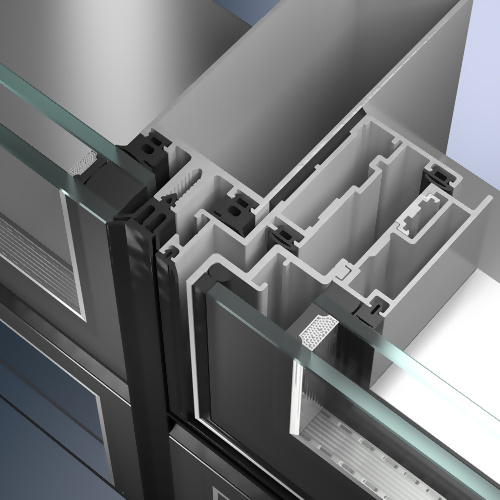

The Schüco TropTec AW 58.NI aluminium façade opening units have been specially developed for the markets with tropical climates. The outward-opening projected top-hung window can be seamlessly integrated into the Schüco TropTec SC 50.NI / SC 50 SG.NI mullion / transom façade system, as well as TropTec UC 65 SG.NI unitized facade system. The attractive design together with comprehensively tested and certified system features offer a high level of quality.

Wide range of applications
The new Schüco TropTec AW 58.NI opening unit system provides German engineering quality at local market prices. The units can be equipped with double insulating glass with vent weights up to 150 kg are possible. There are various locking options to be selected depending on market requirements, wind load and the size of the unit. Due to minimal face widths on the inside and an all-glass look on the outside, the insert units can be perfectly combined with the Schüco TropTec SC 50.NI, SC 50 SG.NI mullion / transom façades and Troptec UC 65 SG.NI unitized facade system.

  • Non-insulated aluminium facade insert units as outward-opening projected top-hung windows
  • Attractive design due to full integration into the framed or all-glasslook of the facade and narrow vent frame widths
  • Maximum vent sizes up to 1500 x 2000 mm
  • Maximum vent weights up to 150 kg
  • Wind load resistance and water tightness
