ADS 90 BR

PREVIEW SPECIFICATION

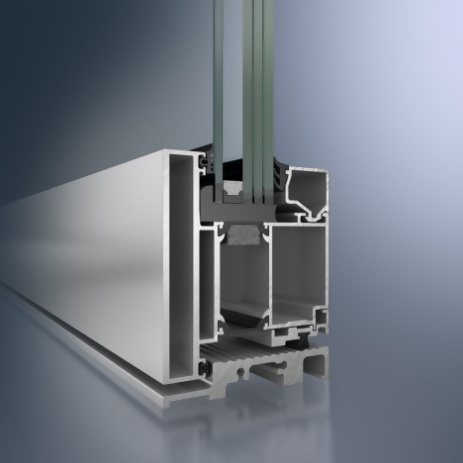

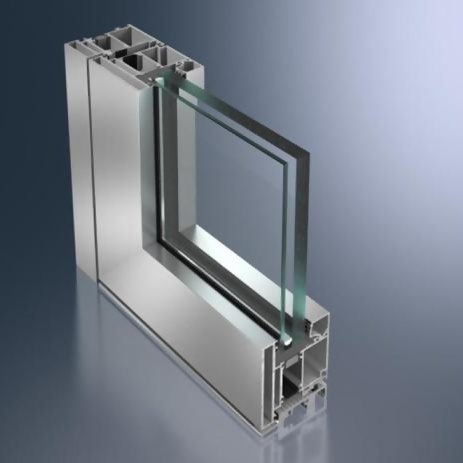

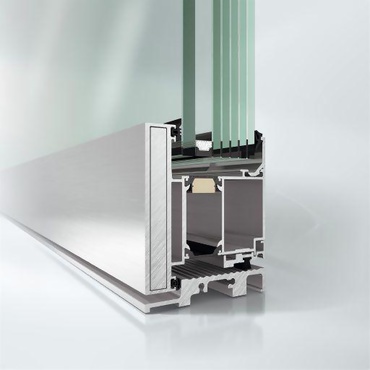

Schüco ADS 90 BR, thermally insulated aluminium door system, FB 4
With 90 mm basic depth.

Information:

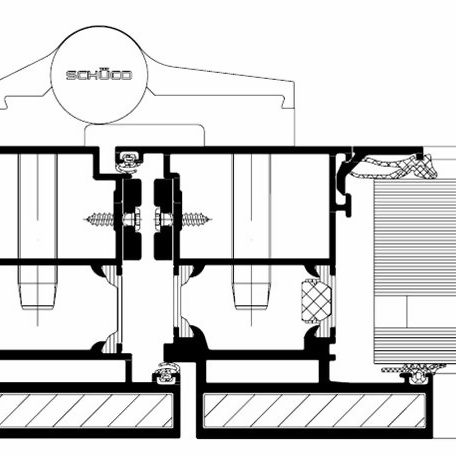

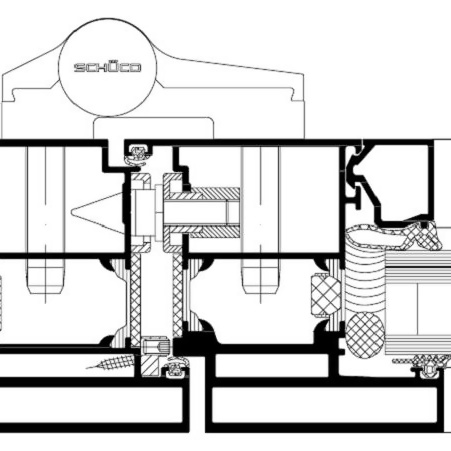

Bullet resistance in accordance with DIN EN 1522, security class: FB 4 and/or in conjunction with burglar resistance RC 2 – 3 (WK2-3)

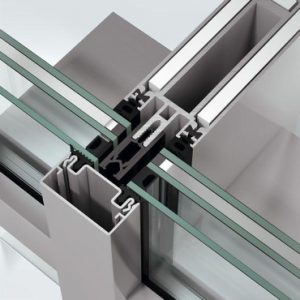

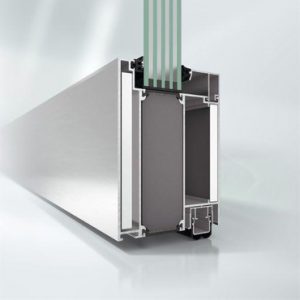

Combination with FB4 façade on request

Design features:

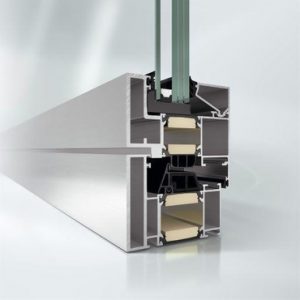

Door construction flush-fitted inside and outside with continuous 5 mm shadow joint on both sides.
The thermal breaking split insulating bars are fitted with foam insulation for high thermal insulation.
The outer and leaf frames have an external, 20 mm deep, hollow chamber, which is filled with aluminium reinforcing profiles as per the test certificate.
The corner cleats of the leaf profiles have guide bushes for rattle-free guidance of the shoot bolts.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.
For increased thermal insulation, glazing gaskets with fins must be used.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium rebate threshold, max. height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.

Leaf sizes up to max. 1.30 x 2.50 m and / or 300 kg are possible, depending on the glazing and the hinges

Profile basic depths:
Outer frame, mullion, transom 90 mm
Leaf frame 90 mm

Profile face widths:
Outer frame, outward-opening 48 mm
Outer frame, inward-opening 73 mm
Mullion / transom 94 mm
Leaf frame
(Door, outward-opening) 98 mm
(Door, inward-opening) 73 mm
