- Only one non-insulated profile system for a variety of requirements
- System fitting predominantly identical to those for Schüco Doors ADS 80 FR range
- Locking cams pre-assembled at the factory allow uniform and flexible installationof all fittings components in the multi-purpose groove
- The units can be fixed to the building structure quickly and economically using a variety of installation accessories
TECHNICAL INFOS
- System basic depth
-
- 65 mm
- Min. face width
-
- 137 mm
- Max. glass/panel thickness
-
- 39 mm
- Max. sound reduction Rwp
-
- 44 dB(A)
- Burglar resistance
-
- Up to RC2
- Area of application
-
- Residential projects
- Commercial projects
- Internal use
- Proof of durability
-
- DIN 18095
- DIN EN 1191
- Security system
-
- Ja
- Min.-max. glass/panel thickness
-
- …39 mm
- Mechanical strength
-
- Class 4
- Concealed fittings system
-
- Ja
- Max. height
-
- 3180 mm
- Max. width
-
- 3220 mm
- Min.-max. height
-
- 1750…3180 mm
- Min.-max. width
-
- 625…3220 mm
- Max. clear opening dimension (w x h)
-
- 2820 x 2988 mm
- Min. clear opening dimension (w x h)
-
- 460 x 1648 mm
- Type of design
-
- Single-vent
- Double-vent
- Single-vent and side section
- Double-vent and side section
- Single-vent with toplight
- Double-vent with toplight
- Single-vent with toplight and side section
- Double-vent with toplight and side section
- Single-vent with side section, right
- Single-vent with side section, left
- Single-vent with side section, right and left
- Single-vent with side section and toplight
- Double-vent with side section, right
- Double-vent with side section, left
- Double-vent with side section, right and left
- For use in glazing
- Special applications
-
- Anti-finger-trap door
- Opposed opening door
- Max. weight
-
- 120 kg
- Smoke protection
-
- RS1
- RS2
- Standards
-
- EN 1634
- DIN 18095
- SYSTEM / MATERIAL
-
- Aluminium
- ENERGY
-
- Non-insulated
- FUNCTIONS
-
- Smoke protection
- Burglar resistance
- Interior design
- Use
-
- Door
- Fixed glazing
- Direction of opening
-
- Inward and outward
- Side-hung
- Finger-trap protection
- Single and double-vent
- Emergency exit door
-
- Ja
- Installation option
-
- Vertical
- Basic protection against vandalism
-
- Ja
TENDER SPECIFICATIONS
PREVIEW SPECIFICATION

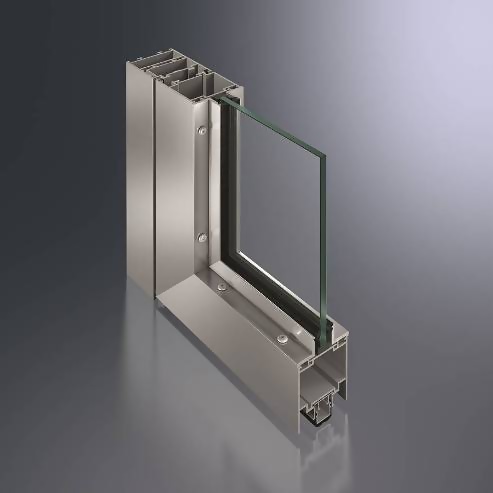

Schüco ADS 65.NI SP, non-insulated, smoke-proof, aluminium door system, in accordance with EN 1634-3 / DIN 18095
With a basic depth of 65 mm.
Smoke protection barrier, test certificate (general building authority test certificate) no.: P-5004 DMT DO
Design features:
The construction is flush-fitted on the outside and inside.
Only tested glass and/or infills belonging to the system may be used.
All glass and/or infills are sealed in using external and internal EPDM gaskets.
Only tested fittings belonging to the system may be used.
The sill is sealed by a gasket that lowers automatically when the door is closed.
The units must be installed in accordance with the guidelines of the general building authority test certificate.
The doors must be smoke-proof in accordance with EN 1634-3 / DIN 18095.
Identification is by means of a classification plate.
Profile basic depths:
Outer frame, mullion, transom,
leaf frame and sill 65 mm
Profile face widths:
Outer frame / sill, bottom 106 / 150 mm
Outer frame, side / top 69 mm
Mullion 94 mm
Transom 94 mm
Leaf frame (outward-opening) 98 mm
Leaf frame (inward-opening) 73 mm
Leaf profile, bottom 142 mm
Outer frame extension 34 mm
The door leaves must have a four-sided mitre-cut leaf profile.
-
Top attachment, inward opening
-

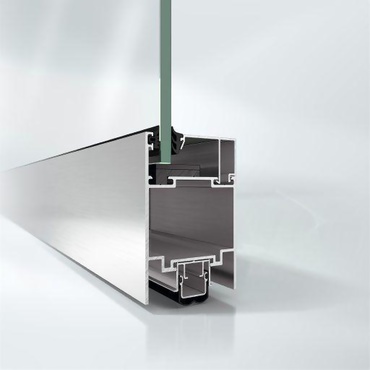

Sill attachment, inward opening with automatic door seal
-
Sill attachment, inward opening
-
Sill attachment, inward opening continuous vent with additional profile
-
Side wall attachment, inward opening
-
Interlock section of double leaf rebated door inward opening
