Door ADS 80 FR 30 for 30 minute fire resistance

The door and wall construction for multi-purpose applications, which has been tested in accordance with European standards (EN 1364 / 1634) and German standards (DIN 4102), fulfils all the requirements of fire protection classes EI30 (T30 / F30) and EW30

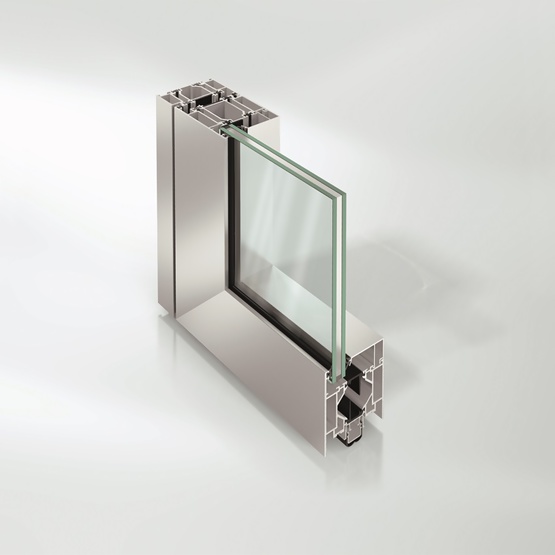

The series is based on highly stable 5-chamber hollow profiles with a basic depth of 80 mm and is also suitable for generous clear openings. In conjunction with optional fittings components, tailor-made multi-purpose doors can be created to meet additional requirements for building security and automation, e.g. burglar resistance up to RC 3, panic function, safety barrier loading, access control and sound reduction. Floor-to-ceiling, large glass formats and fixed glazing for indoor use that is suitable for safety barrier loading are also possible.

For special requirements such as those applicable to exits in nurseries, Schüco offers solutions for fire and smoke protection which ensure that the emergency exit door function is triggered using a door handle with an installation height of 1500 mm. Anti-finger-trap doors can also be installed. In addition, the use of profile-integrated door closers with a free swing function enables easy-access openings, which can also be used by smaller children or older people without any problems.

หมวดหมู่: Security Systems

PRODUCT BENEFITS

Design

Clear opening dimensions up to 1400 mm x 2988 mm and floor-to-ceiling glazing up to 1400 mm x 3000 mm for maximum transparency
Standard and angled glazing beads and centre glazing broaden the range of possible designs
Concealed fittings such as door hinges, door closers and pre-selector for an elegant appearance
Vertical silicone joints: combination of fixed glazing with corner constructions for inner and outer corners enable very narrow face widths

Automation

Side-hung door drives approved

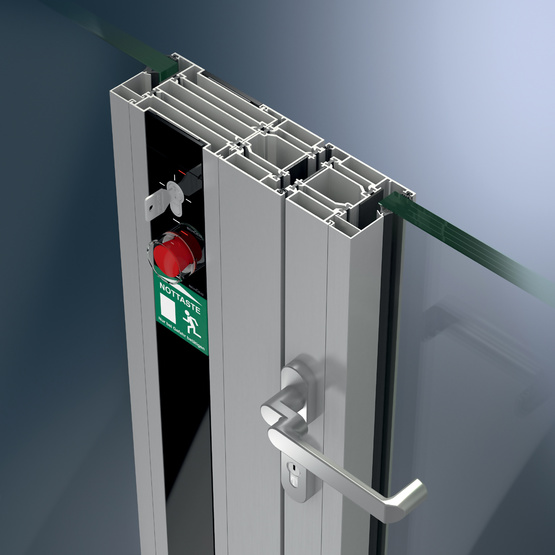

Emergency exit switches for securing exit areas
Access control systems in combination with Schüco Door Control System (DCS) possible
Schüco locks with electric coupling for access control; also with day setting
Schüco electric locks for single and multi-point locking up to RC 3: variable security depending on requirements

Security

Anti-finger trap protection: e.g. for side-hung door drives or use in nurseries to secure the secondary closing edges
RC 2 burglar resistance with latch and bolt locks for single and double-leaf doors
Fixed glazing with safety barrier loading, tested and approved in accordance with DIN EN 12600 and TRAV
Uniform, fully tested and certified range of fittings
Approved for internal and external single and double-leaf doors as well as fixed glazing

TECHNICAL INFOS

System basic depth

80 mm

Min. face width

137 mm

Uf value of frame (≥)

1.9 W/(m²·K)

Max. glass/panel thickness

42 mm

Max. sound reduction Rwp

46 dB(A)

Air permeability

Class 4

Watertightness

Class 9A

Burglar resistance

Up to RC3

Wind load resistance

Area of application

External use
Internal use

Proof of durability

200,000 cycles in accordance with DIN EN 12400
1,000,000 in accordance with DIN EN 12400

Security system

Min.-max. glass/panel thickness

…42 mm

Mechanical strength

Class 4
Class 3
Class 2

Suitable for safety barrier loading

Concealed fittings system

Max. height

3047 mm

Max. width

2938 mm

Min.-max. height

1732…3047 mm

Min.-max. width

625…2938 mm

Max. clear opening dimension (w x h)

2820 x 2998 mm

Min. clear opening dimension (w x h)

460 x 1648 mm

Type of design

Single-vent
Double-vent
Single-vent and side section
Double-vent and side section
Single-vent with toplight
Double-vent with toplight
Single-vent with toplight and side section
Double-vent with toplight and side section
Single-vent with side section, right
Single-vent with side section, left
Single-vent with side section, right and left
Single-vent with side section and toplight
Double-vent with side section, right
Double-vent with side section, left
Double-vent with side section, right and left
For use in glazing
For use in façade

Special applications

Anti-finger-trap door
Opposed opening door
Butt joint glazing
Floor plan, angled glazing

Max. weight

280 kg

Fire protection

EI30
F30
T30
G30
EW30

Smoke protection

SA
S200

Standards

DIN EN 1627
DIN 4102
EN 1634
EN 13501-2
DIN 18095
200,000 cycles in accordance with DIN EN 12400
1,000,000 in accordance with DIN EN 12400
EN 1364
Class 8

SYSTEM / MATERIAL

Aluminium

ENERGY

Thermally insulated

FUNCTIONS

Fire protection
Smoke protection
Burglar resistance
Increased security
Interior design

Max. glass size (w x h)

1400 x 3000 mm

Use

Door
Fixed glazing

Direction of opening

Inward and outward
Finger-trap protection
Single and double-vent
Outward
Inward

Emergency exit door

Installation option

Vertical

Basic protection against vandalism

TENDER SPECIFICATIONS/PREVIEW SPECIFICATION

Schüco ADS 80 FR 30-CE, thermally-broken aluminium system for smoke-proof EI2 30 S200C5 fire protection barriers, for outdoor use, with 80 mm basic depth.

Classification report No.:18-002402 in accordance with EN 16034:2014 + 14351-1:2006 + A2:2016

Design features:

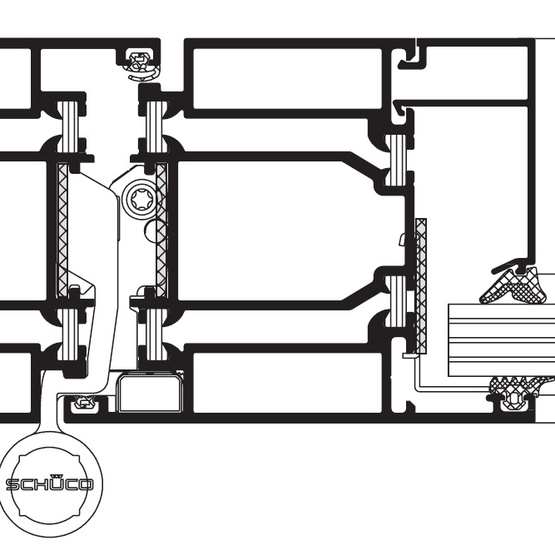

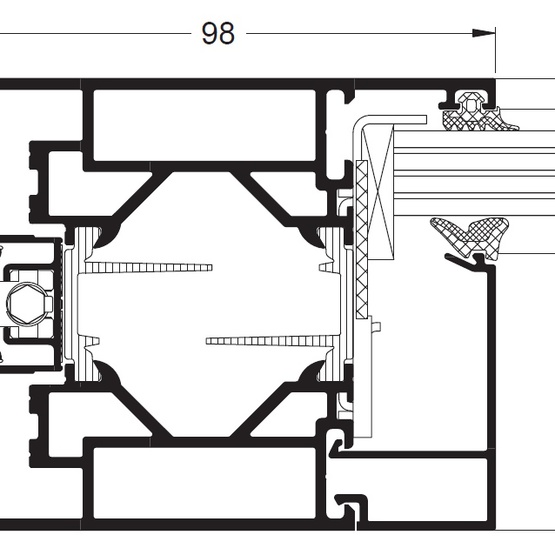

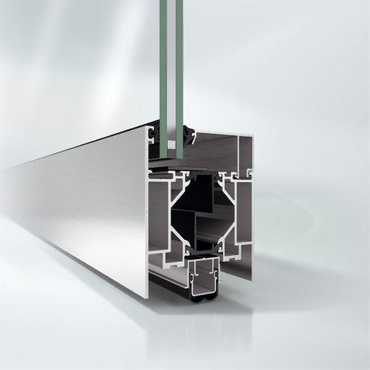

5-chamber aluminium hollow profiles.

Fire boards must be inserted in accordance with the system specifications.

Multi-purpose groove for push-in fixing of fittings (locks, security pins, electric strikes, mounting anchors, door hinges).

Only tested fire-resistant glass and/or infills that are listed in the classification report may be used.

In the rebate area of the outer/leaf frames, coated intumescent strips are inserted in the multi-purpose groove.

All fire-resistant glass and/or infills are sealed in using external and internal EPDM gaskets.

The sill is sealed by a gasket that lowers automatically when the door is closed.

Profile basic depths:

Outer frame, mullion, transom,

leaf frame, sill 80 mm
