CTB solar shading integrated in SFC 85 façade

Schüco CTB (Concealed Toughened Blind) sun shading is sun shading that is integrated into the SFC 85 façade and offers exceptionally high wind stability up to 30 m/s

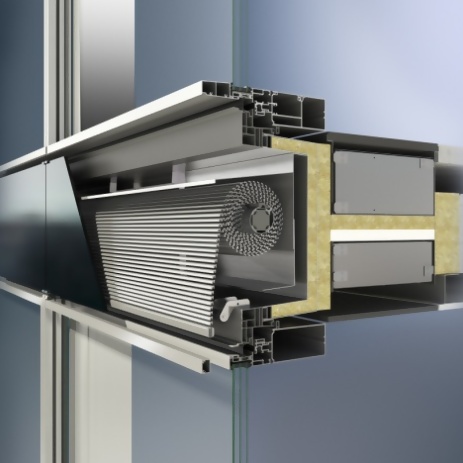

With the integration of Schüco CTB sun shading in the Schüco SFC 85 façade, the blind is fitted in an insulated installation space in front of the intermediate floor. The guide tracks of the sun shading also serve as façade cover caps and are perfectly embedded in the appearance of the façade.

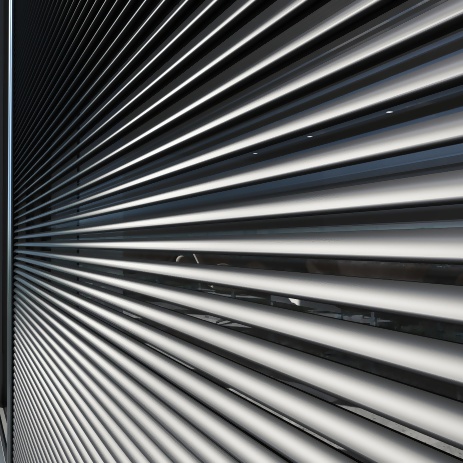

The sun shading is constructed from micro aluminium louvre blades. Optimal shading is possible and at the same time a high level of transparency provides views to the outside. Operated using a 230 V motor, the roll-up louvre blade blind can be concealed in the SFC 85 façade for a cohesive façade appearance. The extruded aluminium louvre blades can be incorporated perfectly into the external design of the building as their outer surfaces can be anodised.

The Schüco high-performance CTB sun shading can withstand extremely high wind loads and can be installed almost irrespective of wind conditions. The sun shading has been tested up to a wind force of 30 m/s, which corresponds to a force 11 wind, i.e. a violent storm.

The total solar energy transmittance gtotal has been calculated depending on the angle of the sun. In summer, with the sun is at angle of 50º, less than 2% of the sun’s energy entered the room. This significantly reduces heat build-up in rooms and the associated energy costs.

Max. height
  • 4000 mm
Max. width
  • 3000 mm
Min.-max. height
  • 1000…4000 mm
Min.-max. width
  • 650…3000 mm
Operating type
  • electric
Power supply
  • 230 V/50 Hz
Installation option
  • Integrated
Min. width
  • 650 mm
Min. height
  • 1000 mm
Max. area
  • 9 m²
  • Aluminium
Profile dimensions
  • 9.3 x 9.6 mm
Wind stability
  • 30 m/s
Louvre blade angle
  • Fixed
Louvre blade type
  • Micro louvre blade
  • Sun shading
  • Protection from heat
  • Screening
