TipTronic: the innovative electric window fitting of the future

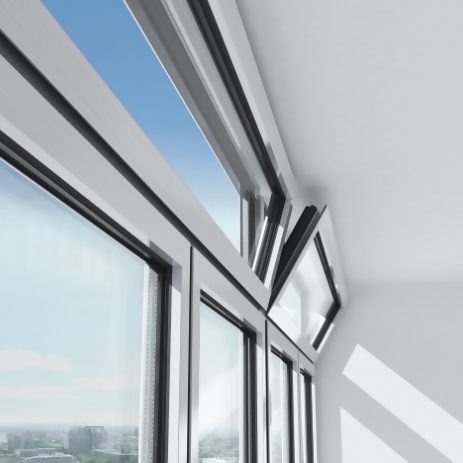

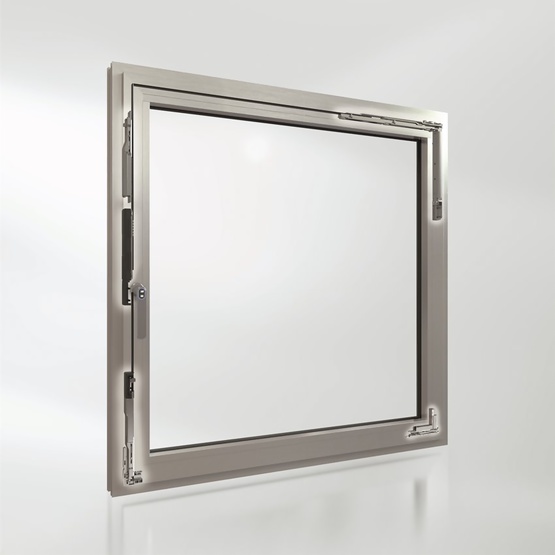

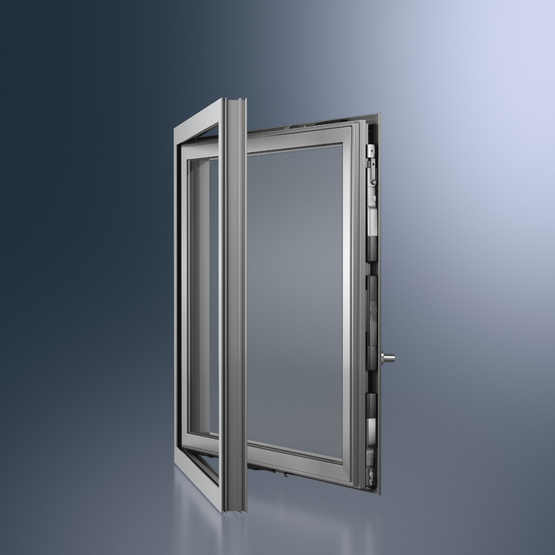

The fitting consists of mechatronic, profile-integrated 24 V DC sliding and lift or locking drives, as well as system-specific control components that are fully concealed in the vent. The tested structural properties of the sliding system in accordance with DIN 14351-1 are not affected by this.

Control concept for the Schüco TipTronic sliding system:

The system consists of sliding units for different opening types that can be controlled using the Schüco Building Skin Control (BSC) building management system.

A typical set-up in the building contains the sliding unit, power packs (28 V DC) and the Automation Manager, which enables the Schüco control unit (BSC) to be integrated in the overriding building infrastructure.
Button interfaces, KNX gateways, IP gateways or BACnet gateways can be connected to the Automation Manager as required.

In addition to power supply cables for the sliding units, a unit bus cable J-Y(St)Y (2*2*0.8) must be provided by the customer to control the units. Coordination with the electrical planning by the customer / measurement, control & regulation technology / technical building services etc. is absolutely essential for this.

Taking into consideration the design loads/weights, the required fitting and drives must be used in accordance with the system manufacturer’s size tables (in accordance with the Schüco order and fabrication manuals), including the accessories within the system profiles that are required for proper use and full functionality.

After fabrication and installation, the unit must be commissioned to guarantee that it functions properly. A 230 V power supply must be supplied by the customer for this.

At the latest following the complete operational check and commissioning, a test log must be created and given to the client so that the service can be accepted.

When planning and designing the systems, a risk analysis must be carried out.
The electrically operated sliding windows in the sliding system count as machinery within the meaning of Machinery Directive 2006/42/EG (implemented in Germany by the Ninth Act on Product Safety).
The manufacturer must therefore conduct and document a risk assessment when planning the automatic sliding units in order to ensure that the sliding systems can be operated safely within the meaning of the Machinery Directive.

The superordinate operating units and functions that are covered with the BCS components are listed in separate items and, if necessary, trades.

For controlled operation, the customer must ensure a permanent power supply of 230 V/AC for the power packs for the units and BCS control components.

BF 416 fitting for ASS 39 SC TipTronic, sliding window and door system

The required fitting must be selected using the system manufacturer’s size tables, taking into consideration the design loads/weights.

Drive technology consists of:
E-locking with TipTronic fittings components
Sliding drive with toothed belt and tension roller
“On” button, “Tilt” button or radio control
Control unit
Cable link connector by means of a ground cable
Prepared, reverse polarity cables

Drive technology functions:
Electric release and opening of vent
Operation of the vent into the “crack ventilation” position or into any position between closed and fully open vent
Finger-trap protection thanks to dynamic force restriction in accordance with DIN 18650
Reference cycle possible (following reset) via operating switch on the vent or wall-mounted switch

Drive technology characteristics:
The sliding movement is achieved by a sliding drive across a toothed rack.
TipTronic fittings used for locking in real time (approx. 1 second).
Manual unlocking is possible, if required.
The mechanical interfaces of the drive fittings system are optimised to the profile and fittings.
Installation of fittings using piercing technology
No programming necessary for commissioning
Can be operated using an “On” button, a “Tilt” button or by radio control.
Technical data:
Nominal voltage Input: 230 V AC, 50…60 Hz
Output: 28 V DC
Rated current Input: 0.75 A (AW2), 1.5 A (AW4)
Output: 2.5 A (AW2), 5 A (AW4)
Protection rating IP 20

The vents are fitted with a two-piece roller carriage for vent loads of up to 160 kg.
The sliding vents are locked using the mechatronic TipTronic fitting.
Anti-lift locks are still fitted to the systems.

Includes all the accessories required for proper use and full functionality, such as motor brackets, additional fitting components (hinges), cover profiles, control unit (integrated in profile), interconnecting cable as well as other installation accessories for the window vents.
The vent must be tested when installed (building site) in accordance with Schüco guidelines.
A test log must be created and handed over to the client.
When planning and designing the systems, refer to the VFF information sheet KB.01 for power-operated windows and GUV guideline 16.10.

BF 424 fitting for ASE 60/80 TipTronic, sliding / lift-and-slide doors
Burglar resistance in accordance with DIN EN 1627, RC 2 (WK2).

Design options
1 x sliding vent
1 x fixed vent
1 x fixed light

The required fitting must be selected using the system manufacturer’s size tables, taking into consideration the design loads/weights.

Drive technology consists of:
Locking with TipTronic fittings components
Sliding drive with toothed rack
Operating switch in vent (operation of individual vents)
Central control (via Building Skin Control / BCS)
Without cable link connector between outer and vent frame, with power supply bus and sliding contacts
Prepared, reverse polarity cables

Drive technology functions:
Fully concealed drive and fittings components
Electric release and opening of vent
Moving the vents into any position between closed and fully open
Finger-trap protection thanks to dynamic force restriction in accordance with DIN 16005
Increased finger-trap protection via sensor strip (depending on risk assessment);
Contactless finger-trap protection via security sensors (depending on risk assessment)

Drive technology characteristics:
The sliding movement is achieved by a sliding drive using a toothed rack.
If required, the system can be unlocked manually by specialist personnel without mechanical machining.
The mechanical interfaces of the drive fittings system are optimised to the profile and fittings.
All of the e-fittings components can be accessed without dismantling the vent.

Technical data:
Nominal voltage Input: 230 V AC, 50…60 Hz
Output: 28 V DC
Power supply Input: 1.5 A (AW4)
Output: 5 A (AW4)
Protection rating IP 22

The vents are fitted with rollers for sliding vents of up to 450 kg / lift-and-slide vents of up to 600 kg.
The sliding units are locked using the mechatronic TipTronic fitting.

The vent must be tested when installed (building site) in accordance with Schüco guidelines.
A test log must be created and handed over to the client.

BF 417 fitting for ASS 77 PD sliding doors (2 tracks)
Burglar resistance in accordance with DIN EN 1627, RC 2 (WK2).

Design options
1 x sliding vent
1 x fixed vent

The required fitting must be selected using the system manufacturer’s size tables, taking into consideration the design loads/weights.

Operating concept
Wall-mounted switch
BUS system / KNX system coupling
With Fingerprint system or DCS – Door Control System (Schüco building automation)

Drive technology consists of:
Mechatronic e-locking
Sliding drive with toothed belt and tension roller
Prepared, reverse polarity cables

Drive technology functions:
Electric locking/unlocking and opening/closing of the vent
Moving the vent into any position between closed and fully open
Finger-trap protection thanks to dynamic force restriction in accordance with DIN 16005
Increased finger-trap protection via sensor strip (depending on risk assessment);
Contactless finger-trap protection via security sensors (depending on risk assessment)

Drive technology characteristics:
The sliding movement is achieved by a sliding drive across a toothed rack.
Mechatronic locking, time approx. 2-3 seconds.
If required, the system can be unlocked manually by specialist personnel without mechanical machining.
The mechanical interfaces of the drive fittings system are optimised to the profile and fittings.
Commissioning possible without a PC.

Technical data:
Nominal voltage Input: 230 V AC, 50…60 Hz
Output: 28 V DC
Power supply Input: 1.5 A (AW4)
Output: 5 A (AW4)
Protection rating IP 22 for fittings components

The vents are fitted with rollers for vent loads of up to 500 kg.
The sliding vents are locked using the mechatronic fitting.

The vent must be tested when installed (building site) in accordance with Schüco guidelines.
A test log must be created and handed over to the client.
