Window AWS 65 with continuous centre gasket

Continuous centre gasket with Schüco SimplySmart technology now also for series with 65 mm basic depth

The concept of the continuous centre gasket with Schüco SimplySmart technology is a tried-and-tested solution for Schüco window systems with 75 mm basic depth that is now also being used in the basic depth of 65 mm. As a consequence, markets with only average thermal insulation requirements can also benefit from this technology in future. Here it serves as a supplement to the two design options that were available hitherto with a vulcanised gasket frame and gasket supplied by the metre in combination with moulded pieces made from EPDM.

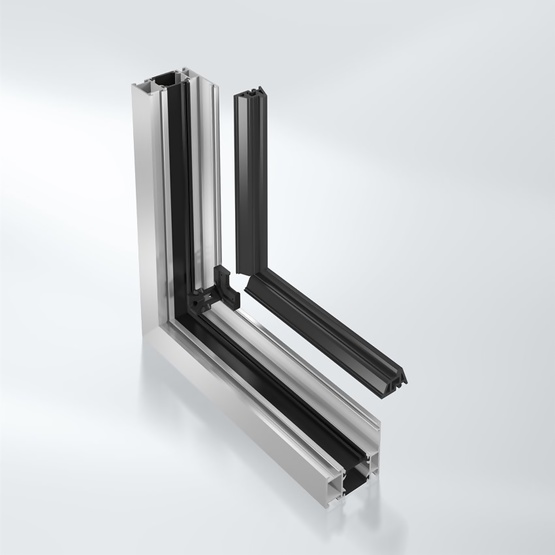

The system, which consists of a newly designed centre gasket contour made from fabrication-friendly microcellular rubber and a corner seal, offers an intelligent combination of several functions – self-positioning of the centre gasket, sealing of the mitre cut on the profile and sealant control for optimum sealing of the corner area. In addition to an optimisation of the thermal insulation properties of the overall system, this also ensures that fabrication is even more simple and fault-tolerant with a considerable reduction in fabrication and assembly time. The weathertightness values realised in the process correspond to those achieved for the two fabrication variants that were already available.




  • Thermal insulation properties improved by 0.1 W/(m²K) to a Uf value of 2.1 W/(m²K) compared with the previous standard centre gasket


  • Schüco AWS 65 design options fully available: Soft Line, Multi Contour, Residential Line, Block System and Window Façade


  • Aluminium
  • Thermally insulated
  • Classic
  • standard
  • Decentralised ventilation
  • Burglar resistance
  • Increased security
  • Increased sound reduction
  • Easy operation
  • Motorisation
  • Maximum load
System basic depth
  • 65 mm
Min. face width
  • 91 mm
Uf value of frame (≥)
  • 1.9 W/(m²·K)
Max. glass/panel thickness
  • 55 mm
Max. vent width
  • 1700 mm
Max. vent height
  • 2500 mm
Max. sound reduction Rwp
  • 47 dB(A)
Air permeability
  • Class 4
  • Class 9A
Burglar resistance
  • Up to RC3
Wind load resistance
  • Class C5 / B5
CE marking
  • Ja
Uw value of window (≥)
  • 1 W/(m²·K)
Max. vent weight
  • 250 kg
Min.-max. vent height
  • 490…2500 mm
Min.-max. vent width
  • 450…1700 mm
Area of application
  • External use
  • Residential projects
  • Commercial projects
Proof of durability
  • Class 3
Surface finishes
  • Powder
  • Anodised
  • Paint
Opening type: TipTronic, outward-opening
  • Projected top-hung
Opening type: TipTronic, inward-opening
  • Turn/tilt
  • Side-hung
  • Bottom-hung
  • Toplight
Opening type: manual, outward-opening
  • Side-hung
  • Projected top-hung
  • Projected side-hung
  • Horizontal pivot
  • Vertical pivot
  • Double-vent side-hung / side-hung
Opening type: manual, inward-opening
  • Turn/tilt
  • Side-hung
  • Bottom-hung
  • Double-vent turn/tilt / side-hung
  • Double-vent side-hung / side-hung
  • Tilt/slide
  • Tilt-before-turn
  • Toplight
  • Horizontal pivot
  • Vertical pivot
Min.-max. glass/panel thickness
  • 11…55 mm
Barrier-free (≤) 20 mm
  • Ja
  • cradle2cradle SILVER
Operating forces
  • Class 1
Mechanical strength
  • Class 4
Suitable for safety barrier loading
  • Ja
Concealed fittings system
  • Ja
Width of vent frame
  • 75 mm
Corrosion protection class for fittings
  • Class 5
Ug value of glass (≤)
  • 0.3 W/(m²·K)
Glass composition
  • Triple glazing
Barrier-free operating forces in accordance with DIN 18040
  • Ja
Total basic depth
  • 75 mm
  • Ja
  • Ja
Shear bond
  • Ja
  • Ja
Drainage levels
  • 3
Integrated sun shading
  • Ja
Security glazing
  • Ja
Opening angle
  • 180°
Outer frame face width
  • 51 mm
Vent frame face width
  • 40 mm
Max. face width of mullion
  • 250 mm
Min.-max. face width of mullion
  • 76…250 mm
Max. face width of meeting stile
  • 163 mm
Min.-max. face width of meeting stile
  • 148…163 mm

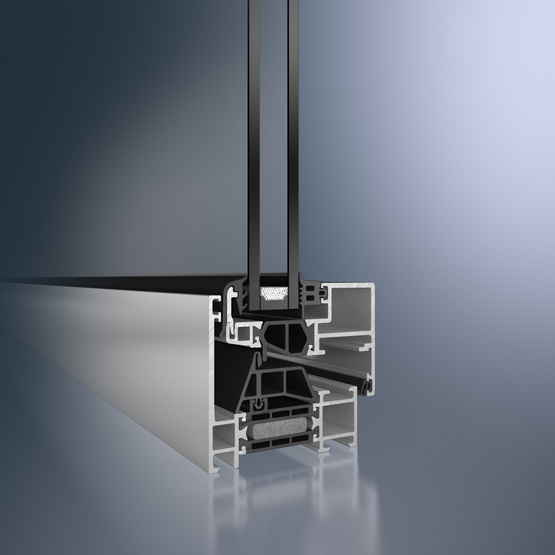

Schüco AWS 65, thermally insulated aluminium window system
With 65 mm basic depth.

Design features:
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted on the outside.
The high-volume hollow chamber profile centre gasket is located in the area of the insulation zone.
The system must be fitted with square glazing beads.
The glazing beads are installed with plastic clips to compensate tolerances.

Profile basic depths:
Outer frame, mullion, transom 65 mm
Vent frame 75 mm
Vent frame, flush-fitted 65 mm

Profile face widths:
Outer frame, bottom 104 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Vent frame (window) 41 mm
Vent frame (window door) 61 mm
Double-vent profile (window) 67 mm
