Window System Arte 66

Filigree highly thermally insulated tilt and turn windows and glazing made of steel

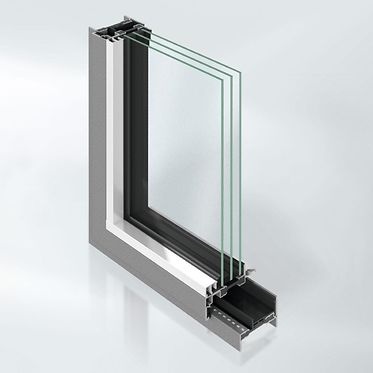

With Janisol Arte 66, Jansen is expanding the Janisol Arte system family with an attractive tilt and turn window solution. Increasing the basic construction depth to 66mm enables higher structural values, easy installation of 3-pane insulating glass and higher sound insulation values for the elements. And all this with the simultaneous use of concealed window fittings.

The Janisol Art 66 window and fixed glazing system combines solutions for all requirements in one system and forms the basis for a wide range of applications in the building envelope. Functional advantages are combined with architectural and design aspects. Matched components combine advantages such as high thermal insulation, narrow face widths and concealed fittings for inward-opening windows. Depending on the architectural requirements, the window system can be used as a perforated window or window band. In addition, the system can be used for a wide variety of inward opening variants.

Janisol Arte 66 offers energy-optimised thermal insulation with a Uf value of ≥ 1.8 W/(m²K) with a face width of 54 mm and a faceplate width of only 76 mm. It has a highly static, glass-fibre reinforced PUR insulator and can be equipped with an additional insulation in frame or glass rebate.

The system convinces with its filigree appearance, extensive profile and glazing bead geometries that allow individual and flexible design. The concealed fittings allow a consistent design and clear lines.

Processing:The use of a new glazing bead system and the newly developed seal for dry glazing make glass installation easier, as does the system-integrated Euronute for fitting. The use of the zinc-iron hot-dip coated steel surface (ZF 100) also ensures optimised welding behaviour.
