Door System ADS 75.SI

Highly thermally insulated for the most demanding energy efficiency, functionality and design requirements

The Schüco ADS 75.SI (Super Insulated) door system offers outstanding thermal insulation values in combination with groundbreaking functionality and huge creative freedom – the ideal basis for versatile use in high-end residential and commercial buildings with the highest energy management requirements.

The system, thanks to its diverse fittings options and compatibility with Schüco systems, enables door solutions individually tailored to all the requirements of modern architecture, e.g. multifunctional doors in security-relevant areas of the building which can be integrated in building automation systems, Heavy Duty doors able to withstand high loads in heavily used entrance and exit areas, or easy-access designs.

Enhanced by a timeless design: with Soft Line (SL) and Residential Line (RL) design options, the aluminium door system harmonises excellently with Schüco façades and window systems and provides high-quality architectural solutions.

หมวดหมู่:

Fabrication benefits

  • Automatic door seal
  • Easy-access solutions
  • Concealed hinges
  • Leaf-enclosing infill Easy integration of security and automation components, e.g. panic fittings, emergency exit control, access control and radio control
  • Interfaces optimised for integration in the building management system

Technical information

System basic depth75 mm
Uf value of frame (≥)1.6 W/(m²·K)
Max. height2500 mm
Max. width1250 mm
Max. glass/panel thickness57 mm
Area of applicationResidential projects, Residential projects, Commercial projects
Air permeabilityClass 2
WatertightnessClass 5A
Wind load resistanceClass C3
Burglar resistanceUp to RC3
Impact resistanceClass 1
Max. vent weight150 kg
Min.-max. height…2500 mm
Min.-max. width…1250 mm
Min. face width147 mm
Min.-max. glass/panel thickness10…57 mm
Vent optionAll around, Sill rail profile
Infill typeInsert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door thresholdAluminium, PVC-U, Automatic door gasket
Opening typeSide-hung, Outward, Inward
DIN directionDIN LH / RH
Mechanical strengthClass 3
Proof of durabilityClass 6
Max. sound reduction Rwp43 dB(A)
CE markingYes

Specification texts

Schüco ADS 75.SI, highly thermally insulated aluminium door system
With 75 mm basic depth.

Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.

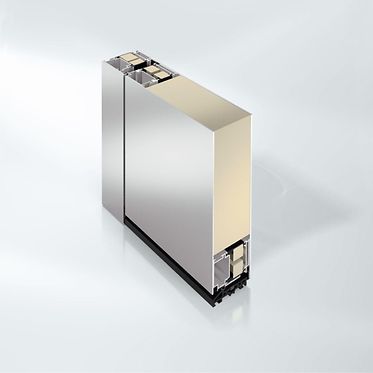

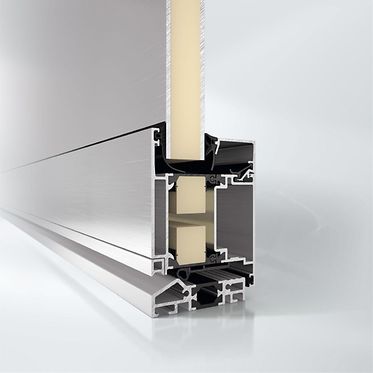

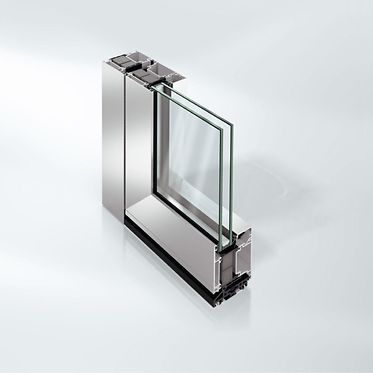

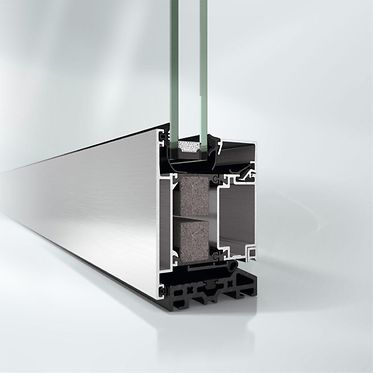

The thermal breaking split insulating bars are fitted with foam insulation for high thermal insulation.
The door leaf profiles are fitted with thermal breaking split insulating bars.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.
For increased thermal insulation, glazing gaskets with fins must be used.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.

Profile basic depths:
Outer frame, mullion, transom 75 mm
Leaf frame (door), flush-fitted 75 mm
Leaf frame (door) with internal rebate 85 mm

Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
Leaf frame
(Door, with internal rebate) 73 mm
Meeting stile profile 65 mm
Leaf mid-rail 94 mm

download

CAD data

Planning principles

View online

System drawings

View online

Rule details

View online

Design suggestions

View online

Planning principles

View online

System drawings

View online

Rule details

View online

Planning principles

View online

Planning principles

View online

System drawings

View online

Test documents

Document type Test type Result Classification Document no. / Download
Prüfzeugnis Wärmedurchgangskoeffizient 1,6 – 2,1 View onlineDownload (pdf, 520.4 KB)
Prüfbericht Dauerlaufprüfung 100.000 DIN EN 1191 View onlineDownload (pdf, 594.6 KB)
Kurzbericht Dauerlaufprüfung 100.000 DIN EN 1191 View onlineDownload (pdf, 124.9 KB)
Kurzbericht Rauchschutz DIN EN 1634-3 View onlineDownload (pdf, 125.5 KB)
