Door System FireStop ADS 90 FR 30

Excellent design combined with proven fire protection for 30 minutes of fire resistance

The Schüco FireStop ADS 90 FR 30 fire door is part of the Schüco FireStop system platform and offers an attractive fire door and wall range, tested in accordance with EN 1634/EN 1364 and DIN 4102 for 30 minutes of fire resistance.

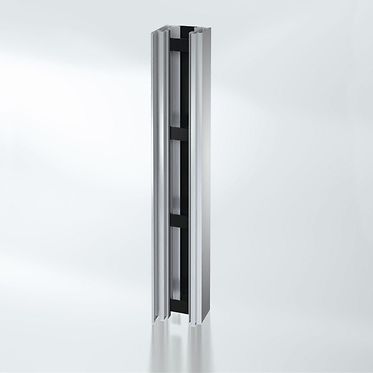

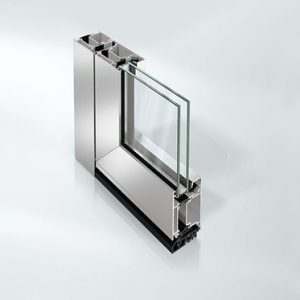

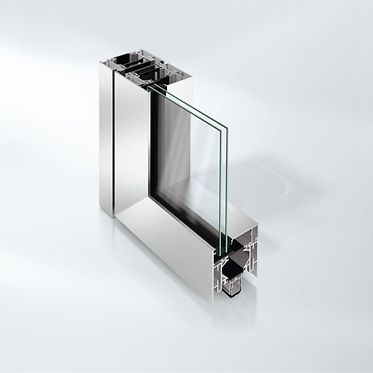

The thermally broken fire-resistant construction with a basic depth of 90 mm is distinguished by its unique elegance: extremely narrow profile face widths allow for the greatest possible transparency, while integrated closers and concealed door hinges impress with their minimalist design. The versatile design options also allow the use of glass or panel infills.

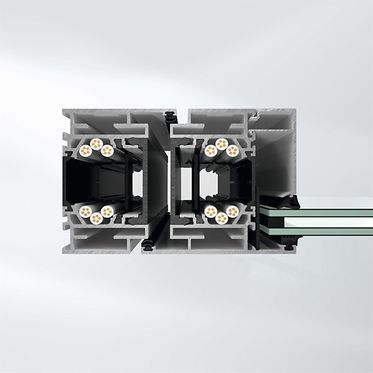

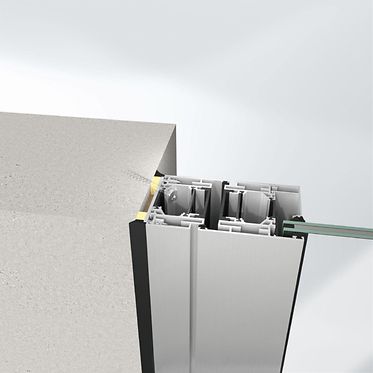

The other strengths of the door system include high flexibility and efficiency in terms of design, fabrication and installation: fittings and locks can be easily inserted in the aluminium system, for example without the need for prior machining, and covered with a simple functional make-up piece. The open-rebate profile geometry also enables subsequent changes in application while the building is in use, while still maintaining its approval for fire-protection. The inter-compatible system can therefore be upgraded quickly and economically with additional electrical components, and be functionally enhanced in a variety of ways.

The pioneering aluminium door system offers specifiers, architects and fabricators new flexibility when it comes to reliably adhering to building regulations – with a range of designs to meet the highest requirements.

หมวดหมู่:

Fabrication benefits

  • No complex machining necessary for fittings installation
  • Comprehensive fixing system for installing fittings virtually without any tools
  • Free choice of the most efficient fabrication type ensures attractive cost benefits: framed doors or T-cleat constructions are possible, depending on requirements

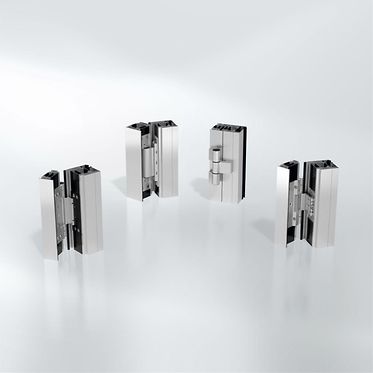

  • Fast, efficient installation and removal of aluminium and stainless steel barrel hinges with increased load transfer
  • Retrospective installation or removal of fittings components: e.g. installation of electric strikes, even when already in operation
  • Minimised use of glazing clips for doors

Technical information

System basic depth90 mm
Max. height3284 mm
Max. width3390 mm
Max. glass/panel thickness20 mm
Area of applicationInternal use, Residential projects, Residential projects, Commercial projects
Min.-max. height1732…3284 mm
Min.-max. width625…3390 mm
Max. clear opening dimension (w x h)3022 x 3100 mm
Min. clear opening dimension (w x h)456 x 1648 mm
Min. face width127 mm
Min.-max. glass/panel thickness…20 mm
Type of designSingle-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left
Concealed fittings systemYes
Proof of durability200,000 cycles in accordance with DIN EN 12400
Max. sound reduction Rwp45 dB(A)
Security systemYes

Test documents

Document type Test type Result Classification Document no. / Download
Prüfbericht Schallmessung Rw 32 – 44 View onlineDownload (pdf, 818.5 KB)
Prüfbericht Schallmessung Rw 34 – 52 View onlineDownload (pdf, 664.0 KB)
Prüfbericht Schallmessung Rw 30 – 44 View onlineDownload (pdf, 575.7 KB)
Zulassung Zulassung F30 View onlineDownload (pdf, 2.6 MB)
Zulassung Zulassung T30-1, T30-2 View onlineDownload (pdf, 934.5 KB)
Zulassung Zulassung T30-1, T30-2 View onlineDownload (pdf, 4.6 MB)
