Façade System FWS 60 CV.HI

Highly thermally insulated façade with visually perfect integration of window vent and load-bearing structure

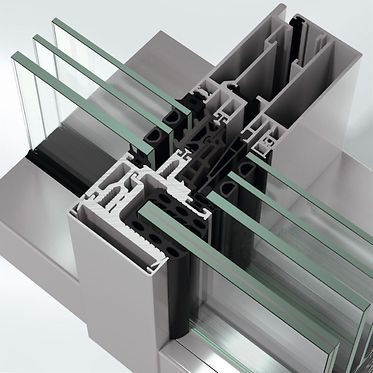

The Schüco FWS 60 CV.HI (Concealed Vent High Insulated) façade system harmoniously combines slimline face widths with a high degree of functionality and outstanding thermal insulation. With a face width of just 60 mm, opening units and fixed fields are indistinguishable from the outside. On the flush, closed inside, only a slender shadow gap and the window handle betray the presence of the window vents.

Large unit heights with floor-to-ceiling side-hung vents ensure maximum façade transparency. Structurally advanced units as well as toplights and bottom lights provide increased design freedom.

A further benefit of the highly thermally insulated façade system is the integration of automatic ventilation control, e.g. for night-time cooling, which can be implemented with mechatronic vents – even as a bottom-hung vent without a window handle.


Fabrication benefits

  • Prefabricated adapter profiles with acrylic tape for direct bonding of the glass ensure efficient fabrication
  • System-specific, individual system for attachment to building structure: Easier installation for a wide variety of different application options
  • Schüco modular system guarantees a high degree of modularity and flexibility

Technical information

Uf value of frame (≥)1.4 W/(m²·K)
Min. face width60 mm
Min.-max. system basic depth65…85 mm
Max. glass/panel thickness50 mm
Max. weight160 kg
Surface finishesPowder, Anodised, Paint
Air permeabilityClass 4
Max. sound reduction Rwp49 dB(A)
WatertightnessE 900​
Impact resistanceClass 5
Burglar resistanceUp to RC2
Suitable for safety barrier loadingYes
Min. system basic depth65 mm
Max. system basic depth85 mm
Min. basic depth of mullion65 mm
Max. basic depth of mullion85 mm
Min.-max. basic depth of mullion65…85 mm
Max. vent width1476 mm
Max. vent height3176 mm
Max. vent weight160 kg
Total width of unit1500 mm
Total height of unit3200 mm
Max. unit weight160 kg
Min.-max. face width60 mm
Face width of pressure plate / cover cap profile60 mm
Face width, outside60 mm
Face width, inside60 mm
Face width of mullion60 mm
Face width of frame60 mm
Face width of transom60 mm
Min. glass/panel thickness22 mm
Min.-max. glass/panel thickness22…50 mm
Max. width1500 mm
Max. height3200 mm
Installation angle90°
Drainage levels3
Concealed opening unitYes
Wind load resistanceClass C2 / B3
Sun shading attachmentYes
Integrated sun shadingNo
Spandrel safety barriersIntegrated
Profile-integrated spandrel safety barrierYes
CE markingYes
StandardsDIN EN 1627, EN 14351, General building authority approval
Building authority approvalYes

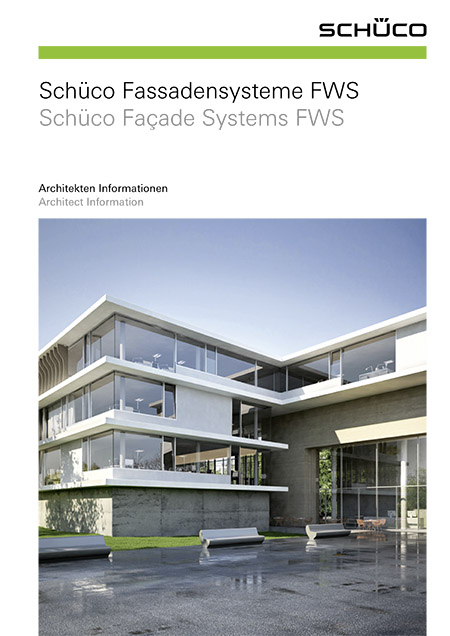

Schüco Façade Systems FWS, FWS 60 CV, FWS 35 PD, FWS 50/FWS 60

View onlineDownload

Attachments to building structure

View online

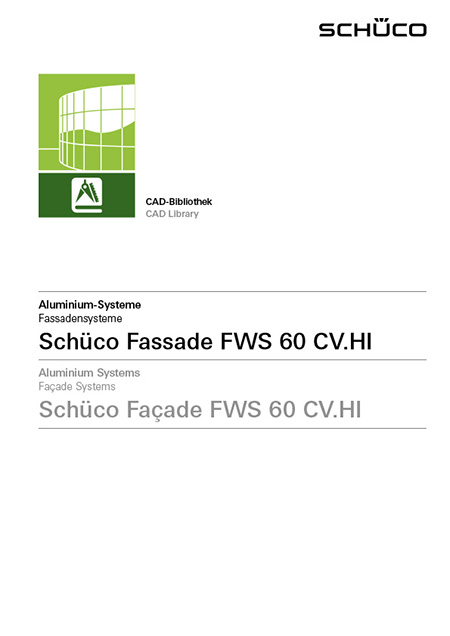

CAD data
