VISS Basic

Reinterpretation of the add-on construction: Optimised steel system for innovative solutions with maximum process reliability during fabrication

With the system enhancement in the form of the new Jansen VISS Plus add-on construction, planning and fabricating unusual façade solutions is even easier and more reliable. The steel system solution, which can be mounted on any support, offers a wide range of new features for architects and fabricators which, in addition to a multifunctional basic profile, includes innovative system components such as standardised T-cleats for all load-bearing profiles and a low gasket height with just three drainage levels. The reduced number of system components means planning, fabrication and installation are more efficient at every stage of the process. This ensures fast construction of the building in the best possible quality.


Fabrication benefits

  • Small number of components, easy fabrication, efficient solutions
  • High level of process reliability during fabrication, e.g. due to controlled contact pressure with visual control

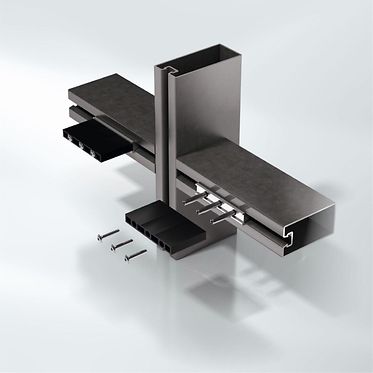

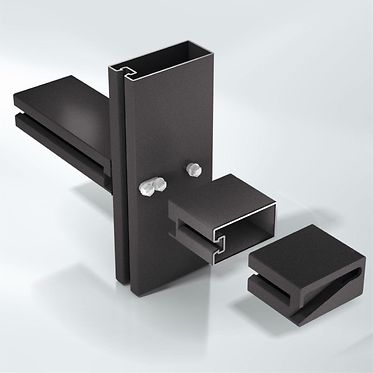

  • Multifunctional basic profile for all applications with variable options for fixing to the load-bearing profile – from welding and screw-fixing through to the use of Hilti powder-actuated fasteners
  • Basic profile with optimum coatability: Multi-point rear-ventilated profile guarantees perfect distribution of the colour

Technical information

Uf value of frame (≥)0.83 W/(m²·K)
Min. face width50 mm
Max. glass/panel thickness70 mm
Max. weight1800 kg
Surface finishesRAL, Powder, Paint
Air permeabilityAE
WatertightnessRE 1200
Impact resistanceClass 5
Burglar resistanceUp to RC3
Suitable for safety barrier loadingYes
Max. face width60 mm
Min.-max. face width50…60 mm
Min. glass/panel thickness6 mm
Min.-max. glass/panel thickness6…70 mm
Max. glass/infill weight1800 kg
Installation angle0-15°
Polygon façade angle15°
Drainage levels2
Wind load resistance2.0 [kN/m²]
Sun shading attachmentYes
Security systemYes
CE markingYes
StandardsDIN EN 1627, DIN EN 13830
Building authority approvalYes


Façade Systems – VISS Basic

View onlineDownload

Order and fabrication manual – VISS RC

View onlineDownload

Architecture in steel and glass

View onlineDownload

Specification texts

Independently supported, thermally insulated mullion/transom design for single and multi-storey façades or sloping roof constructions, with options for floor plans which are angled inwards or outwards

Design features:

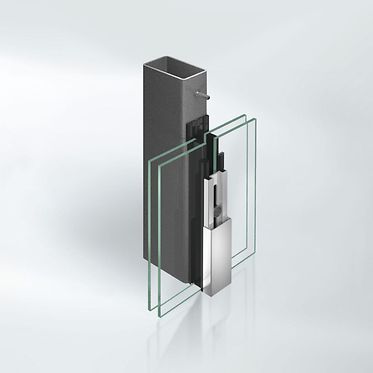

The load-bearing structure of the façade construction consists of a steel or stainless steel substructure conforming to structural requirements. The load-bearing profiles are on the room side. The transoms are welded to the mullions or are attached to them using special connecting spigots. The glass weight load is transferred via stainless steel bolts (material 1.4301) which are welded / screwed tightly to the substructure.
External cover cap profiles in aluminium / stainless steel, face width 50/60 mm, with various depths and contours.

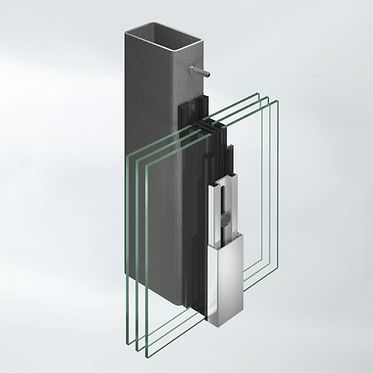

Glazing/panel thicknesses up to 70 mm may be used. All glazing, even in the insert units, lies in the same plane.

All glazing and/or panels are sealed in using EPDM weatherstrip profiles. The inner weatherstrips have a visible height of 6 mm and form the drainage level of the system. Different infill unit thicknesses are offset by variable system weatherstrips. The weatherstrip joints at cruciform, T and corner joints must be sealed carefully using butyl sealing strips.

The top pane edge seal is covered by a tab, which is vulcanised to the horizontal weatherstrip. Controlled drainage of the glazing rebate is achieved thanks to the overlap of the horizontal and vertical weatherstrips. The rebate base is ventilated and the vapour pressure of the glazing rebate is equalised to the outside in a concealed manner, field by field, by means of deflector blocks in the transom area below the outer cover profile.
The pressure plates are connected to the load-bearing structure using stainless steel screws, centring washers and anchor bolts.

Profile face widths, outside:
Mullion, transom 50/60 mm

Load-bearing profiles (in accordance with structural requirements)
Mullion ??? mm
Transom ??? mm
Transom base point and
intermediate floor attachment ??? mm
Cover cap (mullion)
(See architect folder for types) 18 mm
Cover cap (transom)
(See architect folder for types) 12 mm
The independently supported façade construction can be combined with standard façade constructions.
